Specifications
Specifications
Documents
- 23401 - Whisper Lift® II PRO Advanced Owners Manual - for lifts purchased before 1/31/2024
- 23401 - Whisper Lift® II PRO Wifi Advanced Owners Manual - for lifts purchased after 2/1/2024
- 23401 - Whisper Lift® II PRO Swivel Bracket Owners Manual
- 23401 - Whisper Lift® II PRO Advanced Dimensional Drawing - for lifts purchased before 1/31/2024
- 23401 - Whisper Lift® II PRO Advanced Dimensional Drawing - for lifts purchased after 2/1/2024
Support Documents
Specifications
- Lift raises quickly to the full height of 68.5 inches in less than 30 seconds
- Whisper Lift® fully depressed measures 32 inches H x 10 inches W x 7 inches D (Including TV mount brackets, does not include TV depth)
- Max lift weight capacity: 100 lbs
- Durable Steel Construction with 24 V Motor makes operation quiet and reliable
- Single actuator in an enclosed steel casing reduces wear and tear, enhances safe operation, and keeps the lift clean and free of dirt and debris
- Modular design allows for internal components to be easily replaced in just minutes
- Universal Quick Connect system for mounting TV to lift is easy to use and install
- Hardware kit includes all necessary bolts and screws and is compatible with most flat panel TV in the market today
- Includes wireless 1 RF remote control and a wired handset control
- RS232 for use with automated systems
- IR sensor for pairing with universal remote controls
- Ability to set lift extended height, so the lift stops at the same spot every time
- Ability to set lift retracted height, so that lower height of the lift can be set
- Pressure Sensing Capability- Safety stop and reverse for when the lift is running up or down to prevent damage or injury.
- Supports TVs with VESA mounting patterns up to 600mm wide by 400mm high
Unit Dimensions
- Lift Dimensions: 32 inches H x 7 inches D
- Unit Weight: 50lbs
- Shipping Dimensions:
- Box Dimensions: 34 inches L x 14 inches W x 9 inches D
- Shipping Weight: 55lbs

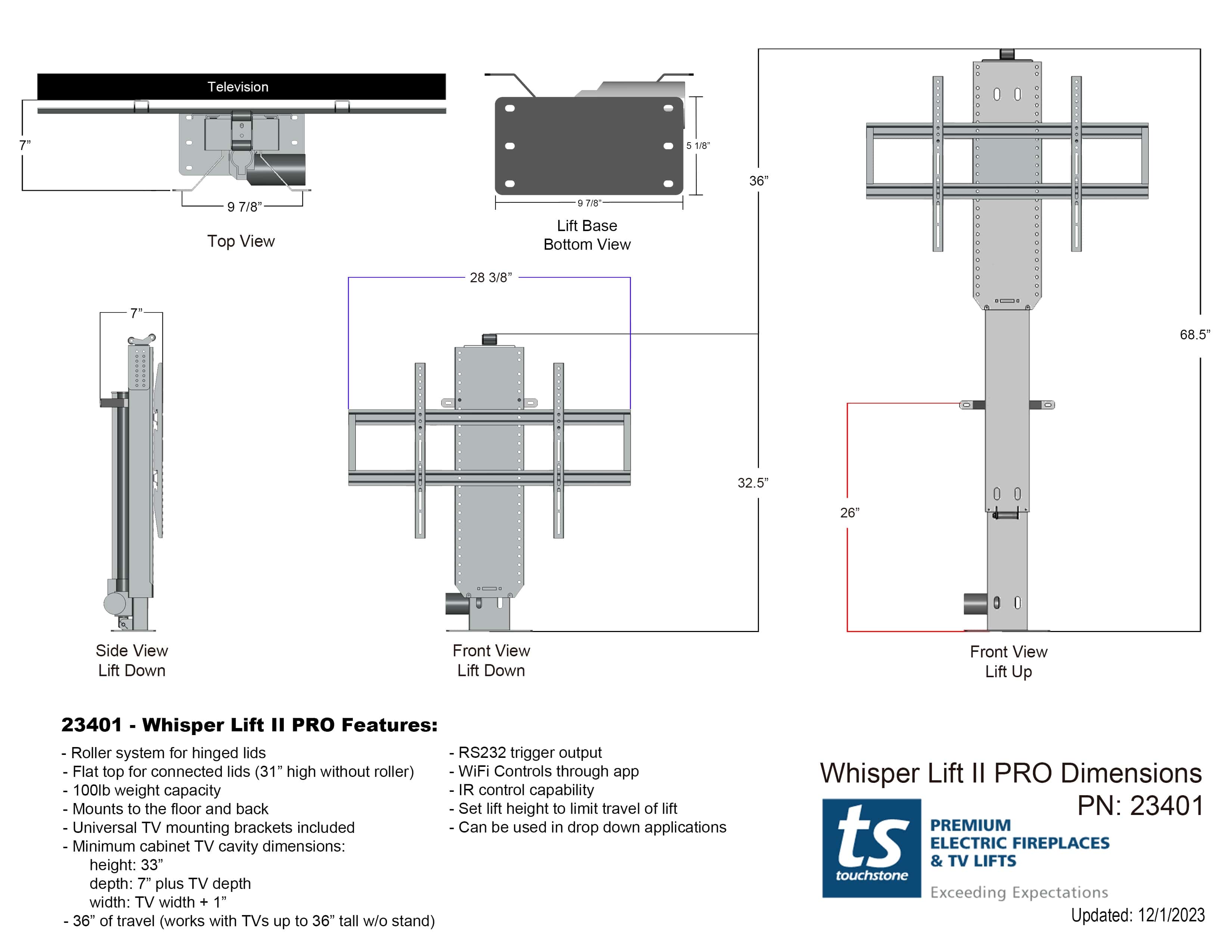

Dimensional Drawing
Customer Reviews
4.8 Based on 105 Reviews
Customer Photos
- Reviews
- Questions
Filter Reviews:
GS
07/15/2024
Greg S.
CanadaGreat lift for a fireplace TV
We wanted a TV in our new home where the fireplace was, but the 50,000 BTU heat would have melted the TV. The TS product was the best and least expensive method for raising and lowering the TV. We wet the mechanism back into the fireplace enclosure so that the TV would not stick out as far. The roller bracket was removed and replaced with a custom bracket for the center speaker of the surround sound system (about $100). Could not be happier.
RI
02/29/2024
Ray I.
United States23 401 Pro advanced lift mechanism
I love it! It works so good I attached it to the ceiling, by asking your technicians because I was a little confused about turning it upside down. But I can’t tell I had a little problem pairing it with the remote control. But once I figured down was up and up was down, they paired perfectly. I love it what a great product. Thank you so much for all your help and your staff is unbelievably helpful from your customer service to your technicians to all your managers. Everybody was so willing to help me and had a lot of patience for all the questions I was asking and they got back to me in really great time and they guided me through everything. You have a wonderful staff and a wonderful product. Thank you so much for your help and your product Ray Ibelli. ��
JL
12/14/2023
Jeff L.
United StatesQuality
This lift is very well built. There is nothing that is flimsy or cheap. Quite operation as expected. Very easy to mount and install. Wish I could work it with my phone. I expect many years of service from this quality equipment.
MR
12/09/2023
Mike R.
United StatesWorks exactly as described and support was great
I bought this lift to replace my Bungalow cabinet's lift, which died after 13 years of use. It isn't an exact replacement: it is lighter and doesn't use the same screw points as the old one does, but, because of the lower weight, it was easier to move this into place than to remove the older one. Operation is effortless and there is little noise from the lift mechanism. It still definitely is a two person job, though, so, if you are old like I am, be sure to have a younger, stronger person around to take the laboring oar. I want to give a shout out to Touchstone tech support. Both before and after my purchase, they were consistently helpful. I called on them to help me choose the right replacement lift, to learn how to remove the TV stuck in the cabinet with the dead older lift, and to assist in the installation where the instructions weren't entirely clear. You can reach a live expert on the phone quickly. That alone is reason to recommend this product and company.
M
12/07/2023
Michael
United StatesEasy install, quiet unit
