Whisper Lift II 23501 PRO Advanced Swivel Lift Mechanism for 65 Inch Flat screen TVs (36 Inch travel)

Features

• Can hold TVs up to 65 lbs.
• Alexa® & Google Home® compatible
• Durable steel construction
• Quiet 24V motor lifts TV up to 68.5 inches
• Swivel feature for expanded viewing area in any room
• Lift height memory for locking in that perfect viewing angle
• Built-in IR sensor for pairing with universal remotes
• Optional Add-On Component Shelf
• A TV Lift Mechanism that outperforms other lifts twice its price!

Overview

Touchstone's patented Whisper Lift® II Pro Advanced brings all the reliability and value of the industry leading Whisper Lift® II TV Lift Mechanism to a lift designed for the pro-user. These advanced features include lift height memory, an IR sensor for universal remotes, and a manual 60 degree swivel. The Whisper Lift® II operates by using a single piston actuator in an enclosed system for completely safe operation with virtually zero wear and tear. The steel external casing of the lift provides added protection for the lift internal parts, which keeps it clean and free of dirt and any debris. Don't be confused by more expensive TV lift mechanism claiming to have more a better lift based on the price they are charging. The Whisper Lift® II is durable, quiet and reliable.

Like the standard Whisper Lift® II, the PRO Advanced with Swivel has a stable and steady steel body and a quiet 24v motor for raising flat screens televisions up to 75 pounds. The lift measures 32.5 inches H x 10 inches W x 9 inches D (including brackets that connect to back of TV), lifts to a full height of 68.5 inches in under 30 seconds and is designed to fit flat screen TV's up to 65 inches. Touchstone's Universal Quick Connect mounting system allows you to install any flat screen TV in minutes, and comes with a universal hardware kit to accommodate most TV brands.

Lift Height Memory

The PRO Advanced with Swivel features Touchstone's innovated motor systems which lets you program and save your favorite position for your TV. This can be based on your viewing angle in bed or from you favorite chair, or the position of your components or soundbar on your component shelf.

IR Sensor for Universal Remotes

One of the most requested features in the original Whisper Lift® II is IR remote support. The built-in IR sensor will let you use your universal remote to control the lift height of your TV, so no more requirement for a second remote for your TV lift.

Swivel System

One of the most requested features on the original Whisper Lift® II, the swivel feature lets you view your flat screen in a Touchstone™ lift from more angles in our bedroom, living room or family room. Do you have a sitting area in your bedroom? Well you can now turn your TV towards that sitting area. Touchstone's swivel also has a safety feature, where the lift will not go down unless the TV is back in the "home" position".

Optional Add-On Component Shelf

Upgrade your TV Lift with the optional Add-On Component Shelf. The shelf attaches to the TV Lift Mechanism directly below your TV and lifts/lowers along with your TV. With the TV Lift Mechanism in the middle, the right and left sides of the shelf each provide a 17 1/4" W x 9" D wide area for your cable box, soundbar, gaming systems and other essentials.

Use this versatile TV lift mechanism as a dropdown TV lift, pop up TV lift, floor mount TV lift, ceiling mount TV lift or outside outdoor TV lift.

Documents

• 23401 - Whisper Lift® II PRO TV Lift Owners Manual
• 23502 - Whisper Lift® II PRO Advanced Swivel Bracket Owners Manual
• 23501 - Whisper Lift® II PRO Advanced Dimensional Drawing

Support Documents

• RF Wireless Remote Control Pairing Instructions

Specifications

• Lift raises quickly to the full height of 68.5 inches in less than 30 seconds
• Whisper Lift® PRO Advanced Swivel TV Lift fully depressed measures 32.5 inches H x 10 inches W x 9 inches D (Including TV mount brackets, does not include TV depth)
• Weight limits:
• Max TV Weight: 65lbs
• Max Total Lift Load: 100lbs (includes the TV, cabinet lid, mounting shelf, soundbars, and any other attached accessories)
• Minimum Operating Temperature: 50° F (10° C)
• Maximum Operating Temperature: 104° F (40° C)
• Durable Steel Construction with 24 V Motor makes operation quiet and reliable
• Single actuator in an enclosed steel casing reduces wear and tear, enhances safe operation, and keeps the lift clean and free of dirt and debris
• Modular design allows for internal components to be easily replaced in just minutes
• Universal Quick Connect system for mounting TV to lift is easy to use and install
• Hardware kit includes all necessary bolts and screws and is compatible with most flat panel TV in the market today
• Includes wireless 1 RF remote control and a wired handset control
• IR sensor for pairing with universal remote controls
• Manual swivel bracket with locking TV brackets.
• Up to 60-degrees of swivel (depending on TV size)
• Ability to set lift height, so the lift stops at the same spot every time

Dimensions

• Lift Dimensions: 32.5 inches H x 9 inches D
• Unit Weight: 55lbs

Shipping Dimensions

• Lift Box Dimensions: 38 inches L x 13 inches W x 9 inches D
• Lift Box Shipping Weight: 55lbs
• Swivel Bracket Box Dimensions: 28 inches L x 12 inches W x 6 inches D
• Swivel Bracket Shipping Weight: 16lbs

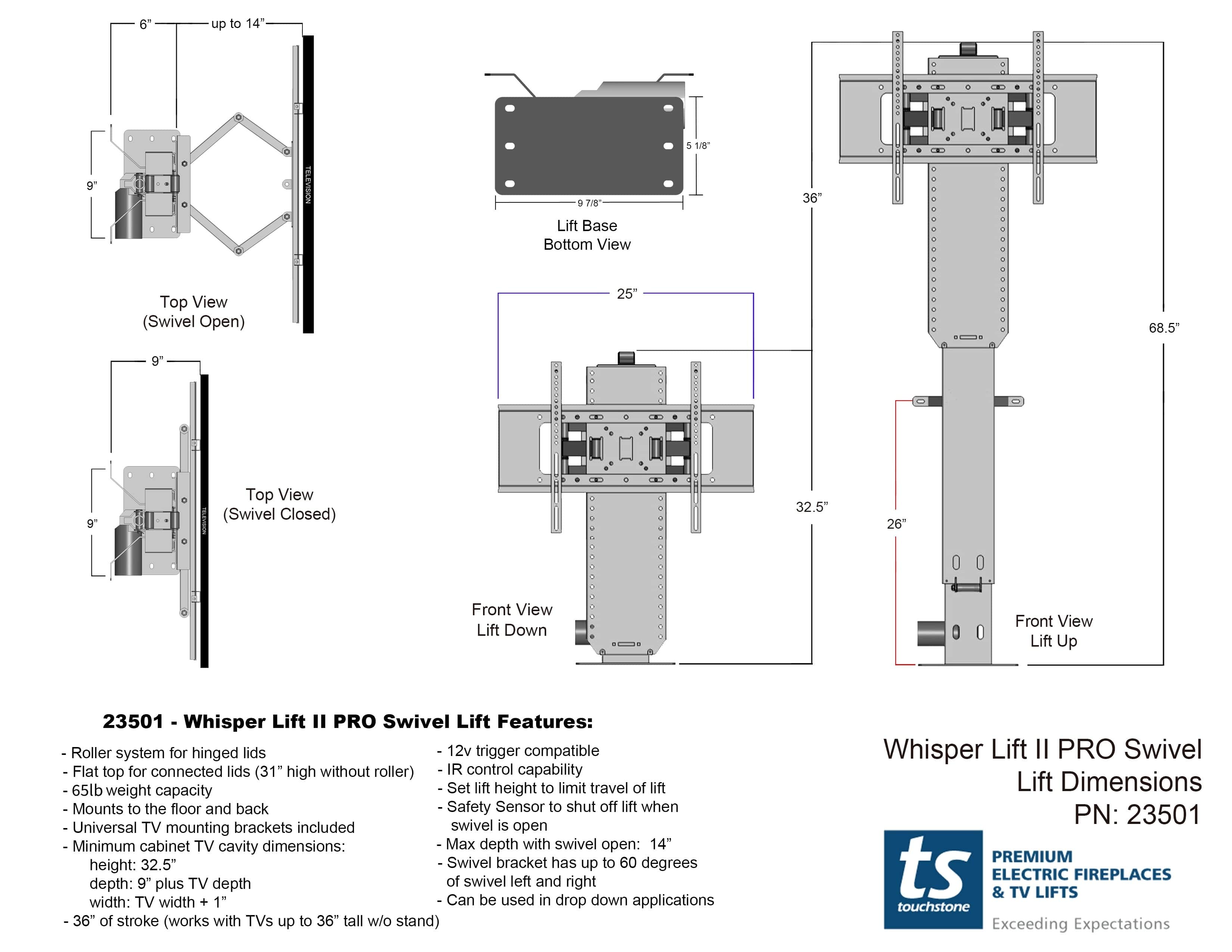

Dimensional Drawing
