23602 Whisper Lift PRO XL Swivel Lift Mechanism for 85 Inch Flat screen TVs

1 review

Add-On Component Shelf (Lifts Cable/Satellite/WiFi Video with lift):

Flat-Top Lid option (Lift ships with roller top standard):

Drop Down Bracket (for inverted lift applications):

Sale price $1,499.00
Regular price $1,820.00

The Whisper Lift® PRO XL Swivel holds TVs up to 85 inches, features a 60 degree swivel, an IR sensor, lift height memory, a quiet lift that raises TVs to 88 1/4 inches and a 5 year warranty.
SKU: 23602

Product Details Expand for more details

  • 48 inches of travel
  • Alexa® & Google Home® compatible
  • Durable steel construction securely hold your 85 inch flat screen
  • Quiet and powerful 24V motor
  • Utilizes a single piston actuator for optimal reliability
  • Built-in IR sensor for pairing with universal remotes
  • Lift height memory feature remembers your preferred viewing height
  • Includes universal hardware kit and quick connect system for easy installation
  • TV Max Weight: TV must be 65 lbs or less when using the add on swivel bracket

Overview

The patented Whisper Lift® PRO XL TV Lift is Touchstone's advanced lift, constructed from durable steel for unmatched strength and stability and is powered by our whisper quiet 24V motor. The Whisper Lift® PRO XL TV Lift is equipped to provide the power and durability you need in your TV lift mechanism, while providing advanced features like IR capability, and ability to set the lift height.

The Whisper Lift® PRO XL TV Lift measures 40 1/2 inches H x 10 inches W x 9 inches D (including brackets that connect to back of TV) and lifts to a full height of 88 1/4 inches in under a minute. That is 48 inches of vertical travel in less than 60 seconds. Its durable steel construction is designed to fit and safely secure flat screen TV's up to 85 inches.

Wi-Fi Enabled, Compatible with Amazon Alexa® and Google Home®

Control your TV lift and memory heights from your lounge chair using the included remote control or Touchstone’s Smart mobile app. Connect it to compatible smart home devices through the app for added convenience.

Touchstone's Universal Quick Connect system makes it easy to install any flat screen TV in just minutes. A universal hardware kit comes with each TV lift kit which includes bolts and machine screws to accommodate most brands and models of flat screen TVs. The Whisper Lift® PRO XL TV Lift features a unique mounting mechanism which fastens your flat screen TV to the Quick Connect Bracket for guaranteed safety and security. While most Whisper Lift® are installed within our Touchstone® TV Lift Cabinets to lift your flat screen upward, these lifts can also be mounted to your ceiling or wall and drop your flat screen downward.

The Whisper Lift® PRO XL TV Lift operates by using a single piston actuator in an enclosed system for completely safe operation with virtually zero wear and tear. The steel external casing of the lift provides added protection for the lift internal parts, which keeps it clean and free of dirt and any debris.

The Whisper Lift® PRO XL TV Lift is the highest quality television lift on the market. Our customers adore this product. It's the most durable, quiet, and reliable lift mechanism out there despite its low price. You may find other more expensive lifts from other brands, but do not mistake high mark ups for high quality: the Touchstone® Whisper Lift® PRO XL TV Lift is the top of the line TV lift. This lift's high quality makes it extremely reliable, as well. You will have to replace your flat screen television long before you ever have to replace this lift: the Whisper Lift® PRO XL TV Lift is built to last.

Swivel System

One of the most requested features on the Whisper Lift® series, the swivel feature lets you view your flat screen in a Touchstone® lift from more angles in your bedroom, living room or family room. Do you have a sitting area in your bedroom? Well you can now turn your TV towards that sitting area. Touchstone's swivel also has a safety feature, where the lift will not go down unless the TV is back in the "home" position".

Optional Add-On Component Shelf

Optionally, you can upgrade the Whisper Lift® PRO XL TV Lift with our add-on component shelf to store your cable box, game system, DVD player, and other components.

The add-on component shelf attaches to the TV lift system directly below the flat screen TV and raises or lowers into the cabinet along with you TV when remotely activated. The shelf provides an area of 16 inches W x 9 inches D on both the left and right side to fit a wide variety of multimedia components. Just select the add-on component shelf option when placing your order.

Use this versatile TV lift mechanism as a dropdown TV lift, pop up TV lift, floor mount TV lift, ceiling mount TV lift or outside outdoor TV lift.

Specifications Expand for more details

Documents

Specifications

  • Lift raises quickly to the full height of 88 1/4 inches
  • Whisper Lift® fully depressed measures 470 1/2inches H x 10 inches W x 9 inches D (Including TV mount brackets, does not include TV depth)
  • Holds televisions up to 85 inches wide
  • 48 inches of travel.
  • Durable Steel Construction with 24 V Motor makes operation quiet and reliable
  • Single actuator in an enclosed steel casing reduces wear and tear, enhances safe operation, and keeps the lift clean and free of dirt and debris
  • Modular design allows for internal components to be easily replaced in just minutes
  • Universal Quick Connect system for mounting TV to lift is easy to use and install
  • Hardware kit includes all necessary bolts and screws and is compatible with most flat panel TV in the market today
  • Includes wireless 1 RF remote control and a wired handset control
  • IR sensor for pairing with universal remote controls
  • Ability to set lift height, so the lift stops at the same spot every time
  • Supports TVs with VESA mounting patterns up to 600mm wide by 400mm high

Unit Dimensions

  • Lift Dimensions: 40 1/2 inches H x 9 inches D (with Roller)
  • Unit Weight: 67lbs
  • Weight Capacity: 175lbs (65lbs TV max weight)
  • Shipping Dimensions:
  • Lift Box Dimensions: 51 inches L x 13 inches W x 9 inches D
  • Lift Shipping Weight: 77lbs
  • Swivel Bracket Box Dimensions: 28 inches L x 12 inches W x 6 inches D
  • Lift Box Shipping Weight: 16lbs

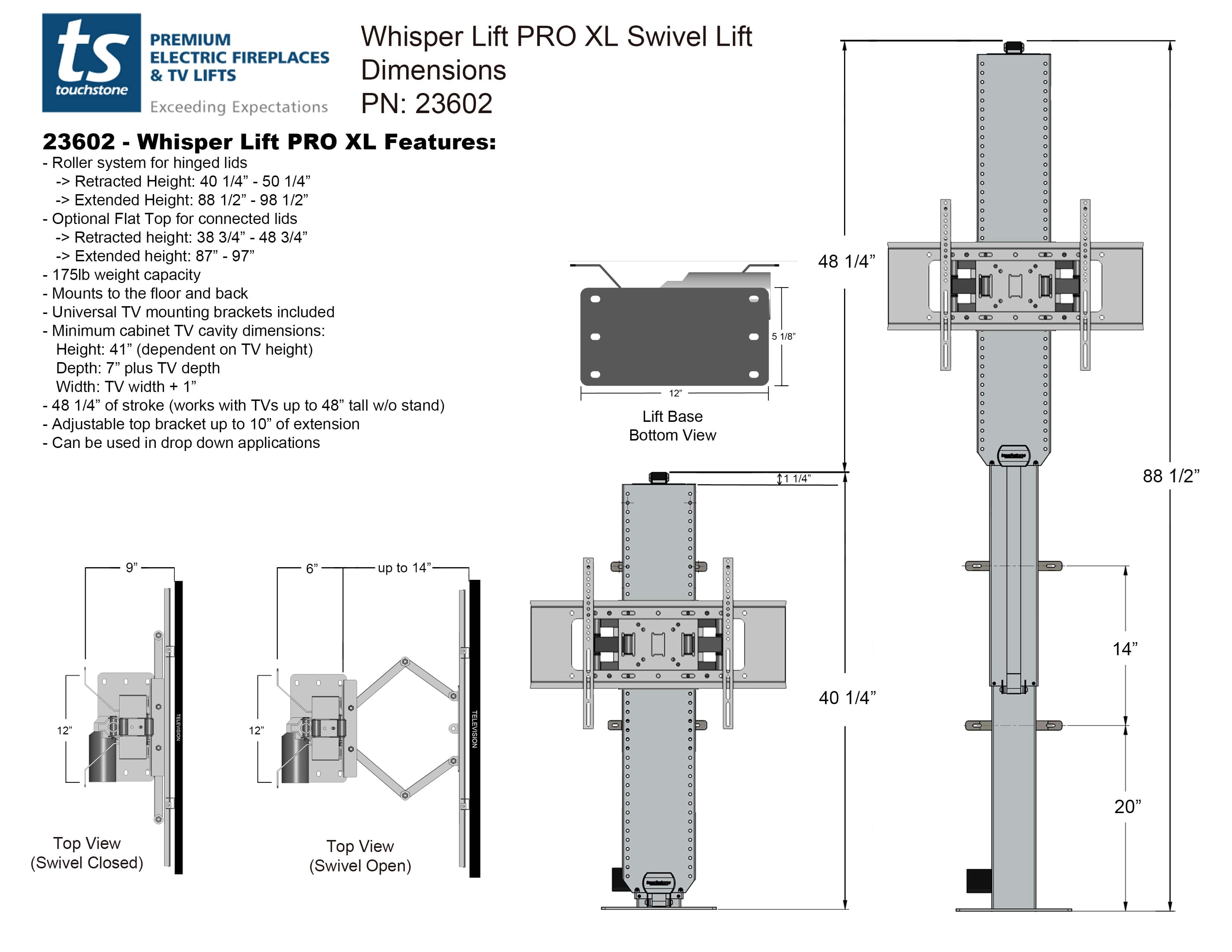

Dimensional Drawing

23602 Sec Sheet
