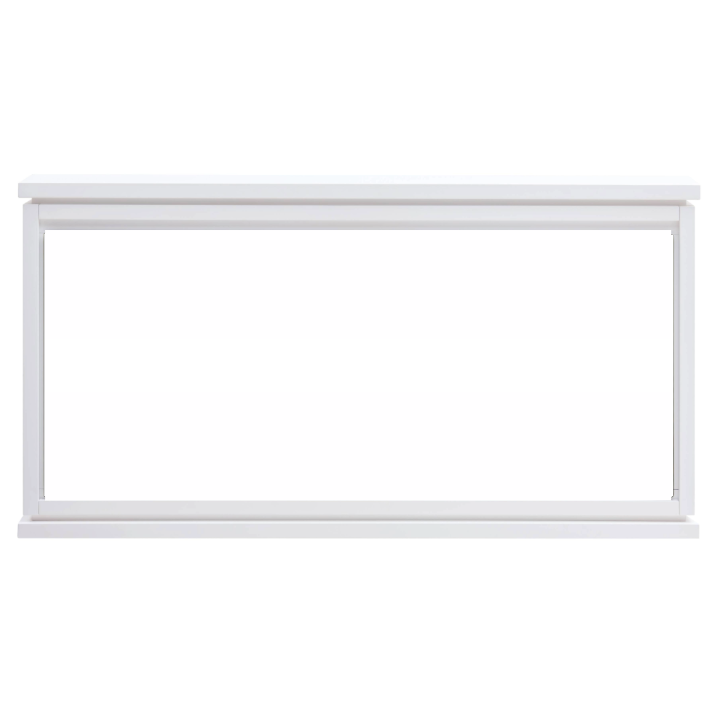

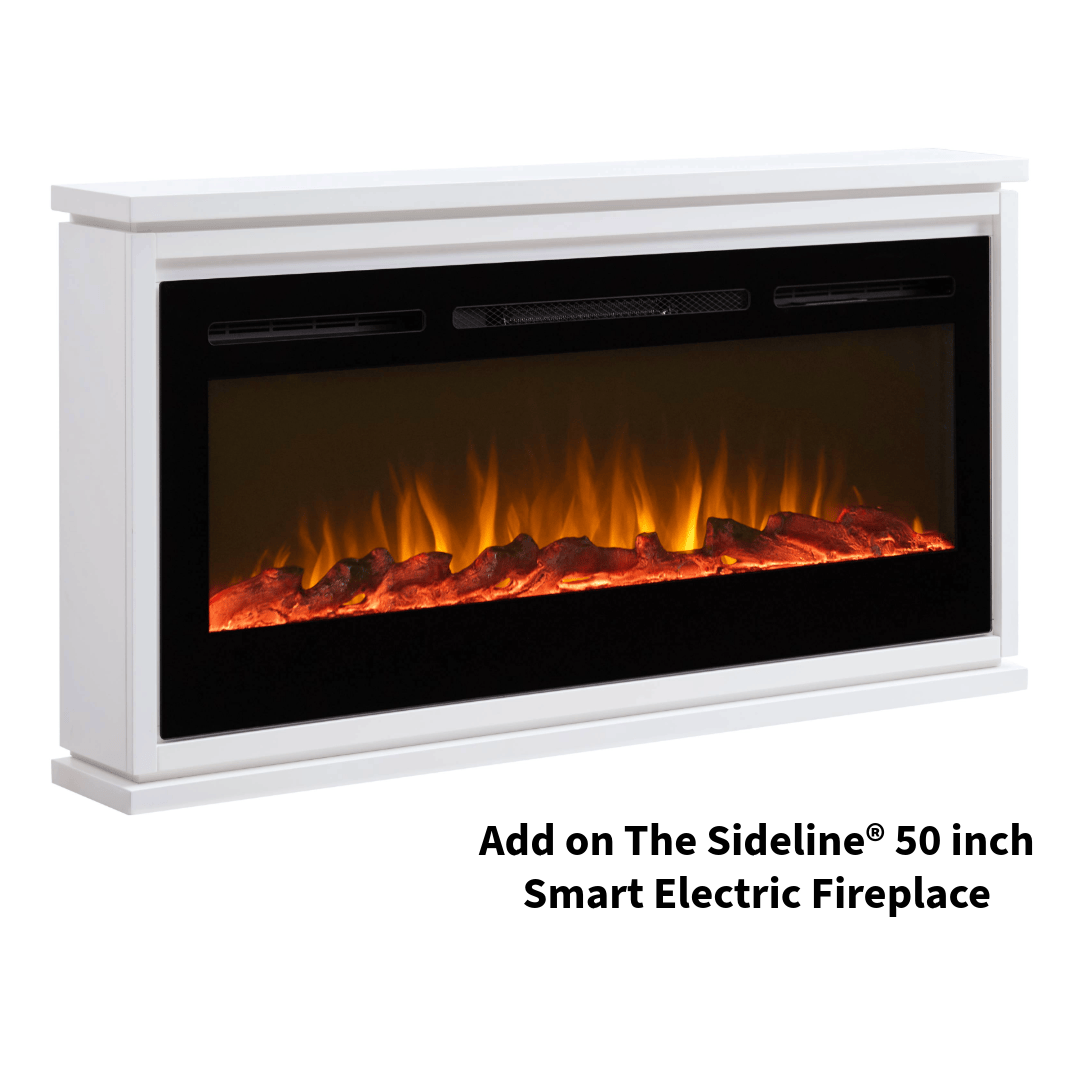

Encase Surround Mantel for The Sideline 50 inch Smart Electric Fireplace

Overview

• Freestanding or wall-mount landscape mantel, plus the Smart home features of the top rated Sideline WiFi-enabled fireplace.
• Creates an instant focal point in any room.
• Built for The Sideline 50-inch Smart Electric Fireplace.

Perfect addition if you currently own the Touchstone Sideline 50-inch Smart Electric Fireplace, SKU number 80004, and have it wall-mounted. The 90017 Encase Surround Mantel is easy to add to your living room, bedroom or home office, for a more built-in look.

The elegant white freestanding or wall-mount mantel features classic molding and blends with any home style from modern farmhouse to coastal cottage. This electric fireplace and surround mantel is an environmentally friendly option to a traditional wood-burning fireplace, ensuring a clean and odorless ambiance.

Easy Set Up

1. Assemble the mantel using the included easy-to-follow instructions.
2. Insert and secure the included electric fireplace with included hardware.
3. Place the unit on the floor or mount it to the wall using the included mounting hardware.

4. Plug the fireplace into a standard 120v outlet and enjoy!

Smart Fireplace Features

The Sideline 50-inch Smart Electric Fireplace sets this surround mantel fireplace apart from competitors. From the top quality LED flame display to the Alexa and Google Home compatible technology, this Touchstone upgrade will add instant appeal to your home.

• 3 Flame color options and 5 level variable flame speed
• Pulsating 10-color ember bed
• WiFi App (Alexa and Google Certified)
• Thermostat with auto-off overheat protection
• Built-in timer mode for shut off in 30 minutes to 7.5 hours
• Remote control for heat and flame setting (batteries not included)
• Flames no heat - heat no flames capability

• Designed with front heating vent
• Includes log set and crystal set
• Slim frame that features a large fireplace viewing area with life-like LED flames that are unrivaled by competitors
• Supplemental heat up to 400 square feet (5,000 BTUs)
• Can be plugged in or hardwired 120V
• The fireplace and mantel are covered by a 1-year Warranty

Important Safety Information

• Secure the mantel to the wall using provided tip-over restraints.
• Do not place TV or other heavy objects on top of the mantel.
• For indoor use only.

The Sideline 50-Inch Smart Electric Fireplace (SKU 80004), purchased in 2016 or later, is compatible with this Encase Surround Mantel.

Fireplace Documents

• 80004 - Sideline 50 Inch Smart Electric Fireplace Wi-Fi Setup Guide
• 80004 - Sideline 50 Inch Smart Electric Fireplace Owners Manual

• 80004 - Sideline 50 Inch Smart Electric Fireplace Dimensional Drawing

Mantel Documents

• 90017 - Encase Fireplace Surround Mantel Installation Manual

• 90017 - Encase Fireplace Surround Mantel Dimensional Drawing

Mantel Specifications

• Product Dimensions: 54 3/8 inches wide x 7 3/4 inches deep x 28 5/8 inches high
• Shipping Dimensions: 60 inches wide x 11 inches deep x 8 inches high
• Fireplace Opening: 47 1/4 inches wide x 20 3/4 inches high
• Product Weight: 44 lbs.
• Shipping Weight: 49 lbs.
• Finish: White semi-gloss MDF
• Not for use with gas or traditional fireplaces.

Touchstone 80004 Fireplace Specifications

• Frame Color: Black
• Fireplace Dimensions: 50 3/8 inches wide x 21 1/2 inches high x 5 1/2 inches deep
• Firebox Dimensions: 46 7/8 inches wide x 20 1/4 inches high x 5 1/4 inches deep
• Rough Opening Dimensions: 47 1/8 inches wide x 20 1/2 inches high x 5 3/4 inches deep
• Shipping Carton Dimensions: 54 inches wide x 26 inches high x 9 inches deep
• Fire Dimensions: 45 inches wide x 12 inches tall
• Part number: 80004
• Heater type: Coil wire heater with blower
• Watts: 1,500

• BTU's: 5,000
• Room Coverage: 400 sq ft.
• Fireplace Weight: 59 pounds
• Shipping Weight: 62 pounds
• Voltage: 120v
• Amperes: 11 and up
