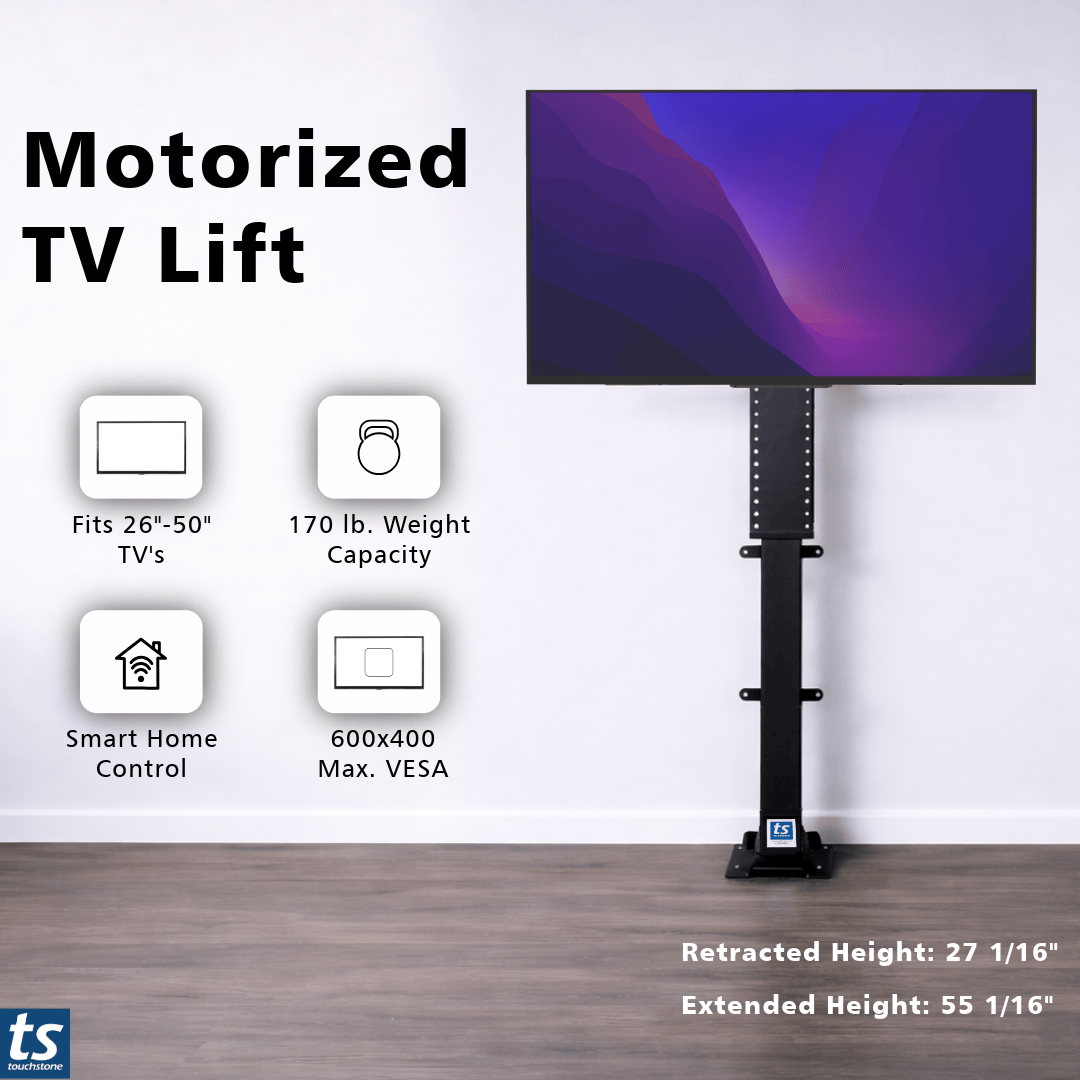

SRV Smart Wifi 32800 Pro TV Lift Mechanism for 50 Inch Flat screen TVs - Alexa® & Google Home® Compatible

8 reviews

Rolling Cart:

Roller Assembly for Hinged Lids (Adds 1 1/4" to Height):

Price $399.00

FOR 50-INCH TVS AND SMALLER. Fully extends to 55 inches high. RS232, 3 remotes (wired & wireless RF and IR), 5 year warranty. Optional add on wheeled base offers mobile rolling TV solution.
SKU: 32800
Product Details
  • Holds up to 170 lb.
  • Fits most 50-in. TVs and smaller (diagonal measure)
  • Alexa® & Google Home® compatible
  • Use our app to control the lift from your phone via Smart Wifi connection.
  • Soft start and stop for smooth operation
  • Safety stop and reverse for when the lift is running up or down to prevent damage or injury
  • Includes wired and wireless RF and IR remotes
  • RS232 Capability
  • Memory Set Height
  • 28 inches of vertical travel
  • Optional rolling cart for easy mobility
  • 5-year warranty

Overview

The SRV 2800 Pro by Touchstone offers advanced TV lift technology including RS232 capability and IR remote versatility at a value price. This slim profile motorized TV lift makes it easy to mount a flat screen TV inside of a cabinet or attach to the floor for a space saving, pop up TV solution.

RS232 Port For Home Theatre and Automation Connectivity

The RS232 port allows you to connect to advanced home theater systems and automation systems.

Alexa® & Google Home® Compatible

You can control your TV lift and memory heights direct from our app or via Alexa & Google Home voice commands.

IR Remote For Easy Pairing With Universal Remotes

The IR remote allows you to pair the SRV TV Lift Mechanism with a third party universal remote, so you can control your TV and lift mechanism with the same remote control.

Includes Flat Top Mount For Easy Flush Lid The flat top mount makes it easy to attach a lid for a clean, flush mount installation. Easily attach a matching wood or countertop to the flat top mount for a seamless custom built cabinet with a hidden TV inside. The included flat top lid mount is 17 3/4 x 4 5/16 inches.

Unique "C" Bracket For Perfect Height

The SRV Pro TV Lift includes Touchstone’s unique “C” bracket for effortless flat screen TV height adjustment. The “C” bracket gives you an extra 5 inches of additional height adjustment between the top of the lift and the counter or cabinet top. The wired remote has a visual display so you know precisely how high the lift is raised.

Extra Protection with Soft Start/Stop and Safety Stop

The soft start and stop feature ensures smooth operation as the lift raises or lowers. The safety stop automatically reverses direction when change in force is detected during the lifting or lowering process to protect users and equipment.

Smooth Operation, Built to Last

The heavy duty 1.5mm steel SRV Pro TV Lift with a 24v motor lifts up to 175 lb. Built for reliability, the SRV TV Lift includes a 5-year worry-free product warranty - the best warranty offered in this price range, compared to competitors.

Designed For 50-inch TVs and Smaller

The SRV 2800 Pro measures 27 1/8 inches H x 7 inches W x 7 inches D (including the brackets that connect to back of the TV) and lifts to a full height of 55 1/8 inches in seconds. Designed to fit flat screen televisions and monitors up to 50 inches (diagonal measurement). The SRV 2800 Pro has a lift capacity up to 175 lb.

Universal Quick Connect System

The SRV Pro TV Lift includes Touchstone's Universal Quick Connect system. This universal hardware kit makes it easy to install any flat screen TV in minutes. The Touchstone Universal Quick Connect System includes compatible bolts and machine screws to fit most TV brands and models. With the right hardware for your TV, the SRV Pro TV mounting bracket securely locks your TV in place.

Optional Rolling Cart Base Adds Mobility

The SRV Rolling Cart option adds a rolling cart base to the SRV Pro TV lift, creating a movable and adjustable TV stand for conference rooms, classrooms and offices. A sturdy, mobile base, the SRV Pro TV Lift's optional rolling cart features 360-degree swivel locking wheels, digital display wired remote and a one-piece stable base. Made with high quality, heavy duty 1.5mm steel, the SRV Rolling Cart has a clean finish and unmatched durability.

Ideal For Digital Presentations

The SRV TV Lift with Rolling Cart Base is ideal for use in a conference room, elevating a 26-50 inch diagonal size monitor or flat screen television to the perfect viewing height. When the presentation is finished, the mobile TV lift cart is easy to roll out of the way.

How the SRV Pro Compares to the Valueline TV Lift

Available exclusively at Amazon, the Touchstone Valueline 2800 TV Lift offers many of the same features as the SRV Pro 2800. In comparison, the SRV Pro Lift adds advanced technology including RS232 connectivity, IR technology and a longer 5-year warranty.

Specifications

Documents

Specifications

  • Lift raises to the full height of 55 1/8 inches
  • SRV 2800 Pro fully depressed measures 27 1/8 inches H x 7 inches W x 7 inches D (Including TV mount brackets, does not include TV depth)
  • Holds up to 170 lb.
  • Durable Steel Construction with 24 V Motor makes operation quiet and reliable
  • Universal Quick Connect system for mounting TV to lift is easy to use and install
  • Hardware kit includes all necessary bolts and screws and is compatible with most flat panel TV in the market today
  • Includes wireless RF and IR remote control and a wired handset control
  • Supports TVs with VESA mounting patterns up to 400mm wide by 400mm high
  • Safety stop while raising and lowering
  • Soft start and stop
  • RS232 Port
  • Lift not designed for drop down use

Dimensions

  • Lift Dimensions: 27 1/8 inches H x 7 inches D
  • Unit Weight: 30 lb.
  • Box Dimensions: 31 inches H x 11 inches W x 11 inches D
  • Shipping Weight: 55 lb.

Optional Add On SRV Rolling Cart Specifications:

  • Product weight: 22 lb.
  • Shipping weight: 25 lb.
  • Product Dimensions: 21.6 x 22.25 x 33.0 x 5.1 inches
