TechTeak® Outdoor Smart TV Lift Cabinet for TVs up to 65 inches - 70068

Product Highlights

• 100% Grade-A Fine sanded Plantation Teak Wood construction
• Weather-resistant materials and finish, designed for outdoor use
• Alexa® & Google Home® compatible
• Use our app to control the lift from your phone via Smart Wifi connection.
• 3-Door classic shiplap sealed design with quality outdoor hardware
• Features top-rated Touchstone SRV Pro Smart TV Lift Mechanism
• Protective internal teak box for lift electronics protection
• Flat-top lid design with gap-sealant and acrylic seal
• For flat screen televisions up to 65-inches
• Includes high quality, weather resistant cover

Overview:

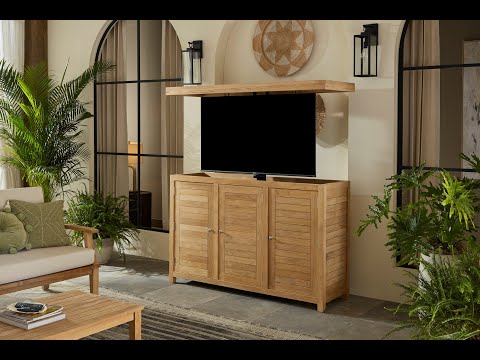

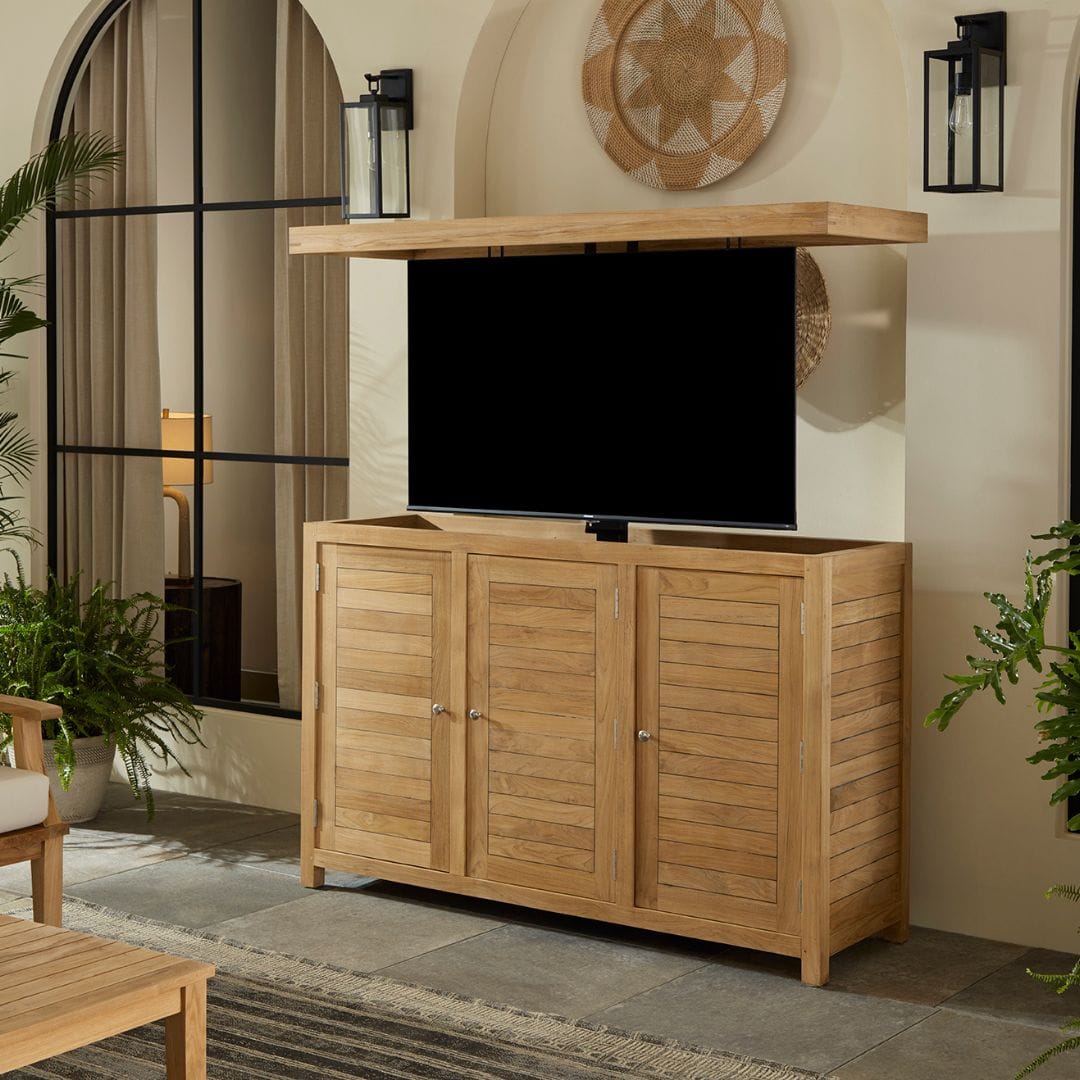

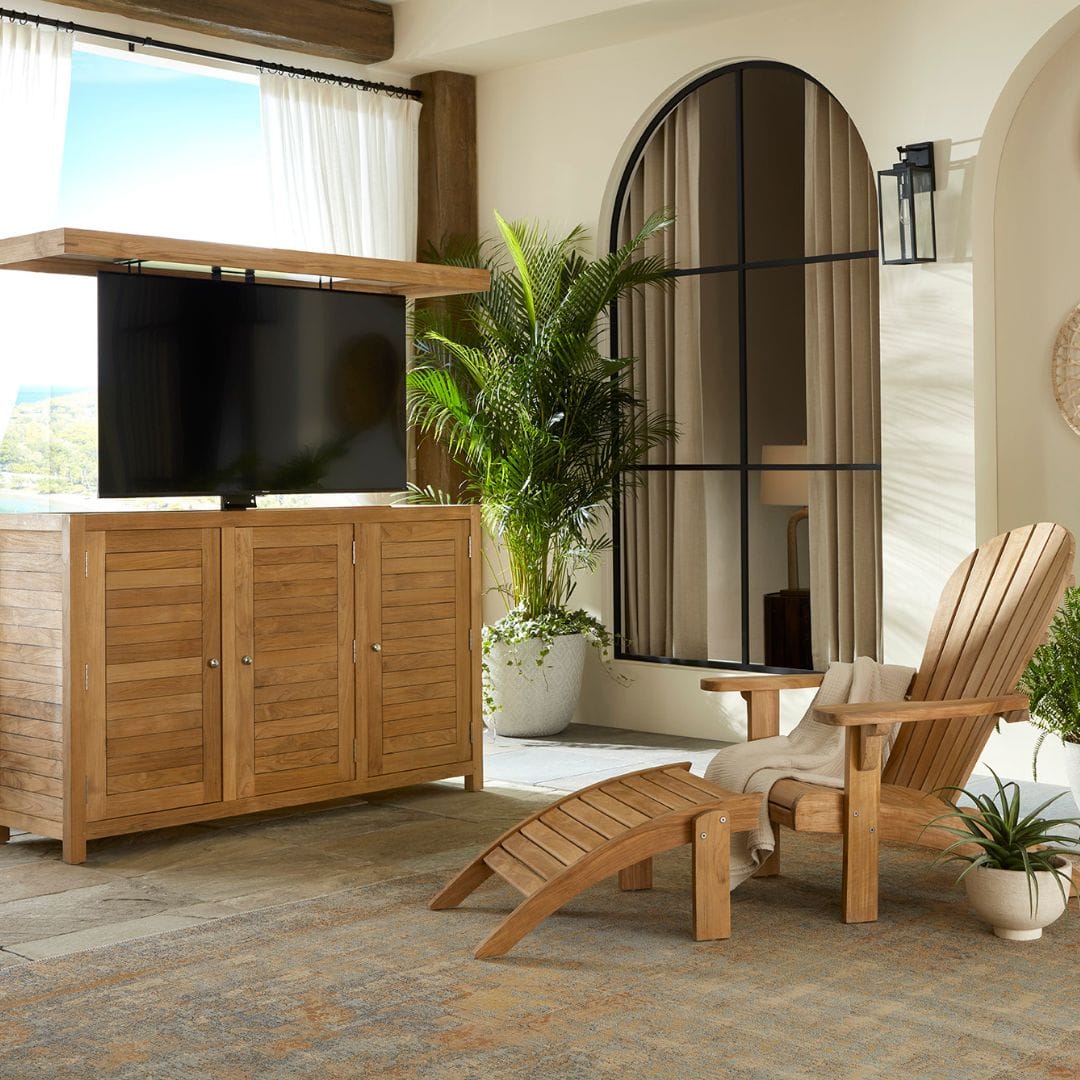

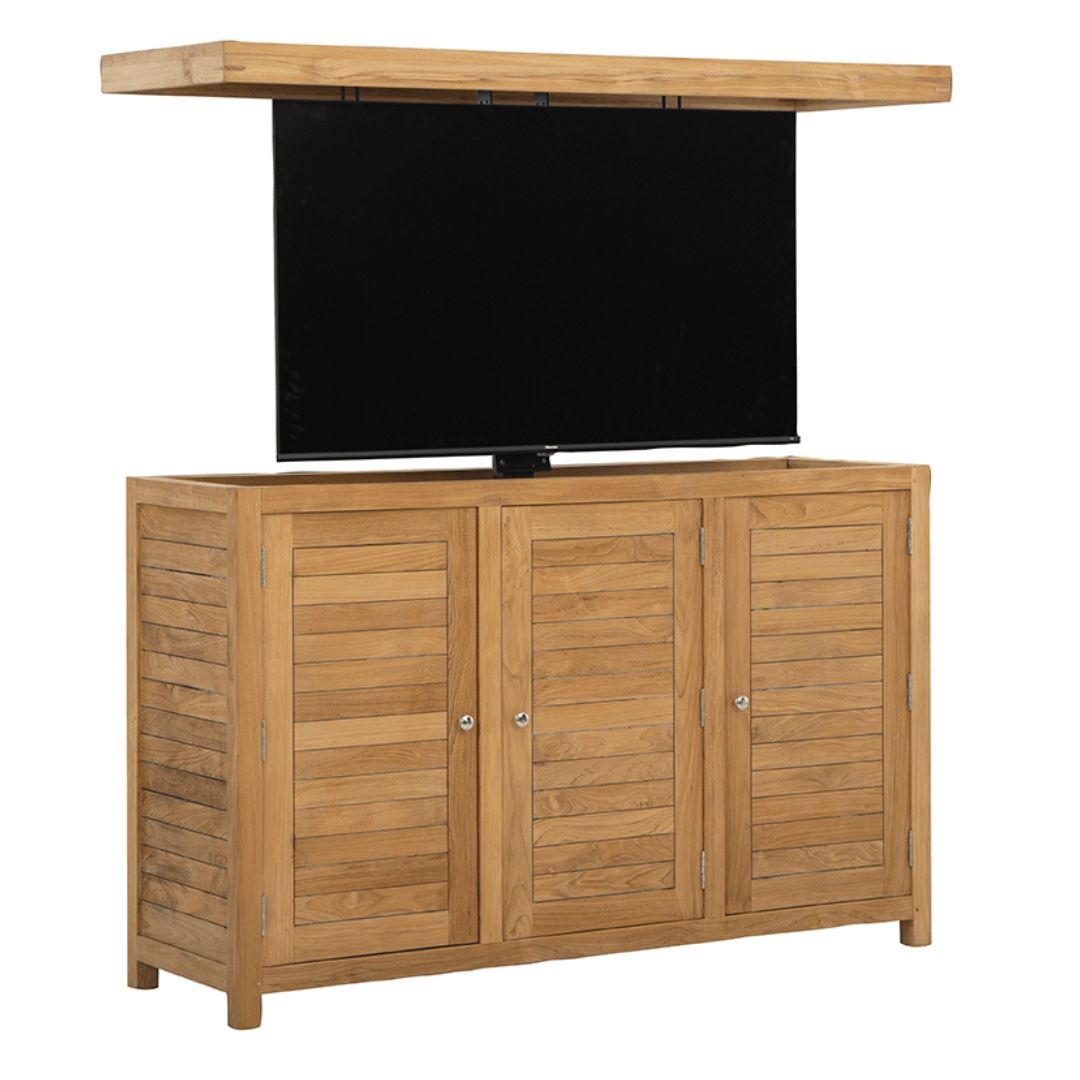

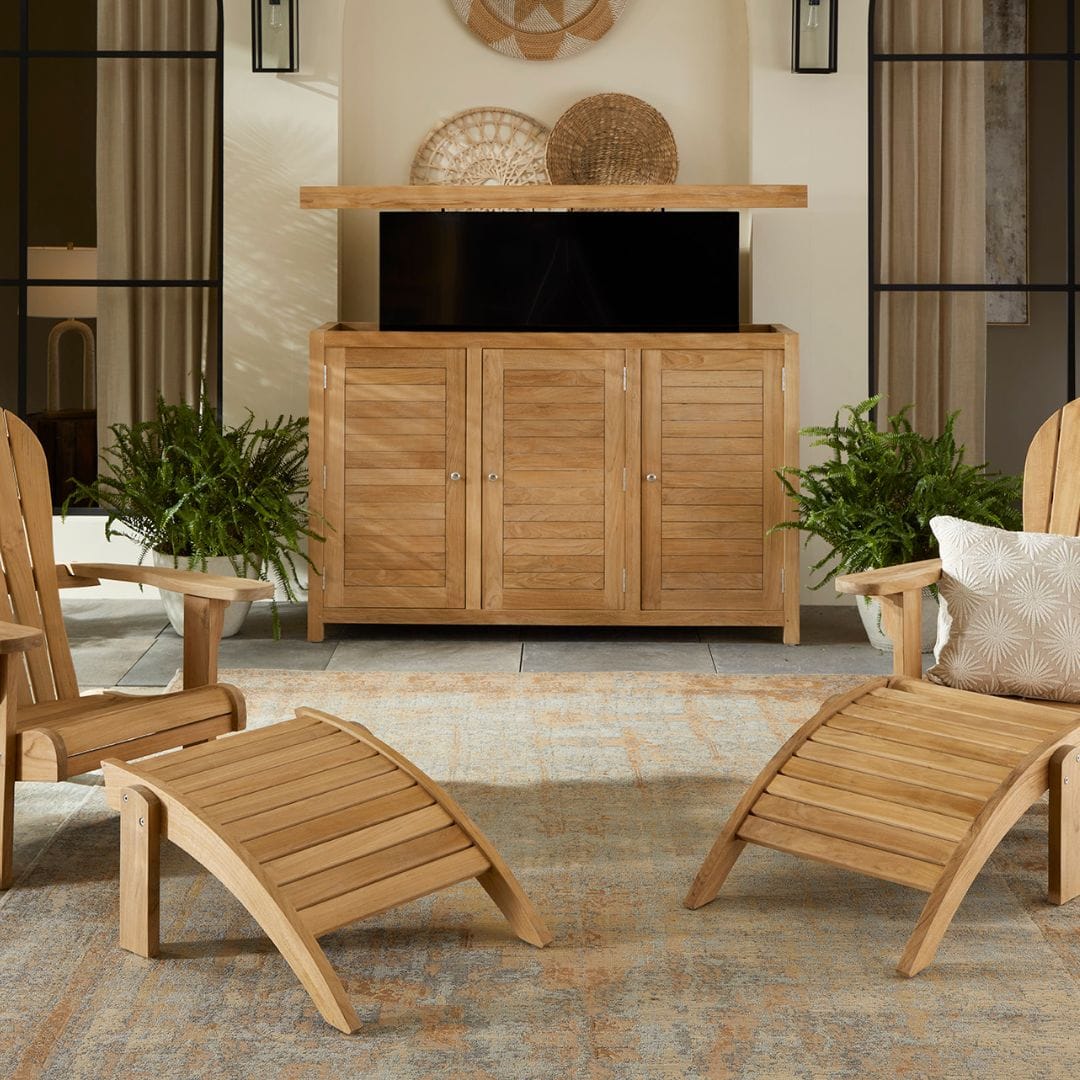

Relax and watch TV on your deck or patio with the Touchstone TechTeak 65-inch Outdoor TV Lift Cabinet. This Grade-A Plantation Teak Wood TV console protects your flat screen TV from the elements while making a huge design statement in your outdoor living space. A hidden, motorized Touchstone Smart TV lift raises and lowers the TV from the protective weather-resistant teak cabinet. Thoughtfully engineered with flat-top lid providing your TV protection from sun glare.

Weather-resistant Grade A Teak Furniture

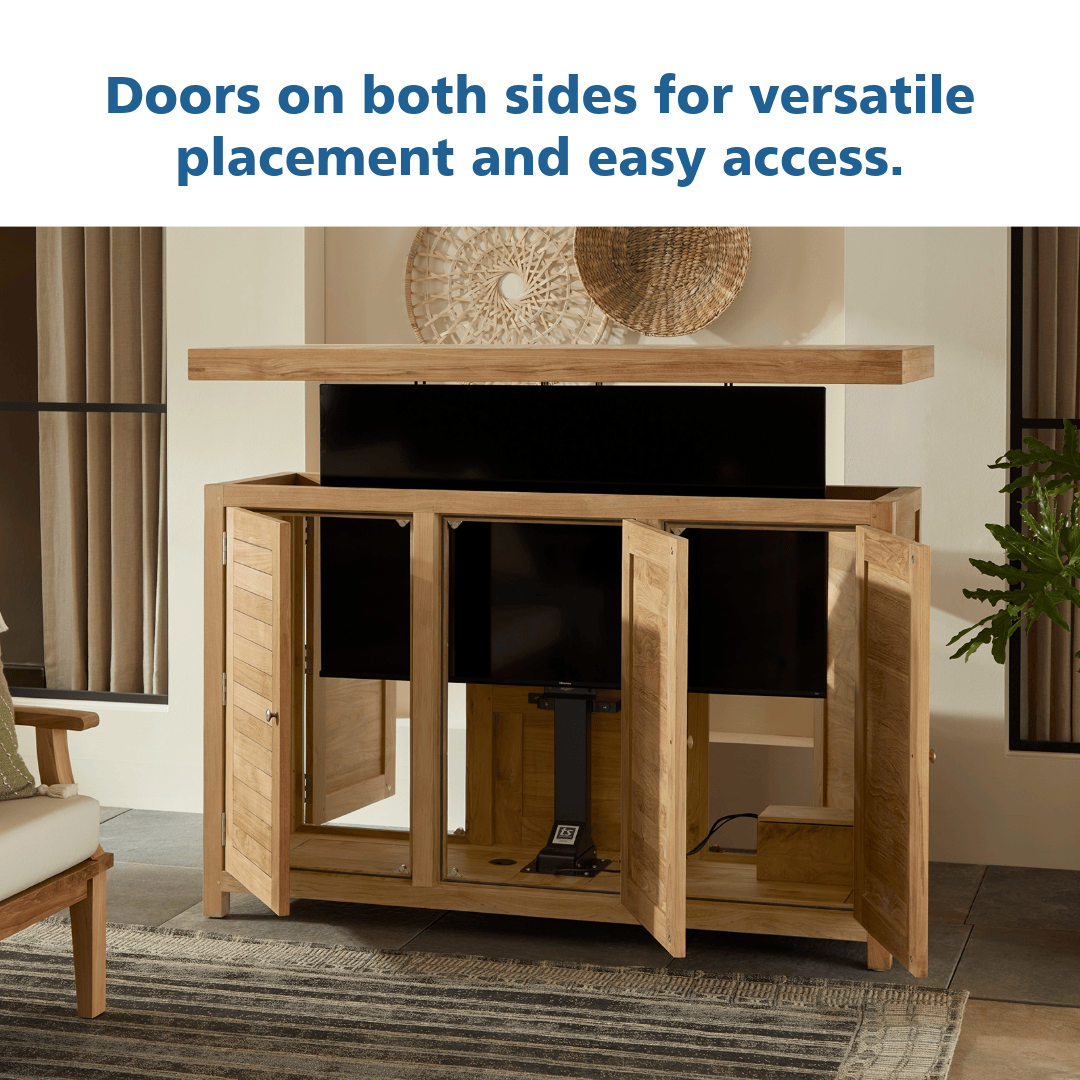

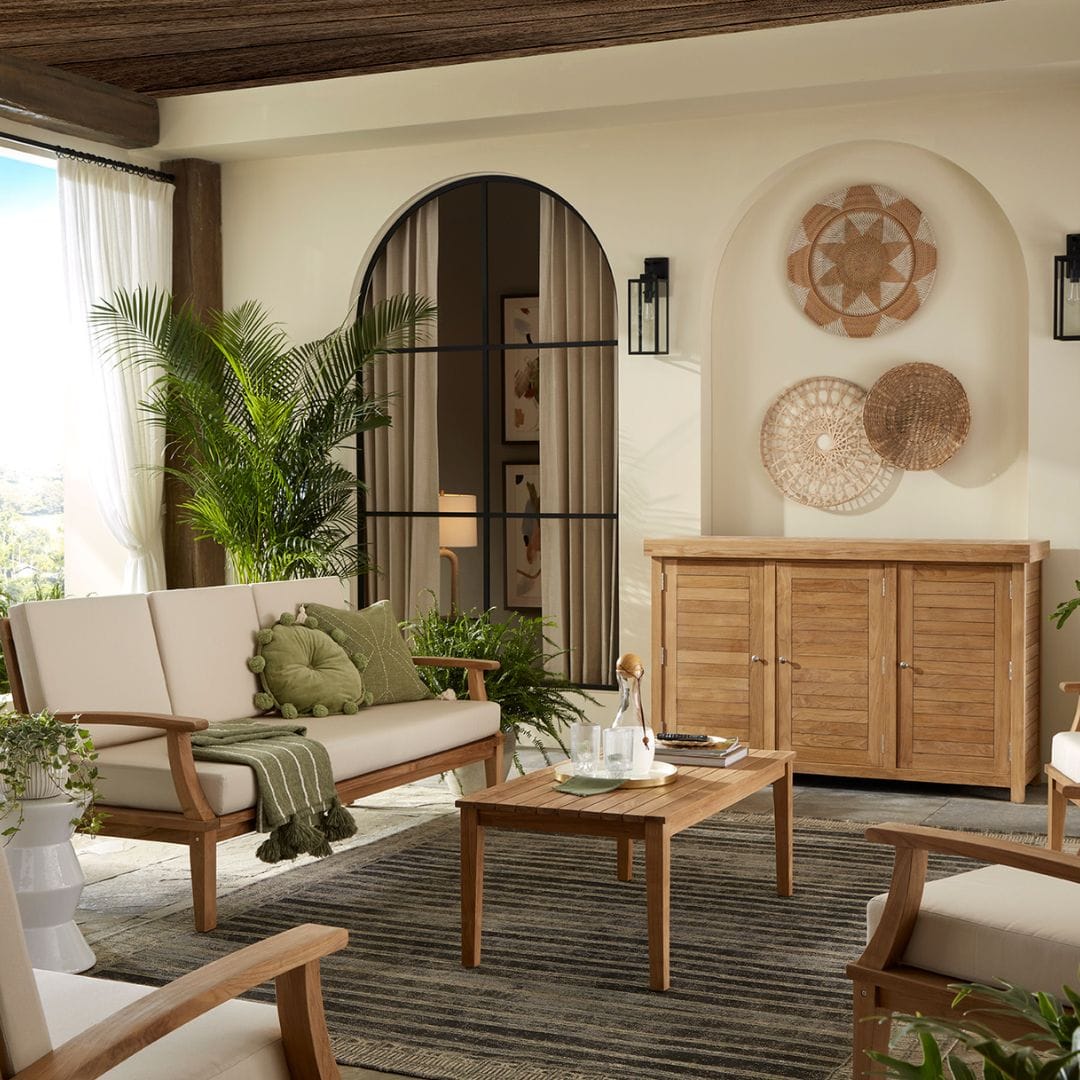

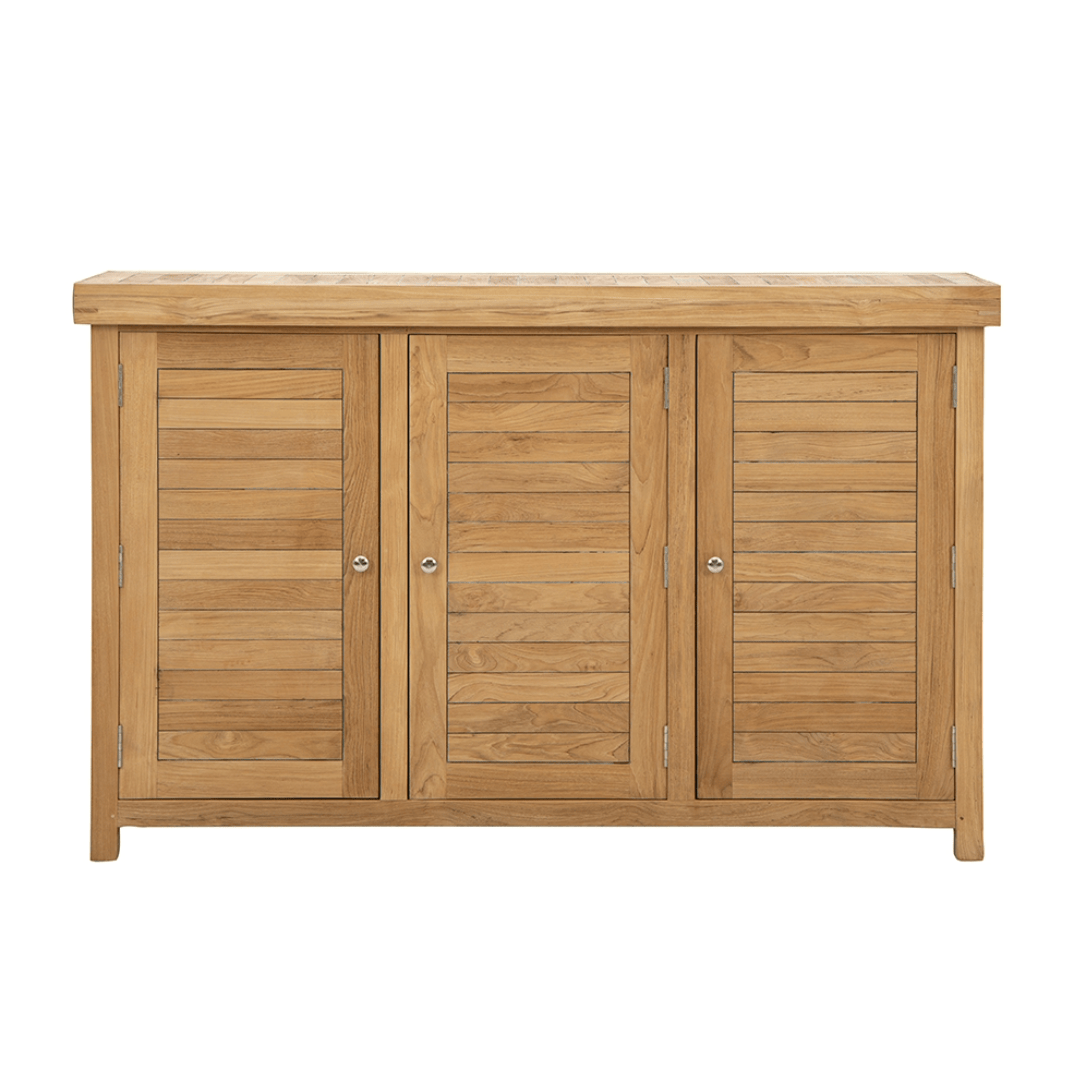

Sturdy and stylish, the fine sanded teak TV lift cabinet features a beautiful, sealed, shiplap design. The cabinet hardware is designed for long-term outdoor use. Soft-close hinges on the doors add to the quality design and build. The teak is finished with “Teak-Shield”, which doesn't change its appearance, but eliminates water absorption.

This outdoor TV console is made from Grade A Teak, that comes from the Plantation teak tree in southeast Asia, which is managed by the Indonesian government for commercial use. Its durability, natural water-resistant qualities and striking wood grain, its optimal to use in outdoor furniture.

To help protect this beautiful piece of furniture, Touchstone includes a high-quality cabinet cover with every Tech Teak Outdoor TV Lift Cabinet. This cover is made with 600D Oxford Fabric, anti-UV coating, and PVC Coating. This high-end cover is waterproof and weather resistant.

Top Rated Touchstone® Smart TV Lift

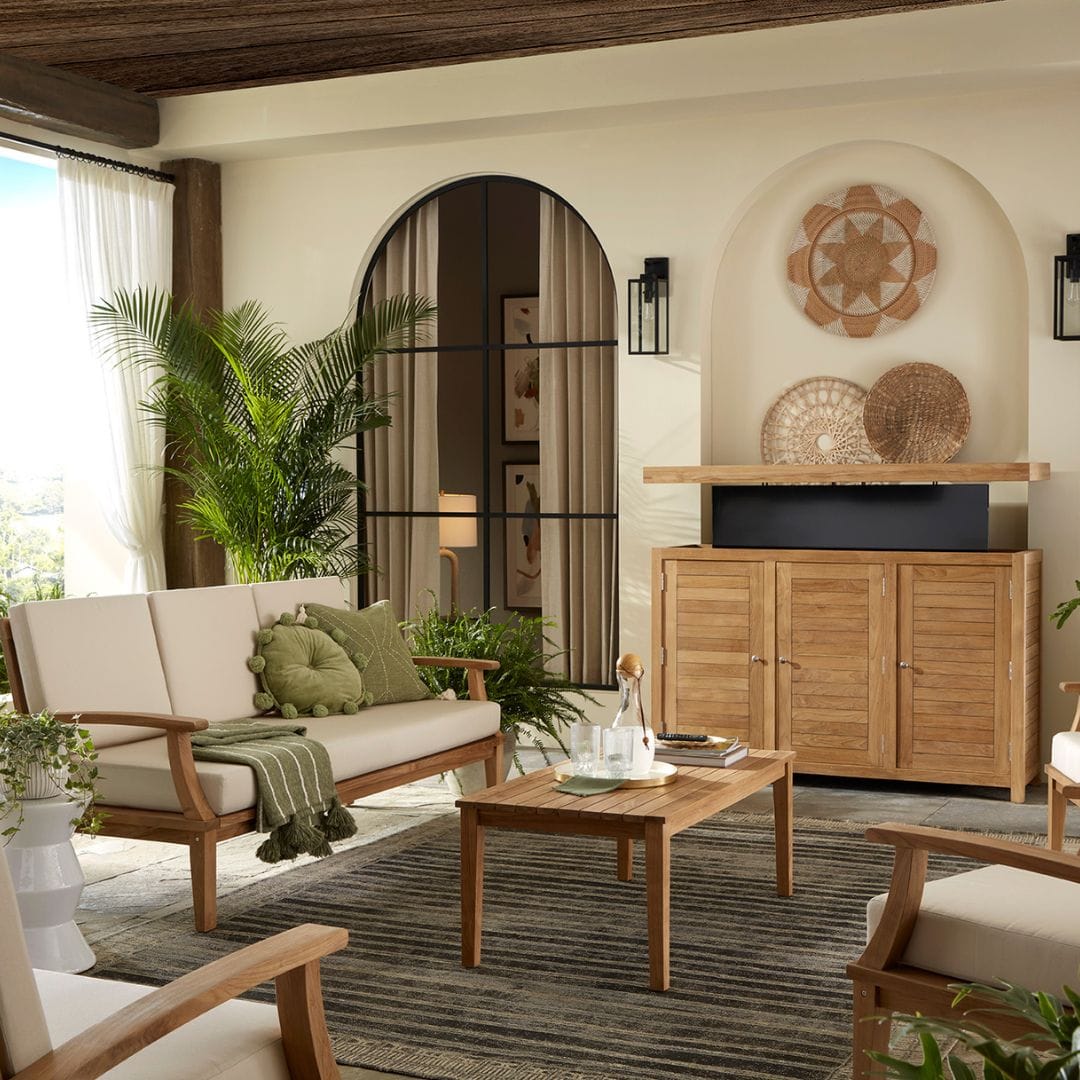

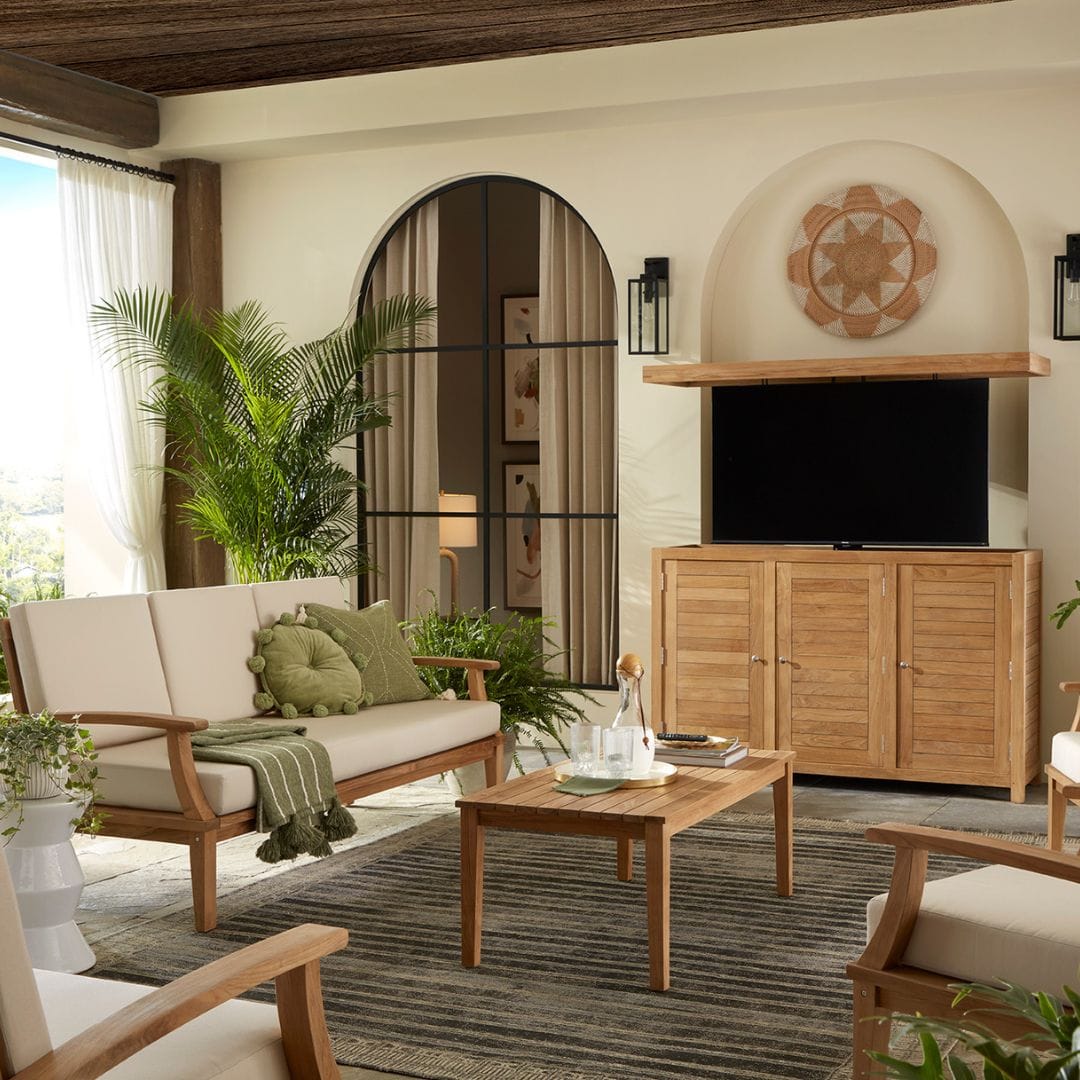

The included Touchstone SRV Pro TV Lift quietly raises your TV into view and lowers into the cabinet seamlessly. Supports TVs up to 120 lb. Includes a 5-year warranty. The SRV lift is also Alexa and Google Home certified, so they its ready to use with your smart home devices. The cabinet comes fully assembled with the TV lift mechanism installed. Just mount your TV following the included step-by-step instructions and it’s ready to use.

Wi-Fi Enabled, Compatible with Amazon Alexa® and Google Home®

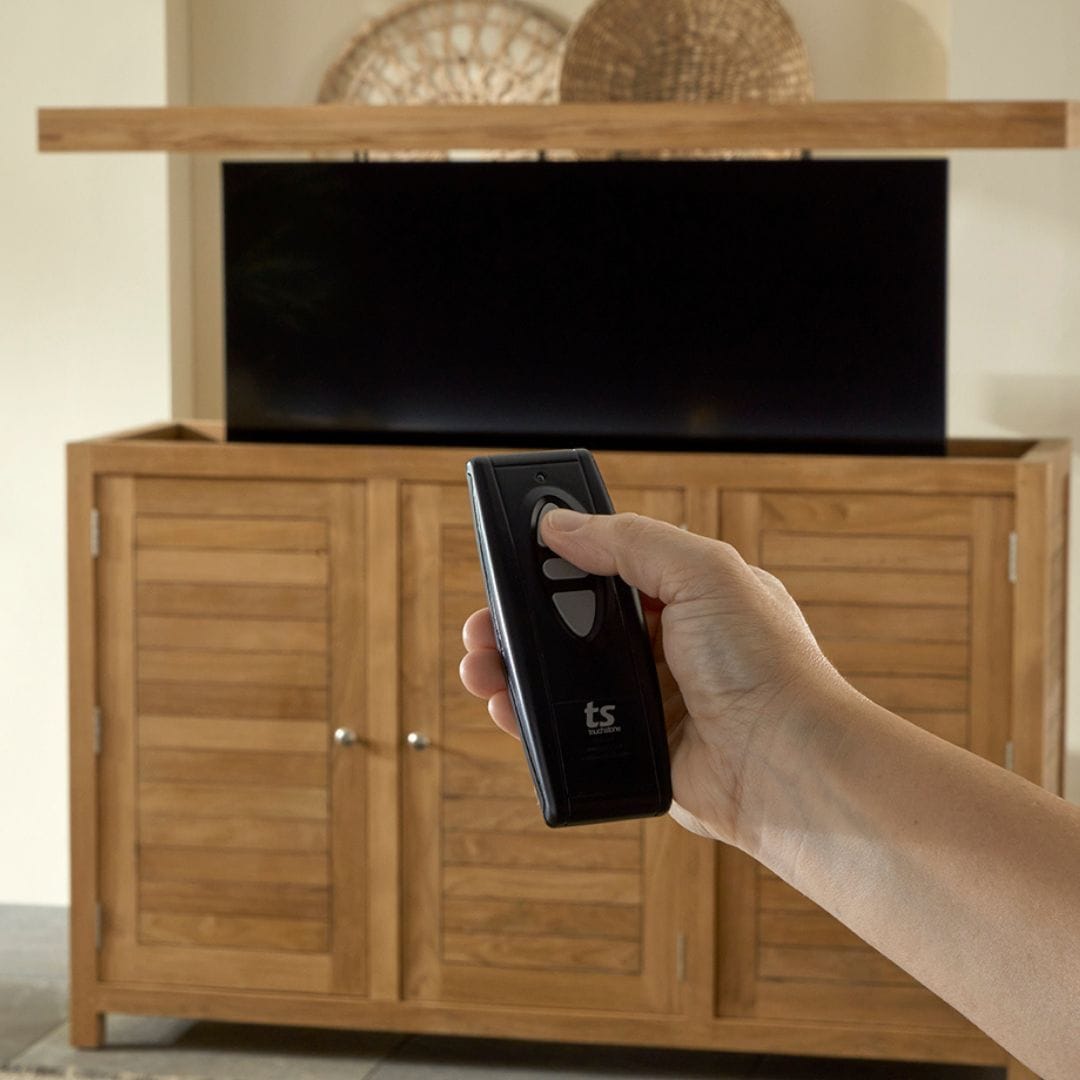

Control your TV lift and memory heights from your lounge chair using the included remote control or Touchstone’s Smart mobile app. Connect it to compatible smart home devices through the app for added convenience.

Caring for your Teak Cabinet

Touchstone’s TechTeak cabinet is finished at the factory with “Teak-Shield”, a non-oil finish that prevents stains and mildew, while allowing moisture to leave the teak. It doesn’t alter the teak’s appearance, allowing for the wood’s natural patina color to last. Reapplication of “Teak-Shield” is recommended over the life of your cabinet depending on your location’s weather.

This cabinet is not designed to be used with casters. Adding casters to this cabinet may result in instability and tipping, posing a serious risk of injury or property damage.

Cabinet

• Exterior Dimensions: 66-5/8 inches wide x 22-5/8 inches deep x 42-3/8 inches high
• Interior Cabinet Dimensions: 60 inches wide x 16 inches Deep x 36 inches high
• Shipping Dimensions: 70 inches W x 26 inches D x 50 inches H
• Product Weight: 217 lbs
• Shipping Weight: 275 lbs

Cabinet Cover

• Material: 600D Oxford Fabric, PVC Coating, Waterproof and weather-resistance.
• Custom Fitted - Designed for a snug, protective fit for your TechTeak.

Lift Mechanism

Documents

• 70068 TechTeak Dimensional Drawing
• 33900 - SRV 3900 TV Lift Manual
• SRV WiFi TV Lift Setup Manual
• 33900 - SRV 3900 TV Lift Dimensional Drawing

Specifications

• Lift raises to the full height of 70 3/8 inches
• SRV 3900 Pro fully depressed measures 31 3/8 inches H x 7 inches W x 7 inches D (Including TV mount brackets, does not include TV depth)
• Holds up to 100 lb.
• Durable Steel Construction with 24 V Motor makes operation quiet and reliable
• Universal Quick Connect system for mounting TV to lift is easy to use and install
• Hardware kit includes all necessary bolts and screws and is compatible with most flat panel TV in the market today
• Includes wireless RF and IR remote control and a wired handset control
• Supports TVs with VESA mounting patterns up to 600mm wide by 400mm high
• Safety stop while raising and lowering
• Soft start and stop
• RS232 Port

Dimensions

• Lift Dimensions: 31 3/8 inches H x 7 inches D
• Unit Weight: 36 lb.

Our LTL-Curbside Delivery Service is included in the price of all Touchstone® TV Lift Cabinets and includes the following:

• Lift-gate delivery to curbside at your home or place of business.
• Item will be left in its original packaging.
• The customer is responsible for unpacking cabinet and bringing cabinet into the home.

After your order has shipped, a representative from the shipping company will contact you to schedule delivery of your Touchstone TV Lift Cabinet.

The carrier will provide a date and time window for delivery.

TV and component installation is not part of the delivery. This is the responsibility of the customer.

We will send you an email or SMS (depending on your selected communication preference) with your order shipment tracking information, so you can check with the shipping carrier directly to track your shipment.

Visit the Touchstone Shipping page for full details.

Shipping to Canada

We ship to Canada. You will be responsible for all duties, brokerage fees, taxes and additional shipping charges. Visit the Canada shipping page for more information.

Please visit the Return Policy page for all the details.

STANDARD 2-YEAR WARRANTY (INCLUDED WITH CABINET PURCHASE):

• Replacement of any non-functioning cabinet parts (hinges, handles, lights)
• Free Toll-Free tech support
• Coverage of InfraRed repeaters

STANDARD 5-YEAR WARRANTY (COVERS TV LIFT MECHANISM ONLY)

• Replacement of any non-functioning lift parts
• Toll-Free Customer Service & Support
