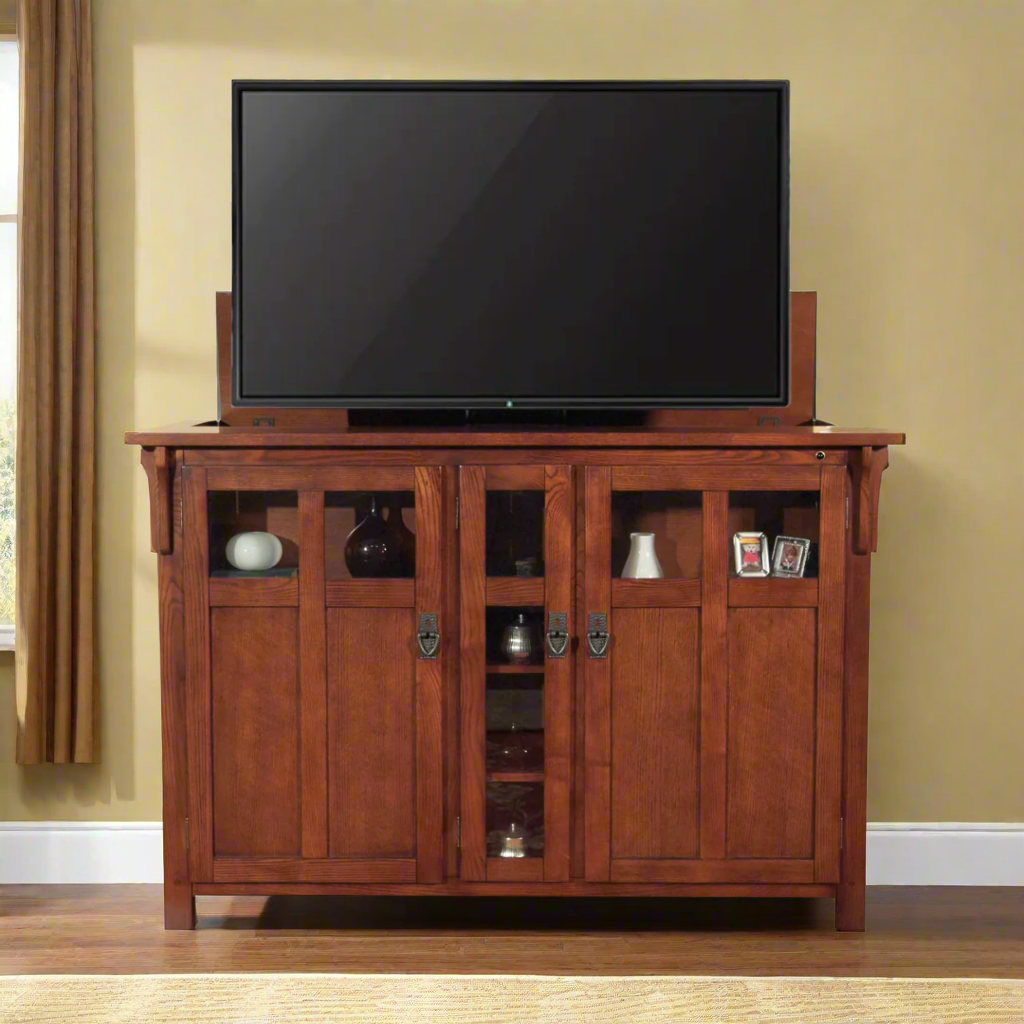

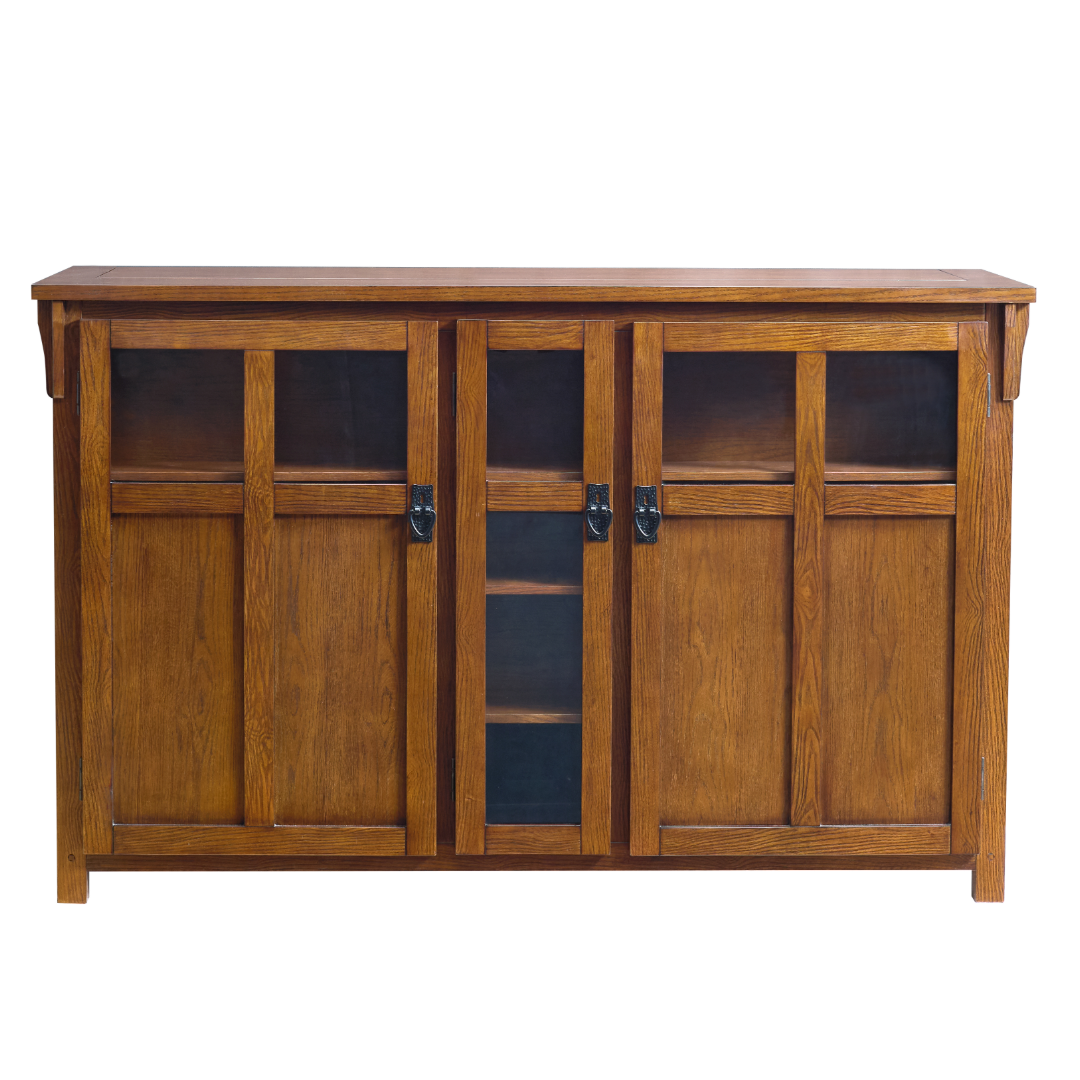

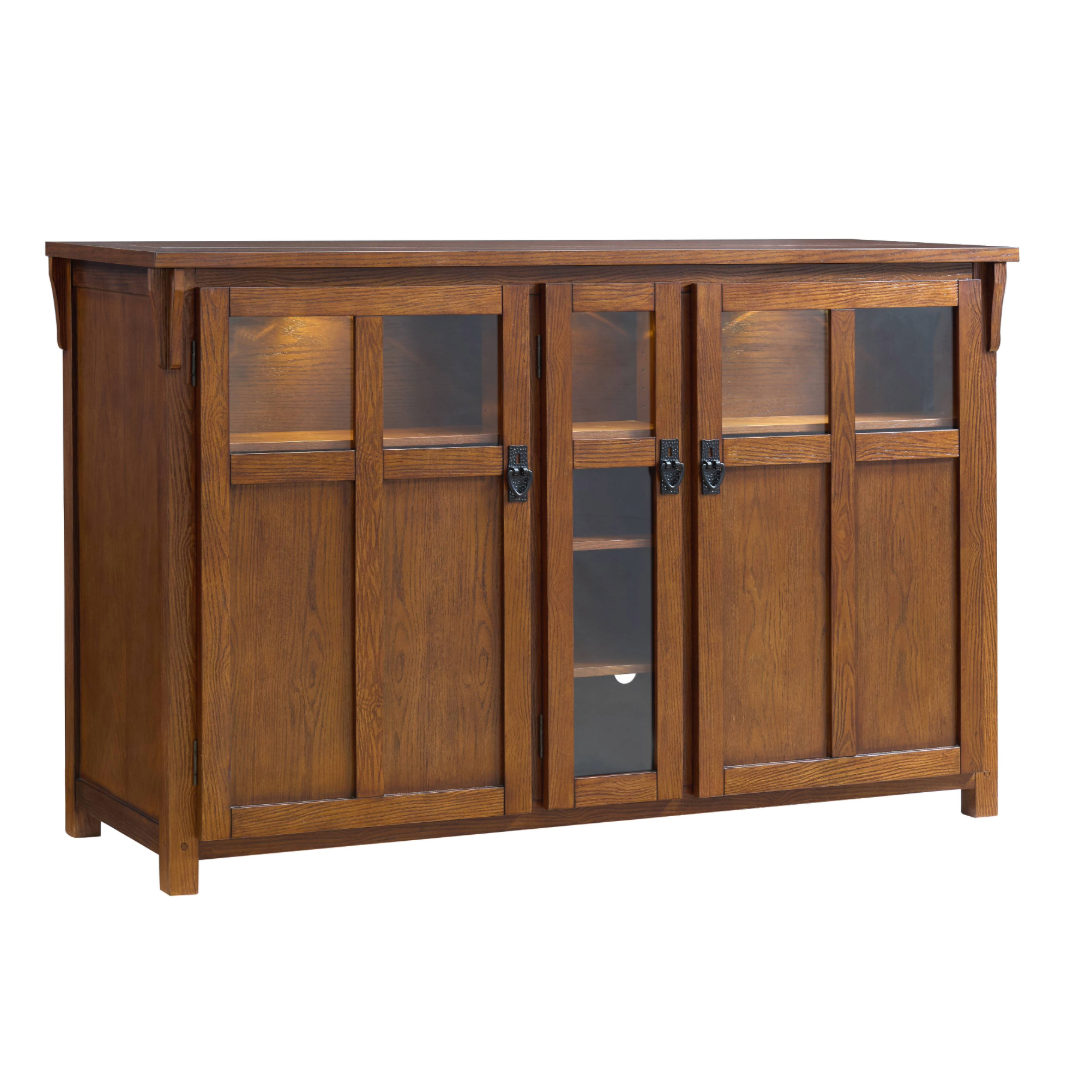

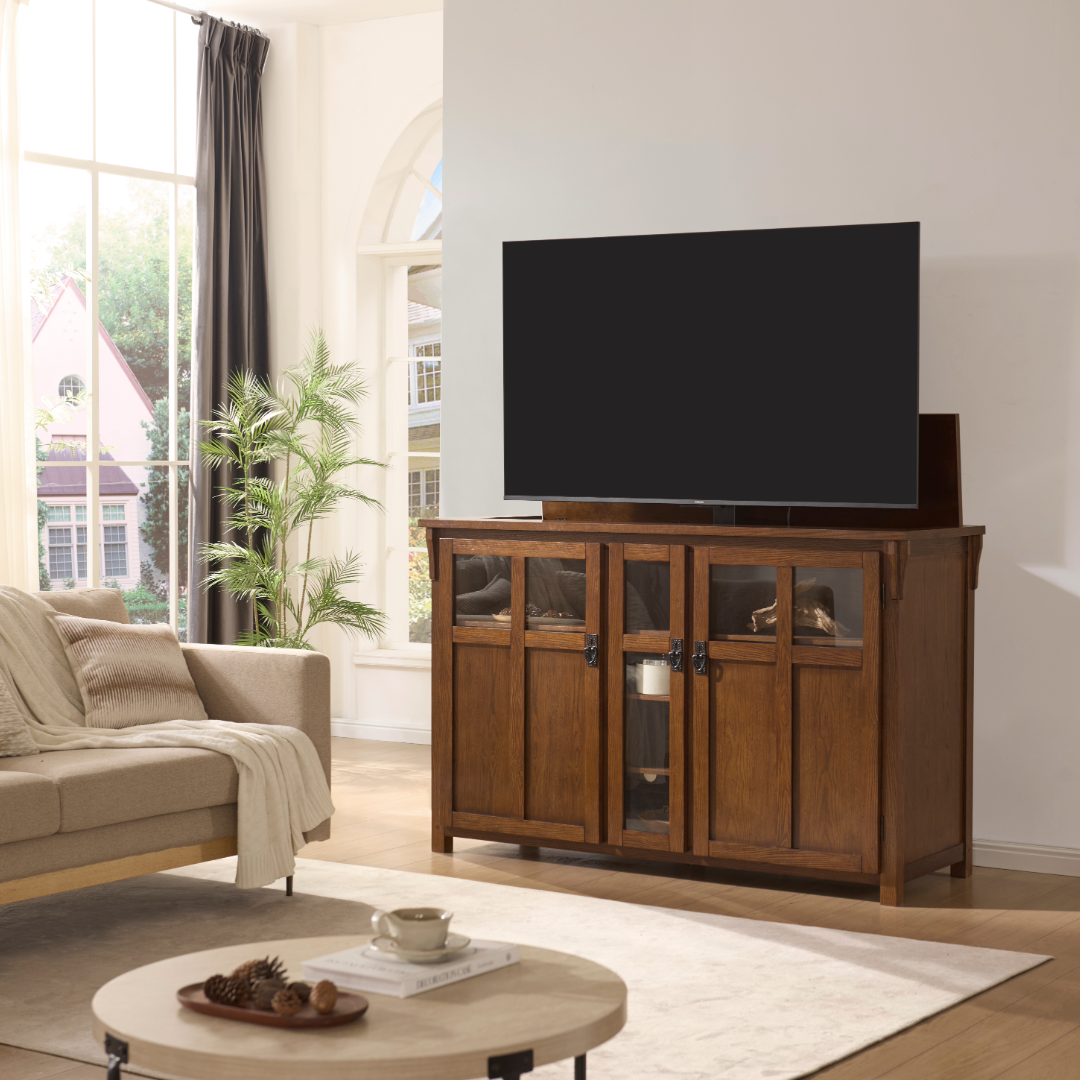

The Bungalow 70062 Smart TV Lift Cabinet for 60 Inch Flat screen TVs

• Classic Mission/Arts & Crafts style cabinet - with recessed panels, joint details and styled dropdowns
• Alexa® & Google Home® compatible
• Fits TVs up to 60 inches diagonal screen measurement (54 inches left to right width)
• Beautiful Chestnut finish that fits seamlessly with existing mission style furniture
• Quiet and reliable Whisper Lift II Pro with 5 year warranty
• Functional front doors with adjustable shelving for storage and component space

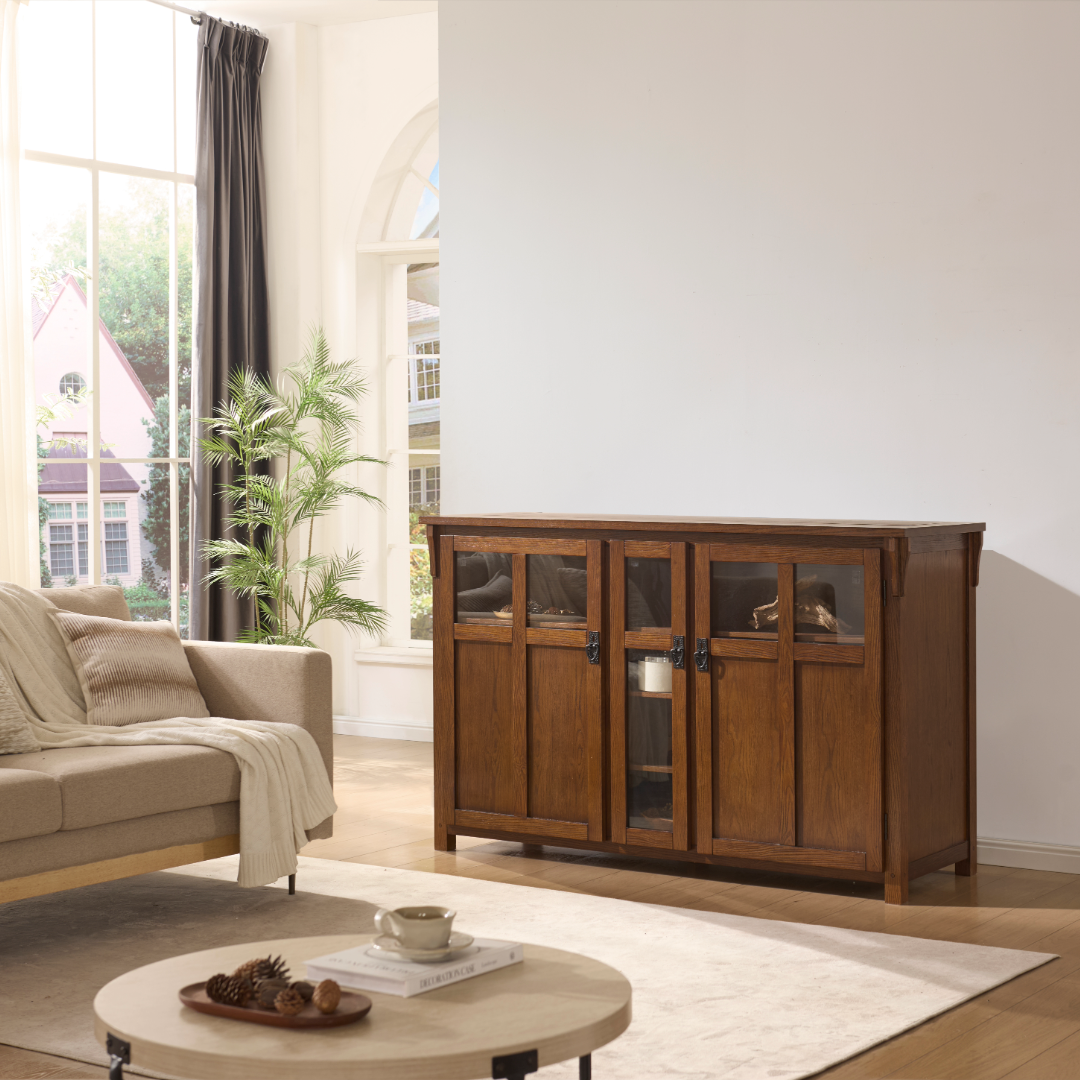

The Bungalow® design was influenced by both the Lodge and Arts and Crafts design movements to accentuate the unique style of your home. The exquisite chestnut finish combined with its antique hardware give The Bungalow™ a modern yet timeless look. The Bungalow™ features small display cutouts in its cabinet doors for displaying knick knacks, such as books or framed photos, adding to both the style and utility of the piece.

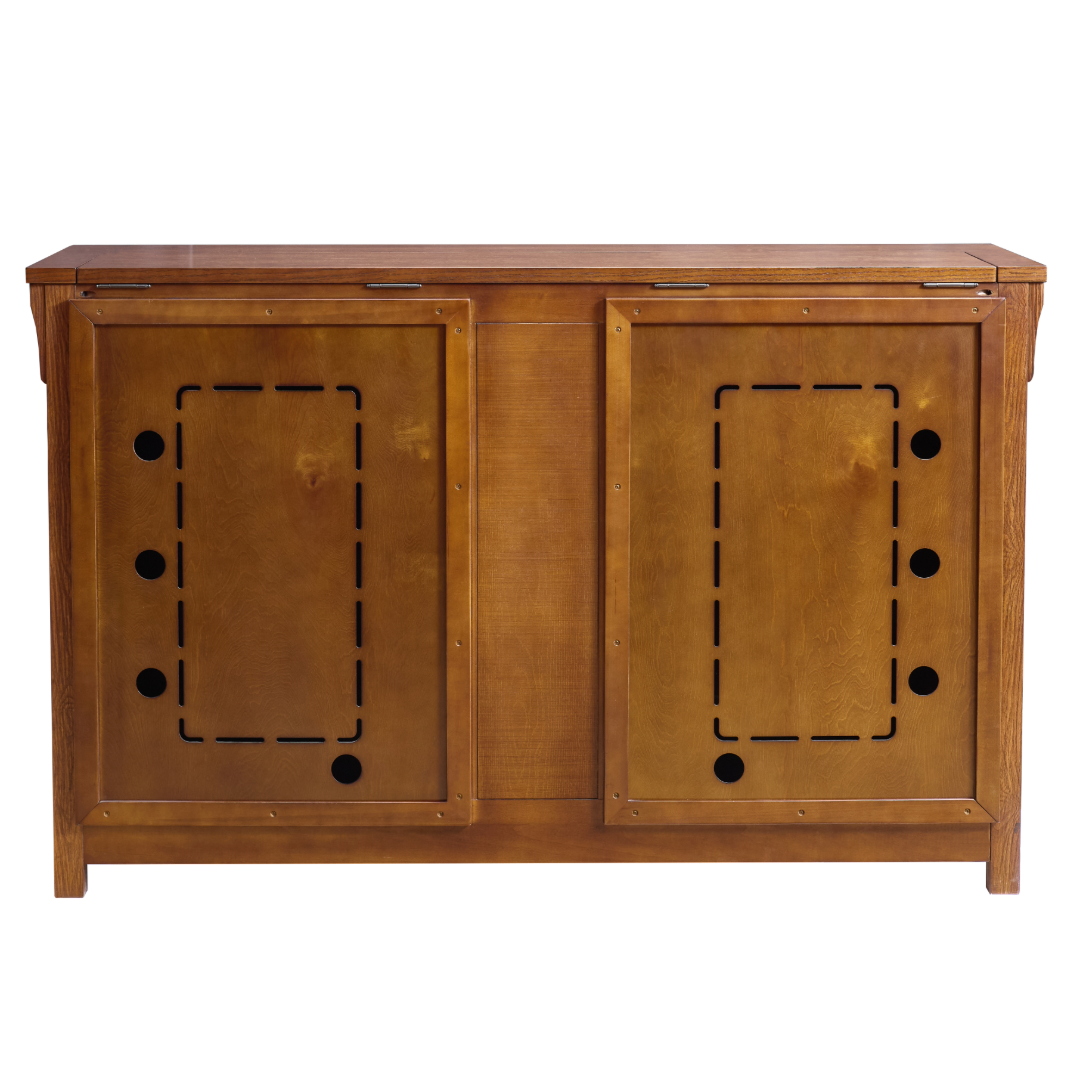

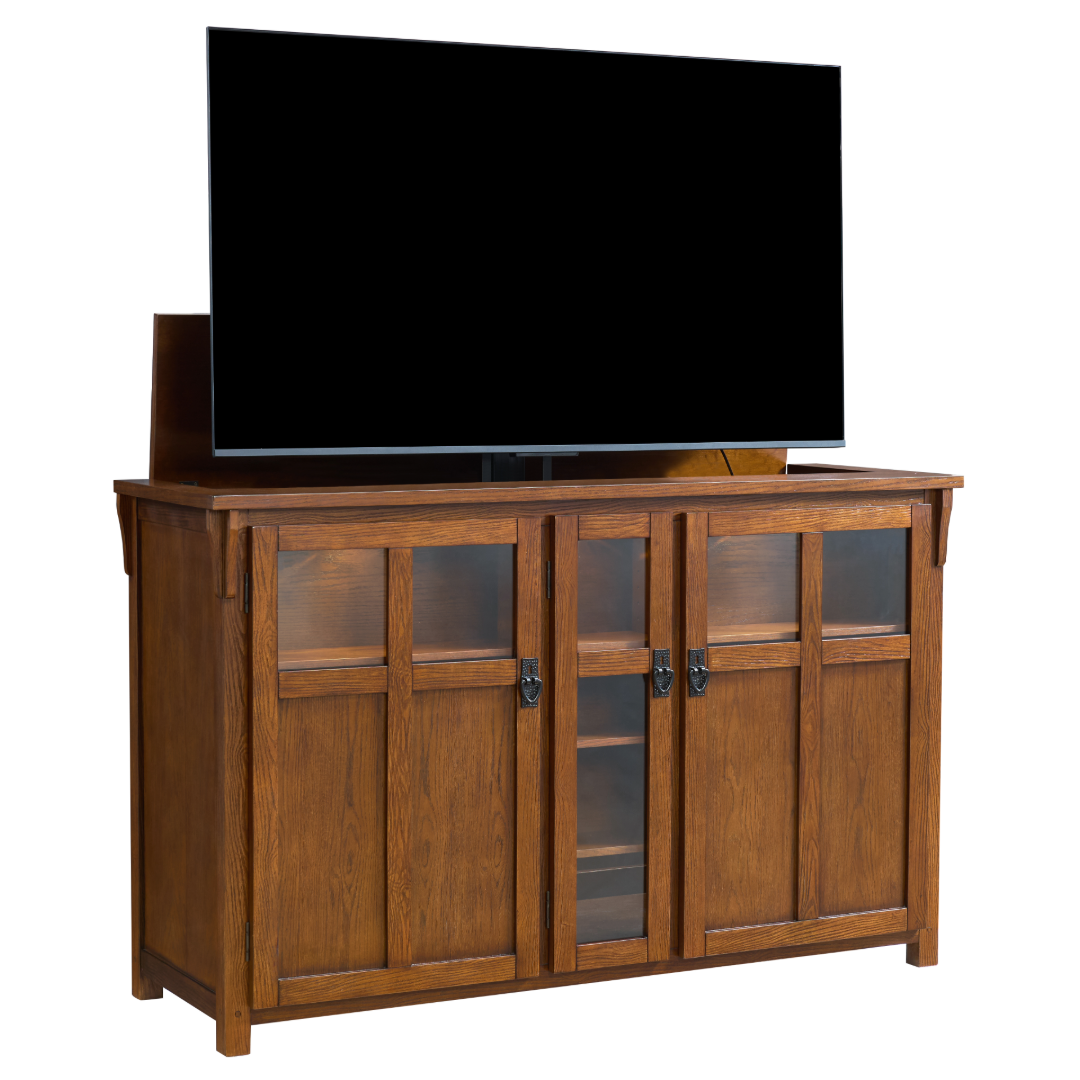

The Bungalow® can accommodate flat screen televisions up to 60 inches diagonal. Thanks to its whisper-lift technology, The Bungalow® allows you to stow your television away when you want it hidden out of sight and lift it on display when you want to use it. The TV lift will lift your flat screen, sturdily and smoothly, up to 36 inches out of the cabinet within seconds. The Bungalow® has plenty of storage space inside for your electric components such as your DVD player, cable box, and gaming system. Additionally, this unit features sliding panels in its near for easy access to your television wires and connections.

Touchstone's TV Lift System

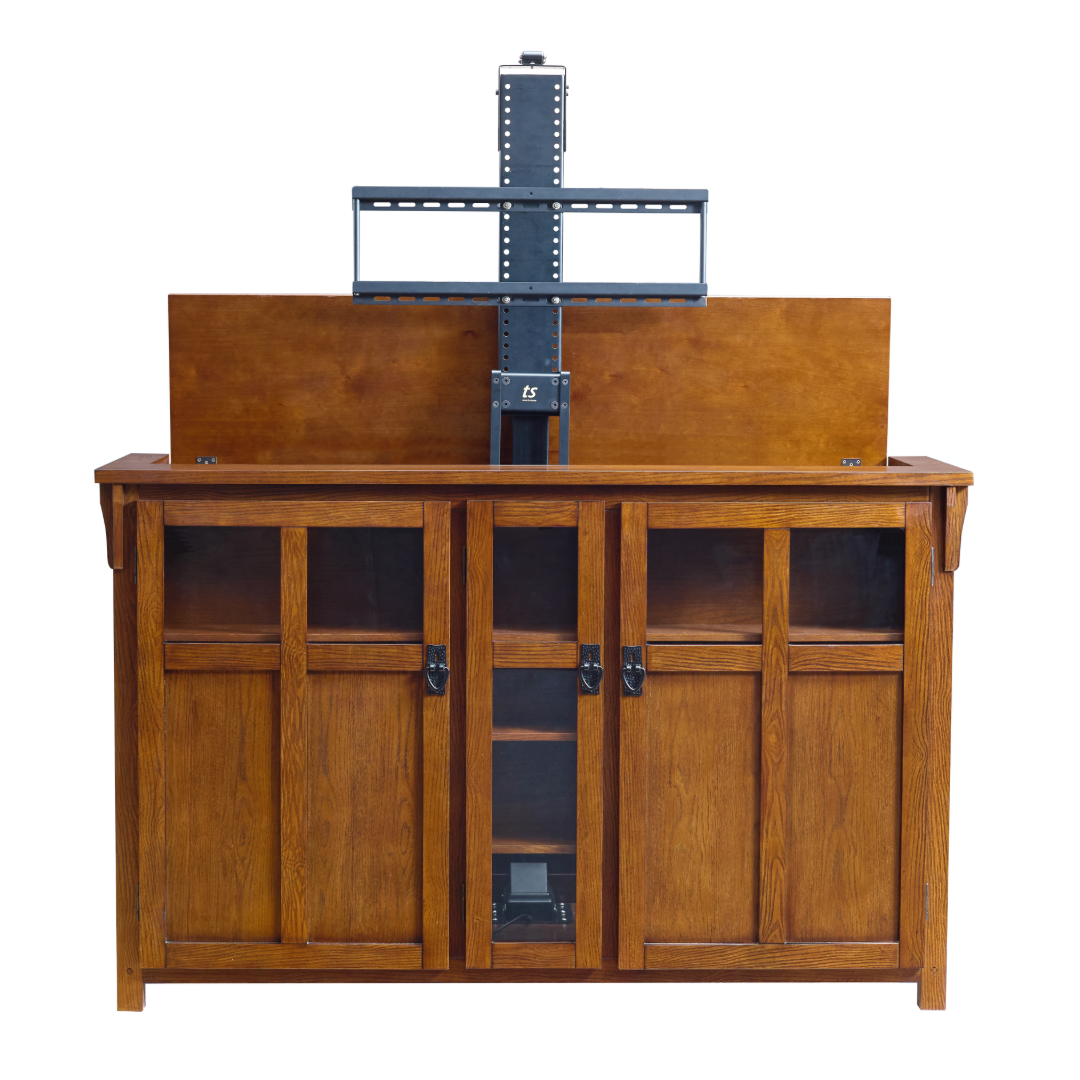

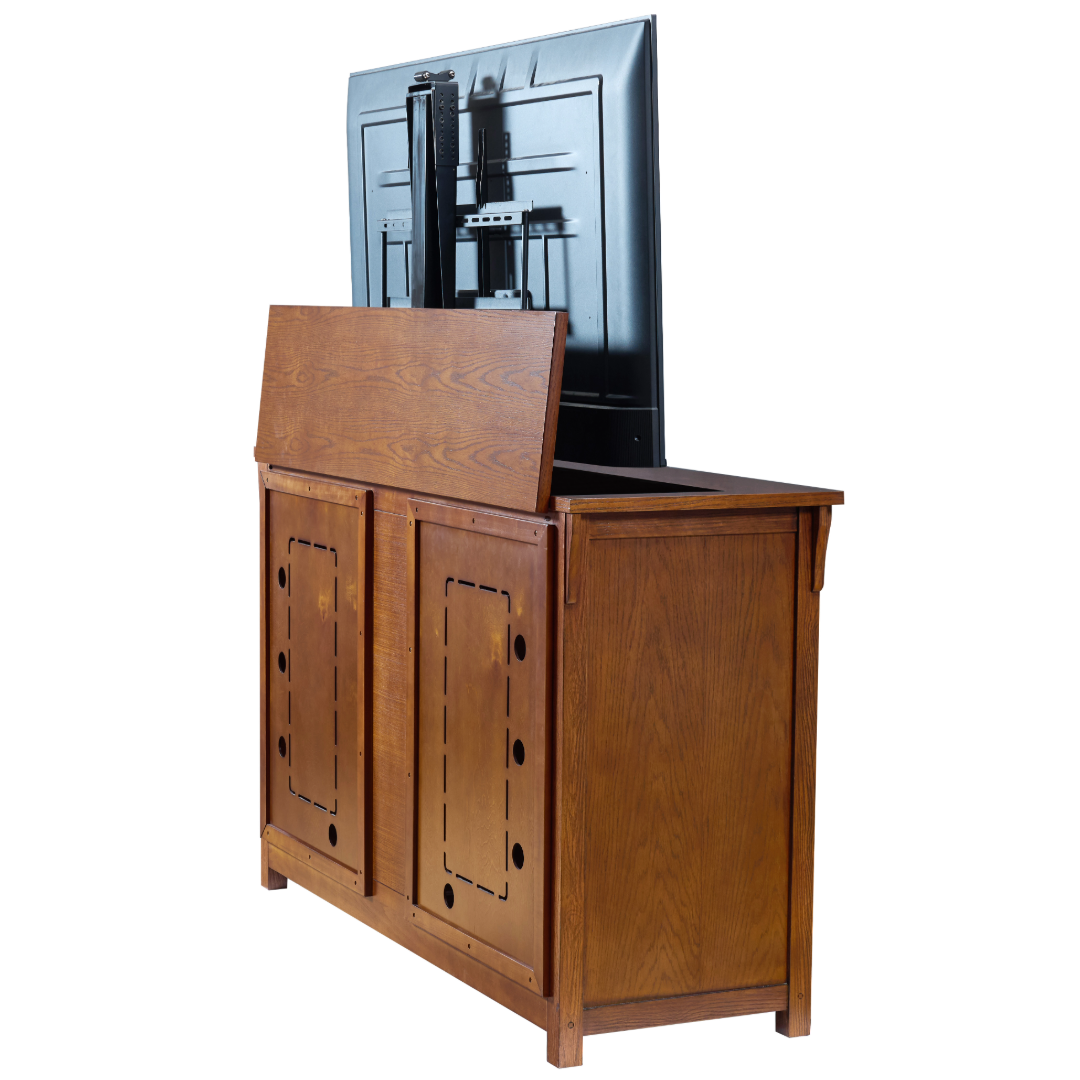

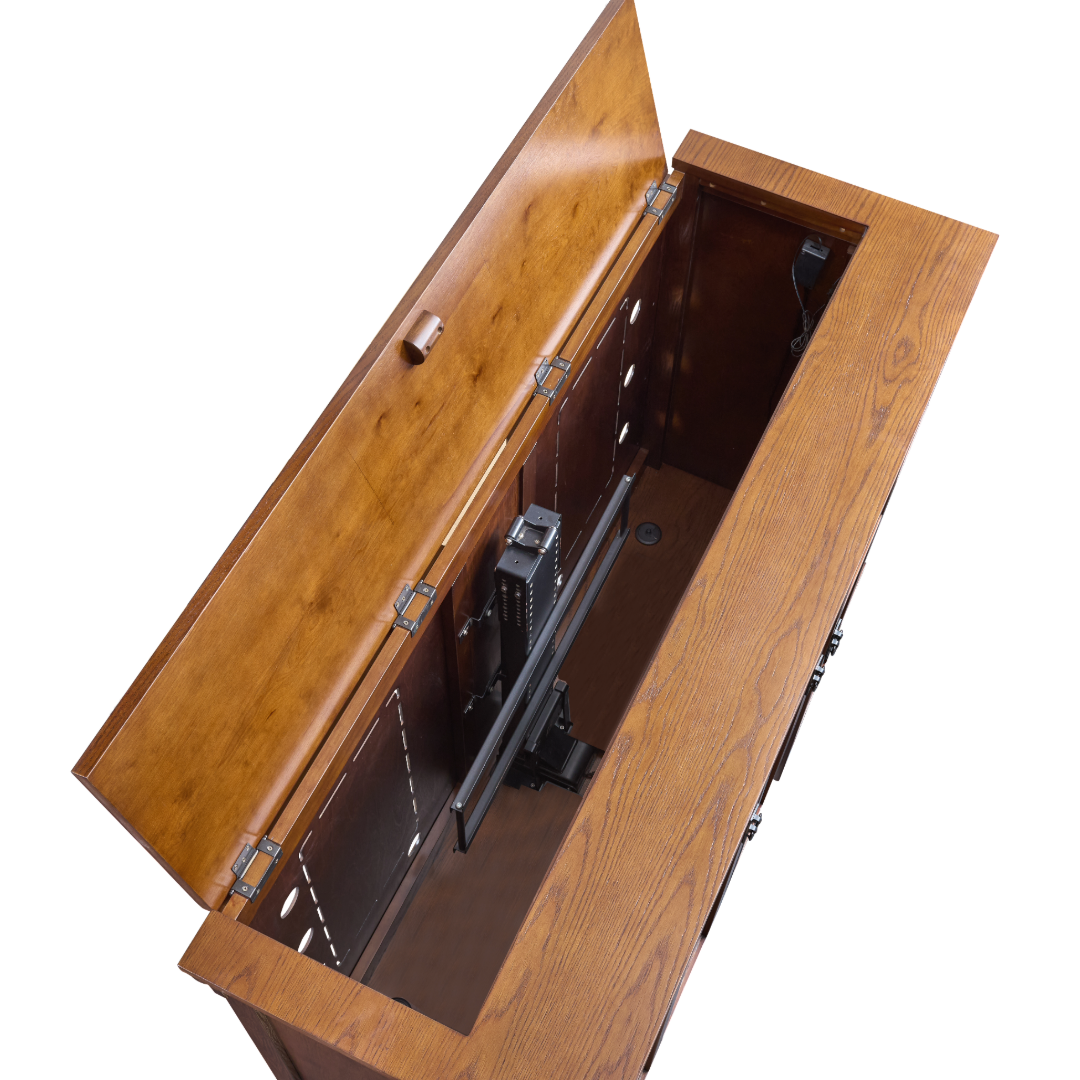

The patented Whisper Lift® II PRO Advanced TV Lift is constructed from durable steel for unmatched strength and stability and is powered by our whisper quiet 24V motor. Whisper Lift® II PRO is equipped to provide the power and durability you need in your TV lift mechanism, while providing advanced features like RS-232 compatibility, Infra-red (IR) remote capability, and lift height memory. The cabinet comes fully assembled with the TV lift mechanism installed.  Just mount your TV following the included step-by-step instructions and it’s ready to use.

Wi-Fi Enabled, Compatible with Amazon Alexa® and Google Home®

Control your TV lift and memory heights from your lounge chair using the included remote control or Touchstone’s Smart mobile app. Connect it to compatible smart home devices through the app for added convenience.

IR Repeater Kit

You can also upgrade The Bungalow® with the Infra-Red Repeater Kit for just $99. The Infra-Red Repeater Kit allows you to control your DVD player, home theater, cable box, tuner or other components located inside the cabinet through a universal remote eye.

Product Features:

• Universal Mounting System: Easy to install mounting kit includes all necessary hardware and brackets to hold your flat screen TV on the Touchstone™ lift mechanism.
• Component Storage Space: The Bungalow® has 8 inches of vertical storage height and 50 inches of width horizontal space for your soundbar, gaming system, and other components.

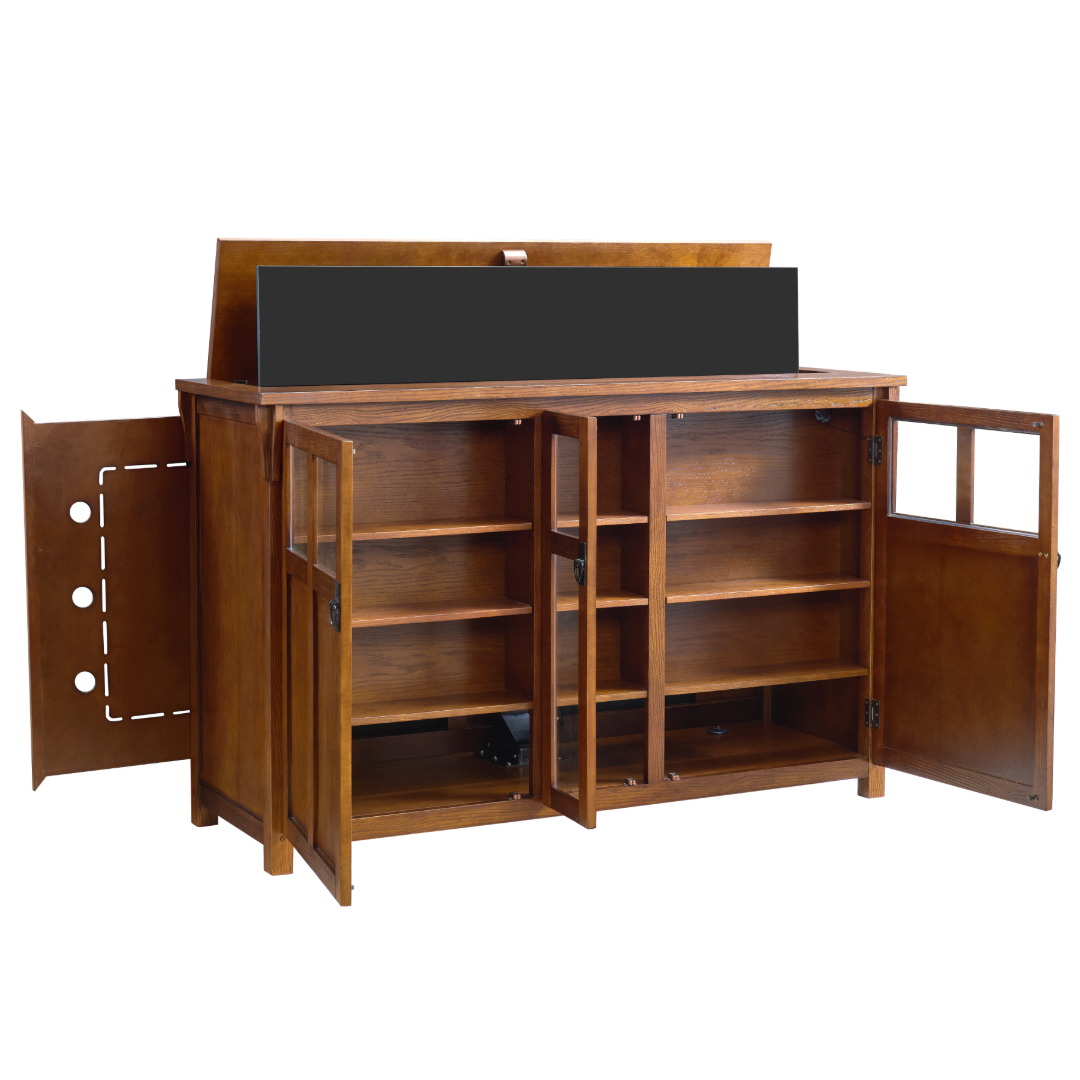

• Personal Storage Space: The Bungalow® has 4 adjustable shelves for your DVD boxes, Video Game boxes and CD cases.
• RF Remote Control: Includes 1 RF remote control for raising/lowering the lift mechanism without requiring line of sight.
• Backup Wired Remote Control: Each unit has a backup on/off switch and set control switch inside the cabinet.
• Finishing Process: Our 7 step finishing process uses a combination of hand-staining and automated application tools that insures all woods and stains are applied uniformly and precisely to produce a quality cabinet that will last a lifetime.
• English Dovetail Joints: A time-honored fine cabinet-making technique, Dovetail joints become self-locking even before the glue is applied, so solid overall construction can be guaranteed.

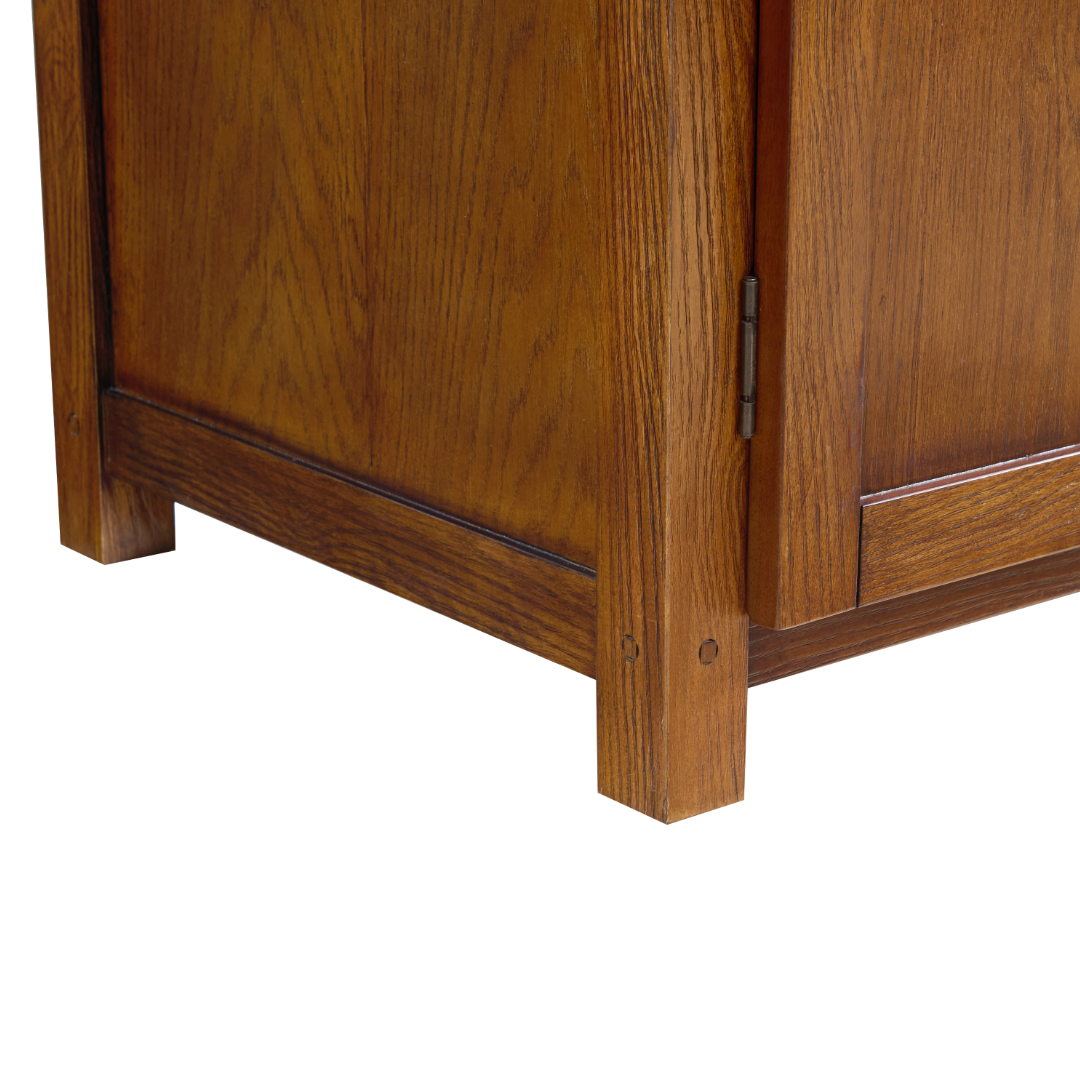

• Solid Wood Tongue and Groove Corner Blocks: Incorporates the side panels of the cabinet with the foot of the cabinet, adding structural support which enhances durability.

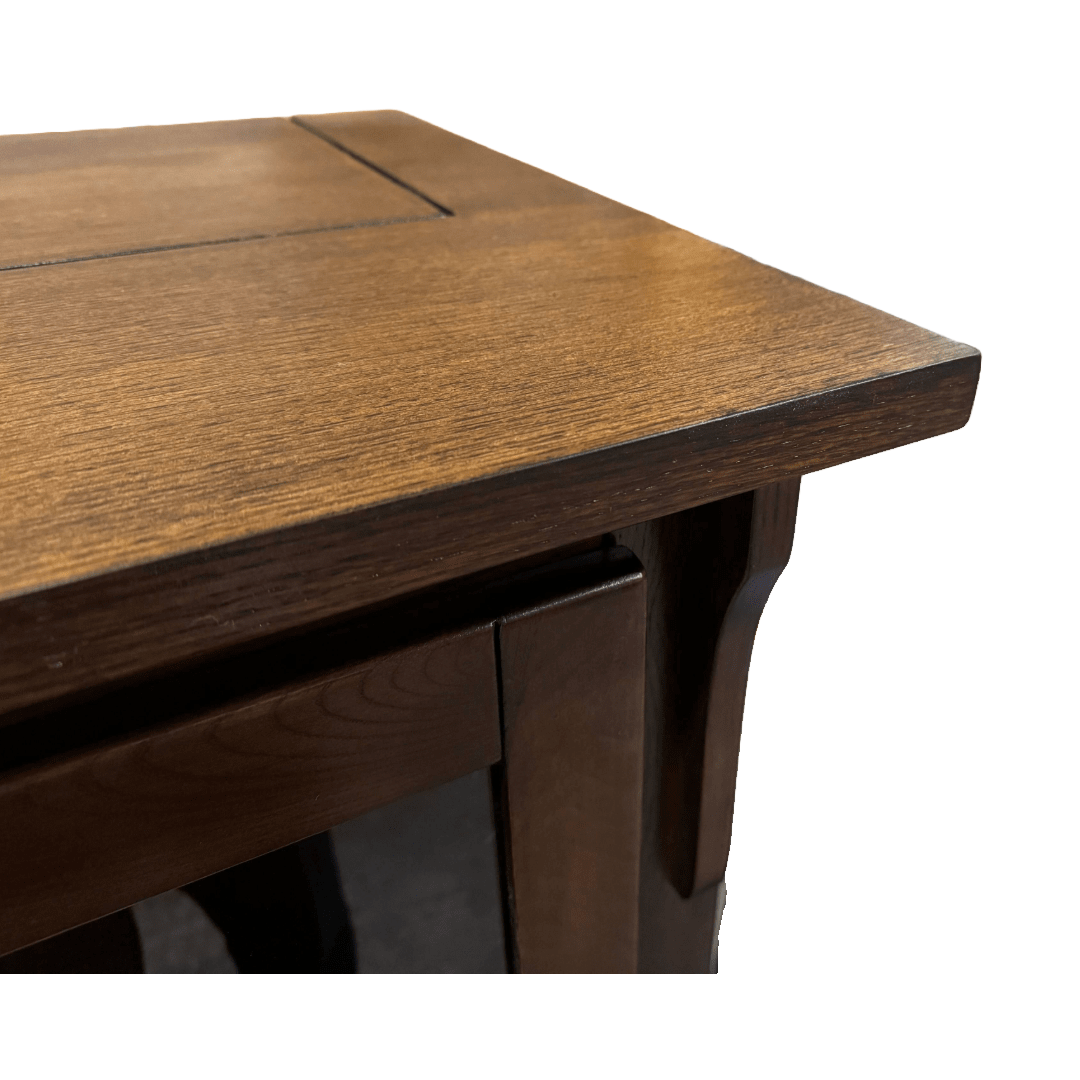

• Durable Construction: Designed with a sturdy MDF core and finished with a sleek oak veneer, this piece offers durability without compromising on elegance. All the structural and support components, as well as the moldings and detailed styling, are made from real wood, ensuring lasting quality and a timeless look that enhances any living space.
• 24 point QC audit inspection of every cabinet.

Documents

• The Bungalow™ TV Lift Cabinet Owners Manual
• The Bungalow™ TV Lift Cabinet Product Brochure
• The Bungalow™ TV Lift Cabinet Dimensional Drawing

Specifications

• Cabinet Wood Finish: Mission Chestnut
• Cabinet Material: MDF/ Particle Board/ Oak Veneer

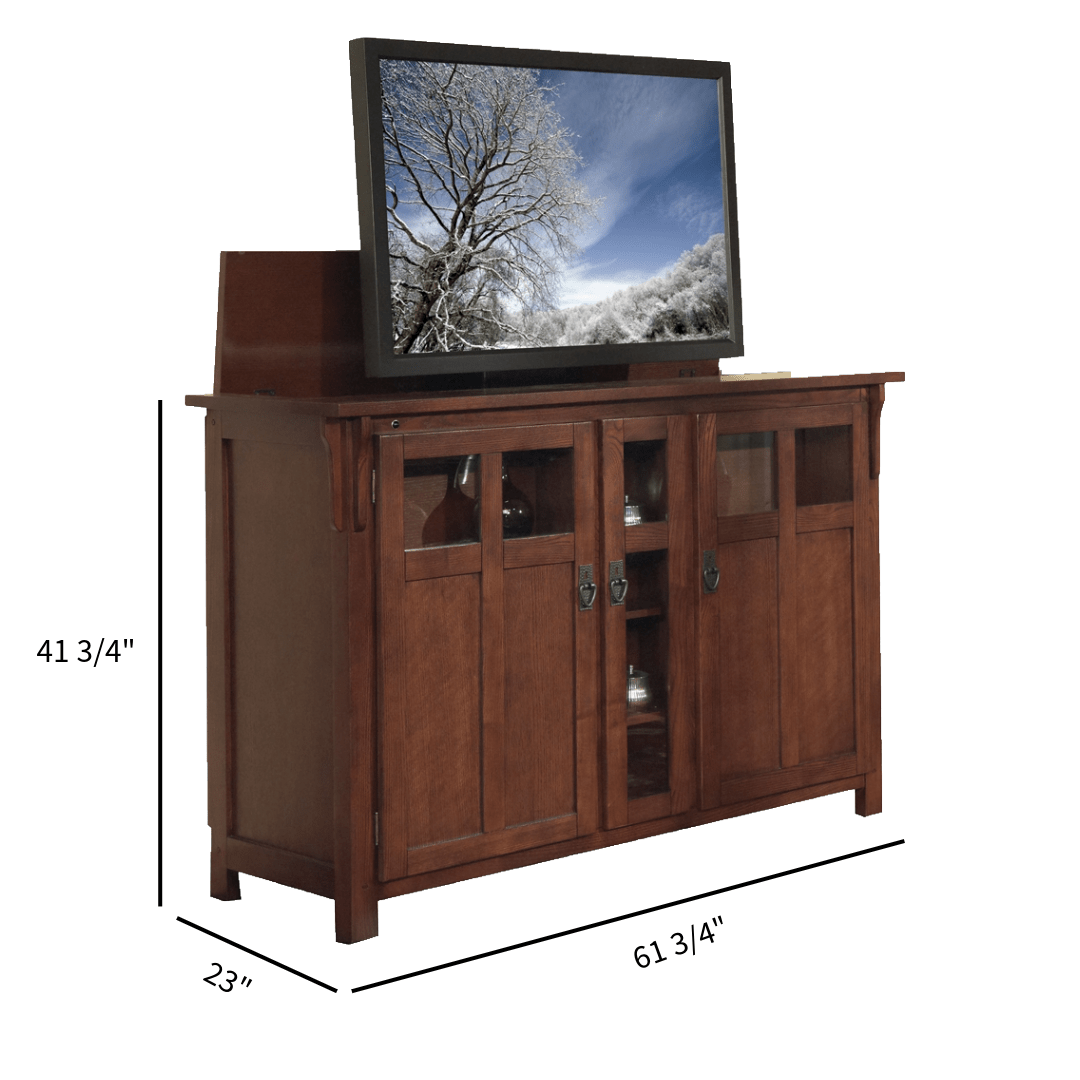

• Unit Dimensions: 61 3/4 inches W x 23 inches D x 41 3/4 inches H
• Maximum Cabinet TV Size w Whisper Lift II: 54 inches W x 4 1/2 inches D x 35 inches H (TV height may vary depending on components placed in cabinet)
• Maximum Cabinet TV Size w Whisper Lift II PRO Swivel: 54 inches W x 2 1/2 inches D x 35 inches H (TV plus components)
• Maximum TV weight (without stand): 100 lbs.
• Unit Weight: 308 lbs
• Unit Shipping Weight: 394 lbs.

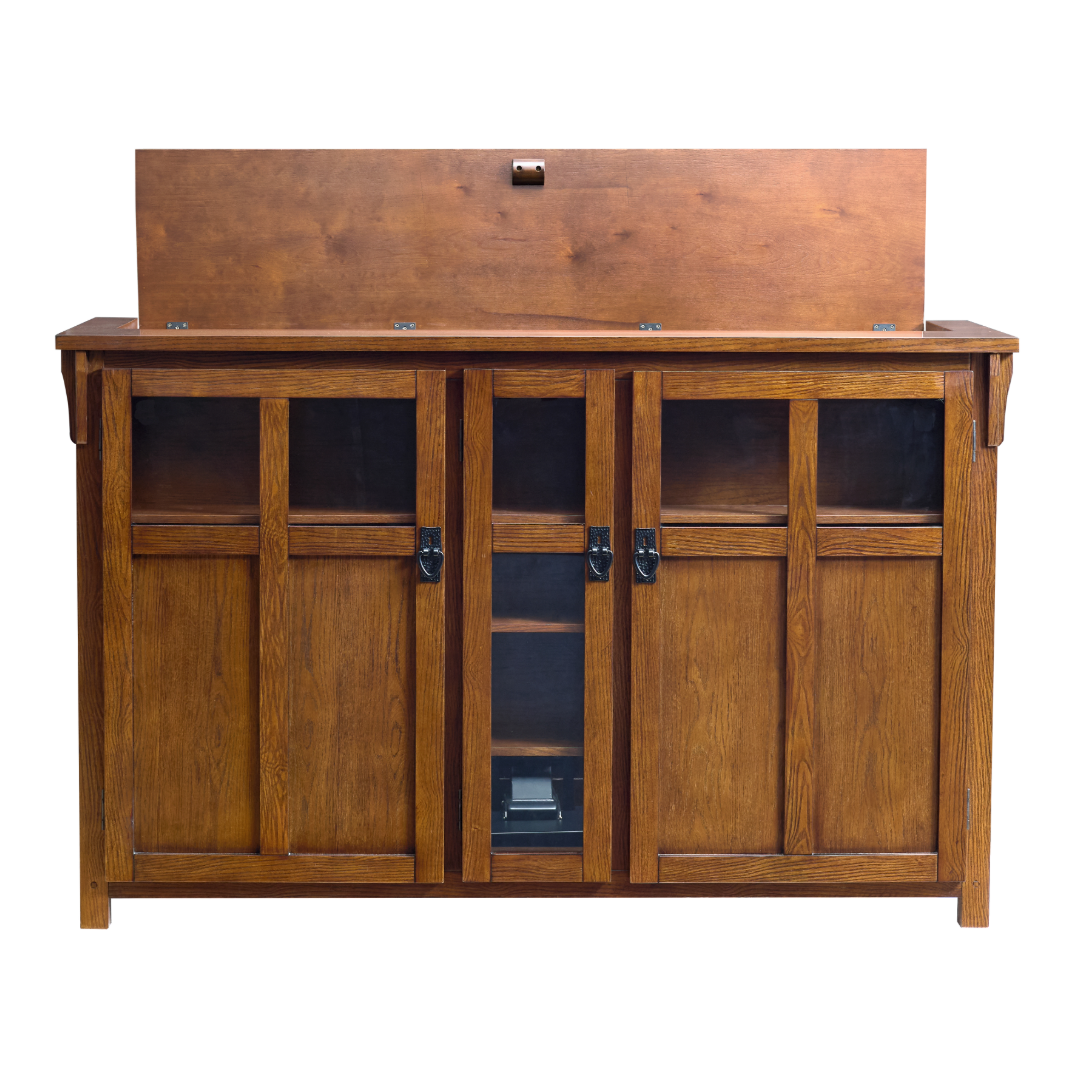

• Cabinet Top Dimensions (lid closed):

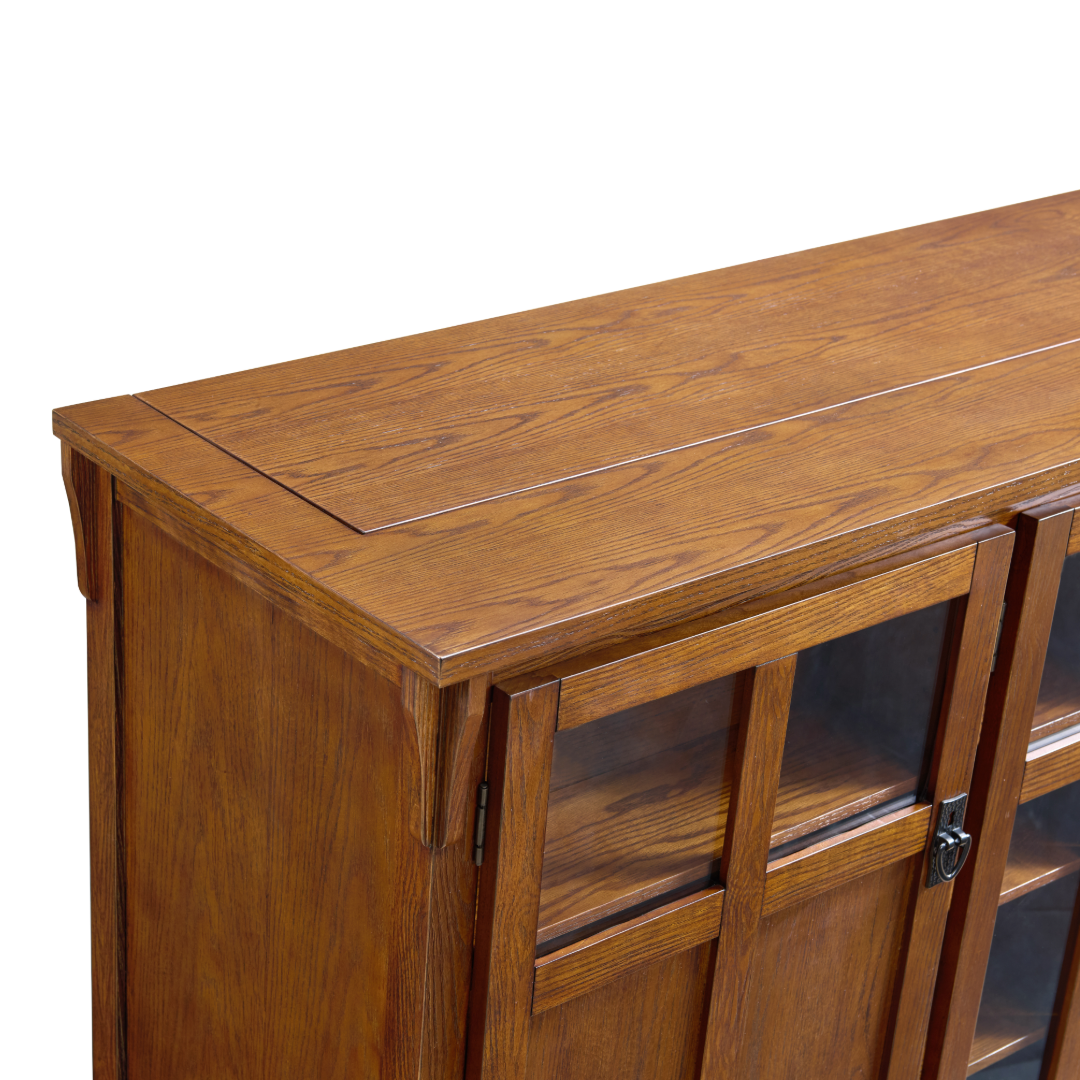

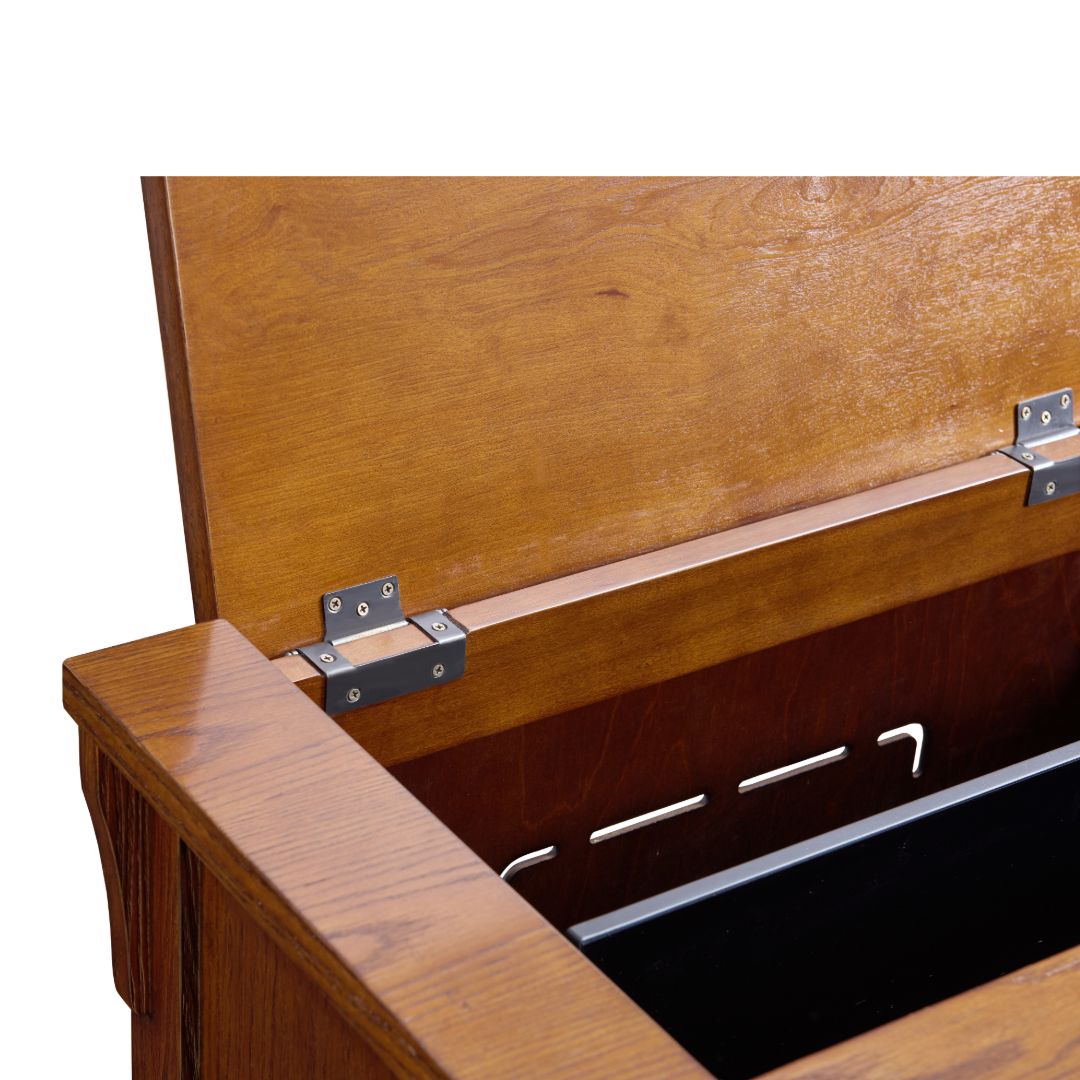

  • Lid: 55 inches wide by 12 3/4 inches deep
  • Area to left & right of lid: 3 1/4 inches
  • Area in front of lid: 9 1/4 inches
• Side Doors:
  • Door: 35 1/2 inches H x 22 inches W
  • Glass Panels: 71/4 inches H x 7 1/4 inches W
• Middle Door:
  • Door: 35 1/2 inches H x 9 1/4 inches W
  • Top Glass Panel: 7 1/4 inches H x 4 3/4 inches W
  • Bottom Glass Panel: 20 1/2 inches H x 4 3/4 inches W
• Area behind doors
• Side Storage Areas: 20 1/2 inches W x 25 1/4 inches H x 6 3/4 inches D
• Middle Storage Area: 8 1/2 inches W x 25 1/4 inches H x 6 3/4 inches D
• Component Storage Area: 55 inches W x 18 1/2 inches D x 8 inches H
