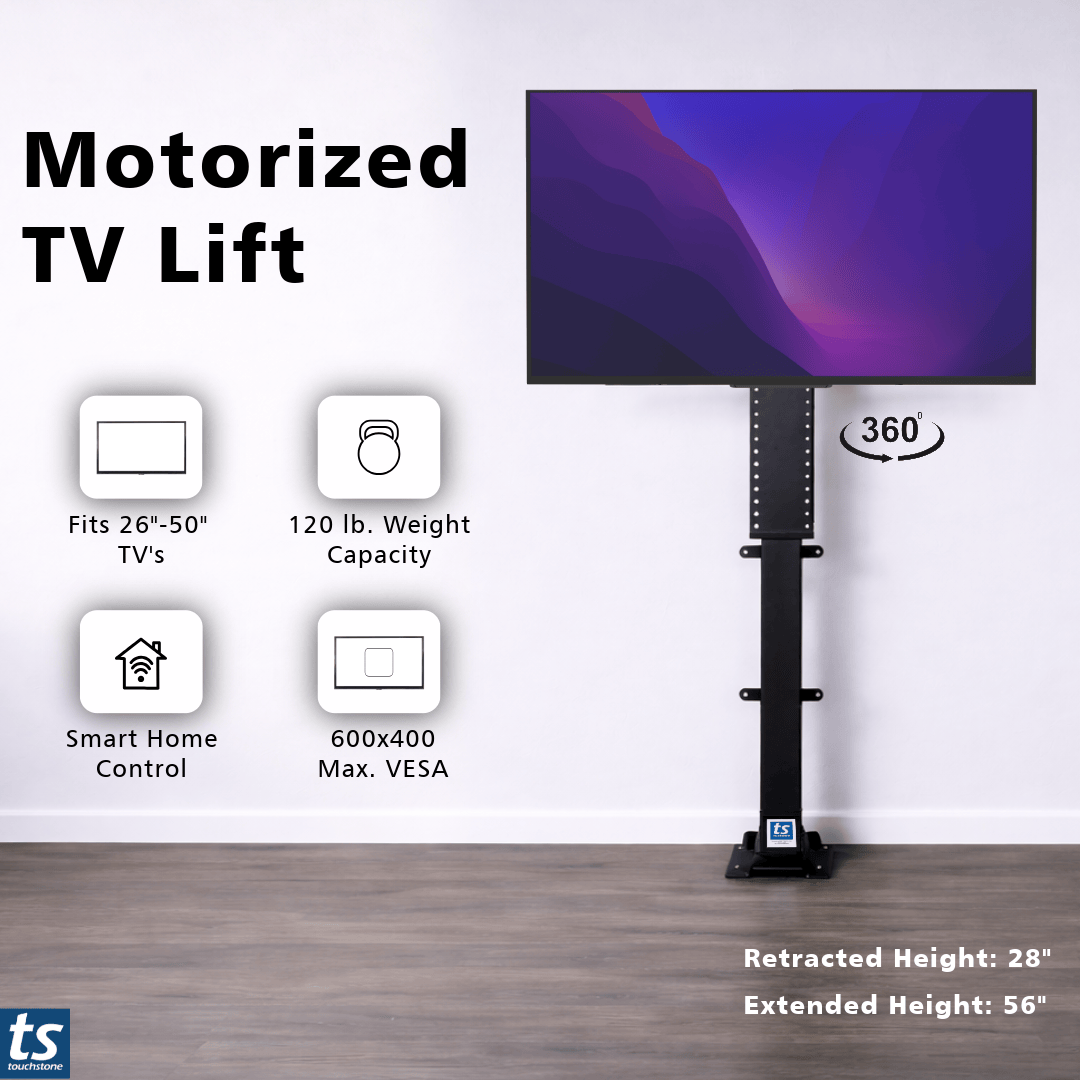

SRV Smart Wifi 32820 Pro 360 SWIVEL TV Lift Mechanism for 50 Inch Flat screen TVs - Alexa® & Google Home® Compatible

• Full 360-degree manual swivel
• Alexa@ & Google Home® compatible
• Use our app to control the lift from your phone via Smart Wifi connection
• Holds up to 120 lb.
• Fits most 50-in. TVs and smaller (diagonal measure)
• Soft start and stop for smooth operation
• Safety stop and reverse for when the lift is running up or down to prevent damage or injury
• Includes wired and wireless RF and IR remotes
• 28 inches of vertical travel

• Add the optional Rolling Cart base with wheels for a mobile rolling TV solution.
• 5-year warranty

Expand your TV viewing area with the revolutionary SRV Pro Swivel motorized TV lift. Manually rotate your TV for a full 360-degree turn. With its slim 7-inch depth, the SRV Pro Swivel for 50-inch and smaller flat screens is ideal for pop up installation in a cabinet or RV entertainment console. The advanced A/V technology includes an IR remote and sensor for easy automation.

You can control your TV lift and memory heights direct from our app or via Alexa & Google Home voice commands.

The IR remote allows you to pair the SRV TV Lift Mechanism with a third party universal remote, so you can control your TV and lift mechanism with the same remote control.

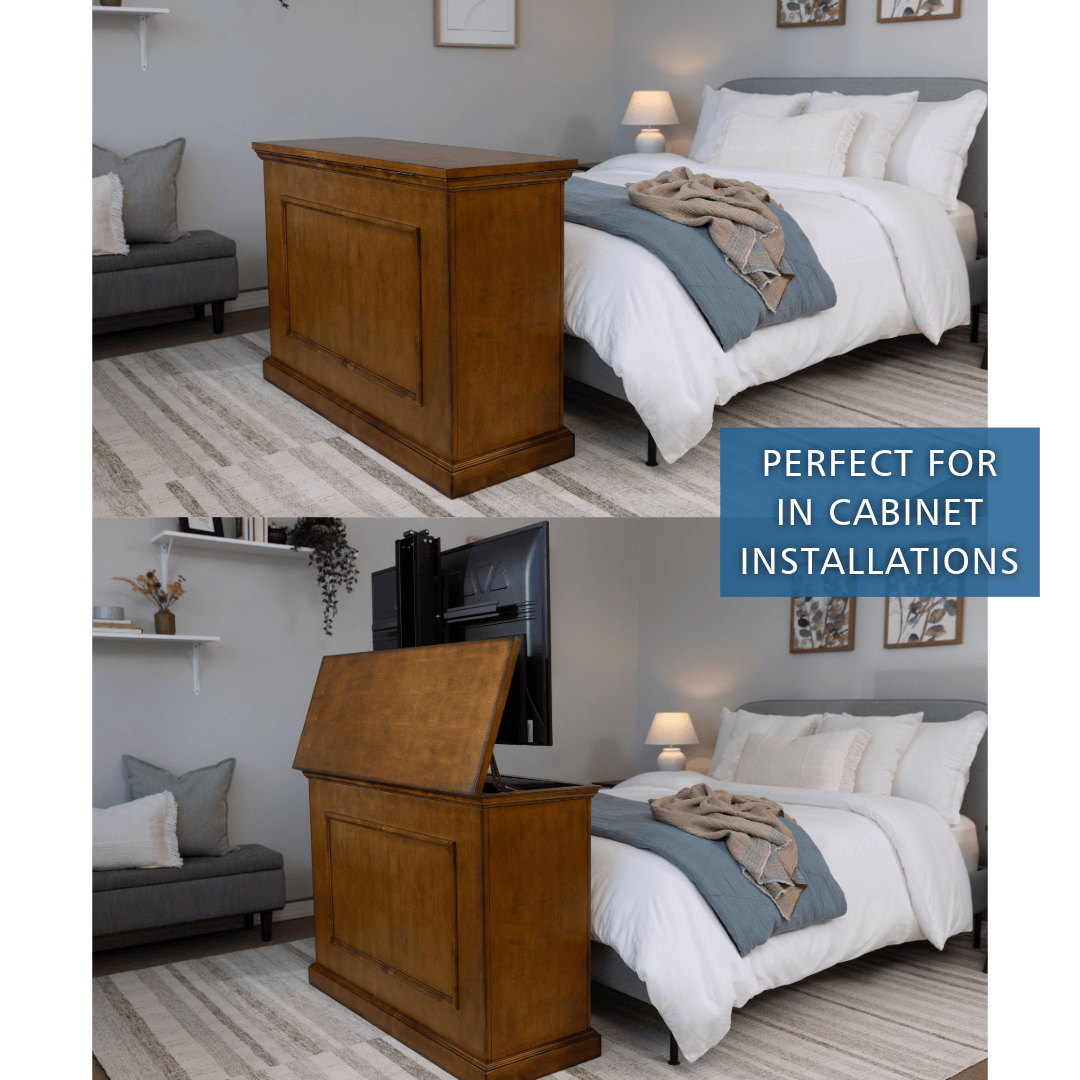

The flat top mount makes it easy to attach a lid for a clean, flush mount installation. Easily attach a matching wood or countertop to the flat top mount for a seamless custom built cabinet with a hidden TV inside. The included flat top lid mount is 17 3/4 x 4 5/16 inches.

The SRV Pro Swivel TV Lift includes Touchstone’s unique “C” bracket for effortless flat screen TV height adjustment. The “C” bracket gives you an extra 5 inches of additional height adjustment between the top of the lift and the counter or cabinet top. The wired remote has a visual display so you know precisely how high the lift is raised.

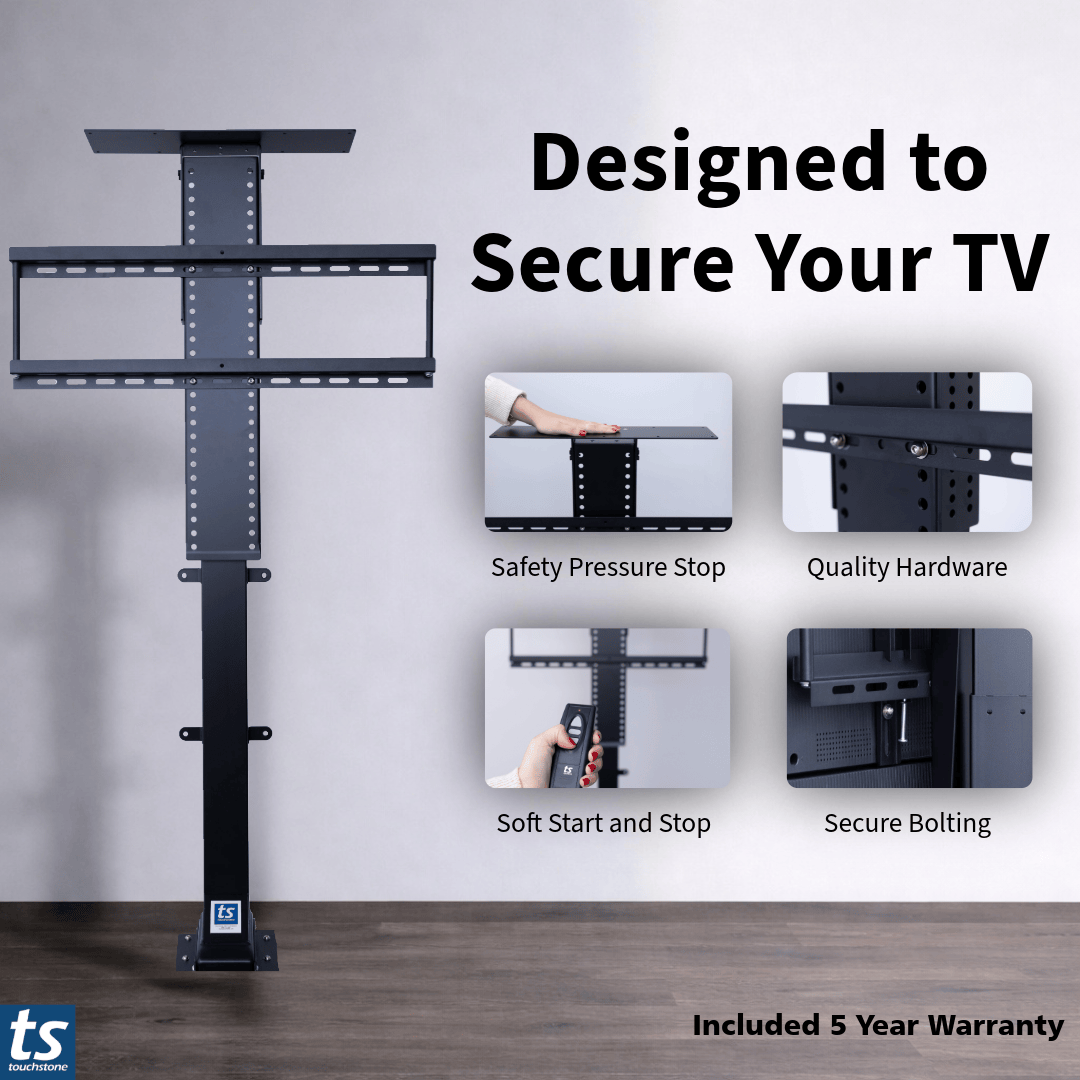

The soft start and stop feature ensures smooth operation as the lift raises or lowers. The safety stop automatically reverses direction when change in force is detected during the lifting or lowering process to protect users and equipment.

The heavy duty 1.5mm steel SRV Pro Swivel TV Lift with a 24v motor lifts up to 120 lb. The SRV TV Lift includes a 5-year worry-free product warranty - the best warranty offered in this price range, compared to competitors.

The SRV Pro Swivel measures 27 5/8 inches H x 7 inches W x 7 inches D (including the brackets that connect to the back of the TV) and lifts to a full height of 55 5/8 inches in seconds with a lift capacity of 120 pounds. Designed to fit flat screen televisions and monitors up to 50 inches (diagonal measurement).

The SRV Pro TV Lift includes Touchstone's Universal Quick Connect system. This universal hardware kit makes it easy to install any flat screen TV in minutes. The Touchstone Universal Quick Connect System includes compatible bolts and machine screws to fit most TV brands and models. With the right hardware for your TV, the SRV Pro TV mounting bracket securely locks your TV in place.

The SRV Rolling Cart option adds a rolling cart base to the SRV Pro TV lift, creating a movable and adjustable TV stand for conference rooms, classrooms and offices. For outdoor entertainment, the rolling cart base makes it easy to wheel your TV outside temporarily. The study heavy duty 1.5mm steel base includes four 360-degree swivel locking wheels and a digital display wired remote, which is a handy alternative to the remote control.

Available exclusively at Amazon, the Touchstone Valueline 30009 TV Lift offers many of the same features as the SRV Pro Swivel 32820. The SRV series adds advanced technology including IR technology and a longer 5-year warranty.

Documents

• 32820 - SRV 32820 PRO 360 Swivel TV Lift Manual
• SRV Wifi TV Lift Setup Manual
• 32820 - SRV 32820 PRO 360 Swivel TV Lift Dimensional Drawing

Specifications

• Lift raises to the full height of 55 5/8 inches
• Fully depressed measures 27 5/8 inches H x 7 inches W x 7 inches D (Including TV mount brackets, does not include TV depth)
• Holds up to 120 lb.
• Durable Steel Construction with 24 V Motor makes operation quiet and reliable
• Universal Quick Connect system for mounting TV to lift is easy to use and install
• Hardware kit includes all necessary bolts and screws and is compatible with most flat panel TV in the market today
• Includes wireless RF and IR remote control and a wired handset control
• Supports TVs with VESA mounting patterns up to 400mm wide by 400mm high
• Safety stop while raising and lowering
• Soft start and stop
• Lift not designed for drop down use

Dimensions

• Lift Dimensions: 27 5/8 inches H x 7 inches D

Optional Add On SRV Rolling Cart Specifications:

• Product weight: 22 lb.
• Shipping weight: 25 lb.
• Product Dimensions: 21.6 x 22.25 x 33.0 x 5.1 inches

Dimensional Drawing
