Whisper Lift PRO XL 23601 Advanced Lift Mechanism for 85 Inch Flat screen TVs

Product Highlights

• 49 inches of travel
• Durable steel construction securely hold your 85 inch flat screen
• 24V motor quietly lifts TV up to 96.5 inches
• Utilizes a single piston actuator for optimal reliability
• Built-in IR sensor for pairing with universal remotes
• 12V trigger works with automation
• Lift height memory feature remembers your preferred viewing height
• Includes universal hardware kit and quick connect system for easy installation
• Combined 200 pound weight capacity for pop-up application. Combined 125 pound weight capacity for drop-down application. (TV must be 75 lbs or less if using the add on swivel bracket)

Overview

The patented Whisper Lift® PRO XL TV Lift is Touchstone's advanced lift, constructed from durable steel for unmatched strength and stability and is powered by our whisper quiet 24V motor. The Whisper Lift® PRO XL TV Lift is equipped to provide the power and durability you need in your TV lift mechanism, while providing advanced features like 12v trigger, IR capability, and ability to set the lift height.

The Whisper Lift® PRO XL TV Lift measures 47.5 inches H x 10 inches W x 7 inches D (including brackets that connect to back of TV) and lifts to a full height of 96.5 inches in under a minute. That is 49 inches of vertical travel in less than 60 seconds. Its durable steel construction is designed to fit and safely secure flat screen TV's up to 85 inches.

Touchstone's Universal Quick Connect system makes it easy to install any flat screen TV in just minutes. A universal hardware kit comes with each TV lift kit which includes bolts and machine screws to accommodate most brands and models of flat screen TVs. The Whisper Lift® PRO XL TV Lift features a unique mounting mechanism which fastens your flat screen TV to the Quick Connect Bracket for guaranteed safety and security. While most Whisper Lift® are installed within our Touchstone™ TV Lift Cabinets to lift your flat screen upward, these lifts can also be mounted to your ceiling or wall and drop your flat screen downward, as shown here.

The Whisper Lift® PRO XL TV Lift operates by using a single piston actuator in an enclosed system for completely safe operation with virtually zero wear and tear. The steel external casing of the lift provides added protection for the lift internal parts, which keeps it clean and free of dirt and any debris.

The Whisper Lift® PRO XL TV Lift is the highest quality television lift on the market. Our customers adore this product. It's the most durable, quiet, and reliable lift mechanism out there despite its low price. You may find other more expensive lifts from other brands, but do not mistake high mark ups for high quality: the Touchstone™ Whisper Lift® PRO XL TV Lift is the top of the line TV lift. This lift's high quality makes it extremely reliable, as well. You will have to replace your flat screen television long before you ever have to replace this lift: the Whisper Lift® PRO XL TV Lift is built to last.

Optionally, you can upgrade the Whisper Lift® PRO XL TV Lift with our add-on component shelf to store your cable box, game system, DVD player, and other components for only $79.

The add-on component shelf attaches to the TV lift system directly below the flat screen TV and raises or lowers into the cabinet along with you TV when remotely activated.

The shelf provides an area of 16 inches W x 9 inches D on both the left and right side to fit a wide variety of multimedia components.

Just select the add-on component shelf option when placing your order.

Use this versatile TV lift mechanism as a dropdown TV lift, pop up TV lift, floor mount TV lift, ceiling mount TV lift or outside outdoor TV lift.

Specifications

• Lift raises quickly to the full height of 96.5 inches
• Whisper Lift® fully depressed measures 47.5 inches H x 10 inches W x 7 inches D (Including TV mount brackets, does not include TV depth)
• Holds televisions up to 85 inches wide
• 49 inches of travel.
• Durable Steel Construction with 24 V Motor makes operation quiet and reliable
• Single actuator in an enclosed steel casing reduces wear and tear, enhances safe operation, and keeps the lift clean and free of dirt and debris
• Modular design allows for internal components to be easily replaced in just minutes
• Universal Quick Connect system for mounting TV to lift is easy to use and install
• Hardware kit includes all necessary bolts and screws and is compatible with most flat panel TV in the market today
• Includes wireless 1 RF remote control and a wired handset control
• 12v trigger for use with automated systems
• IR sensor for pairing with universal remote controls
• Ability to set lift height, so the lift stops at the same spot every time
• Supports TVs with VESA mounting patterns up to 600mm wide by 400mm high

Unit Dimensions

• Lift Dimensions: 47.5 inches H x 7 inches D (with Roller)
• Unit Weight: 67lbs
• Shipping Dimensions:

• Box Dimensions: 51 inches L x 13 inches W x 9 inches D
• Shipping Weight: 77lbs

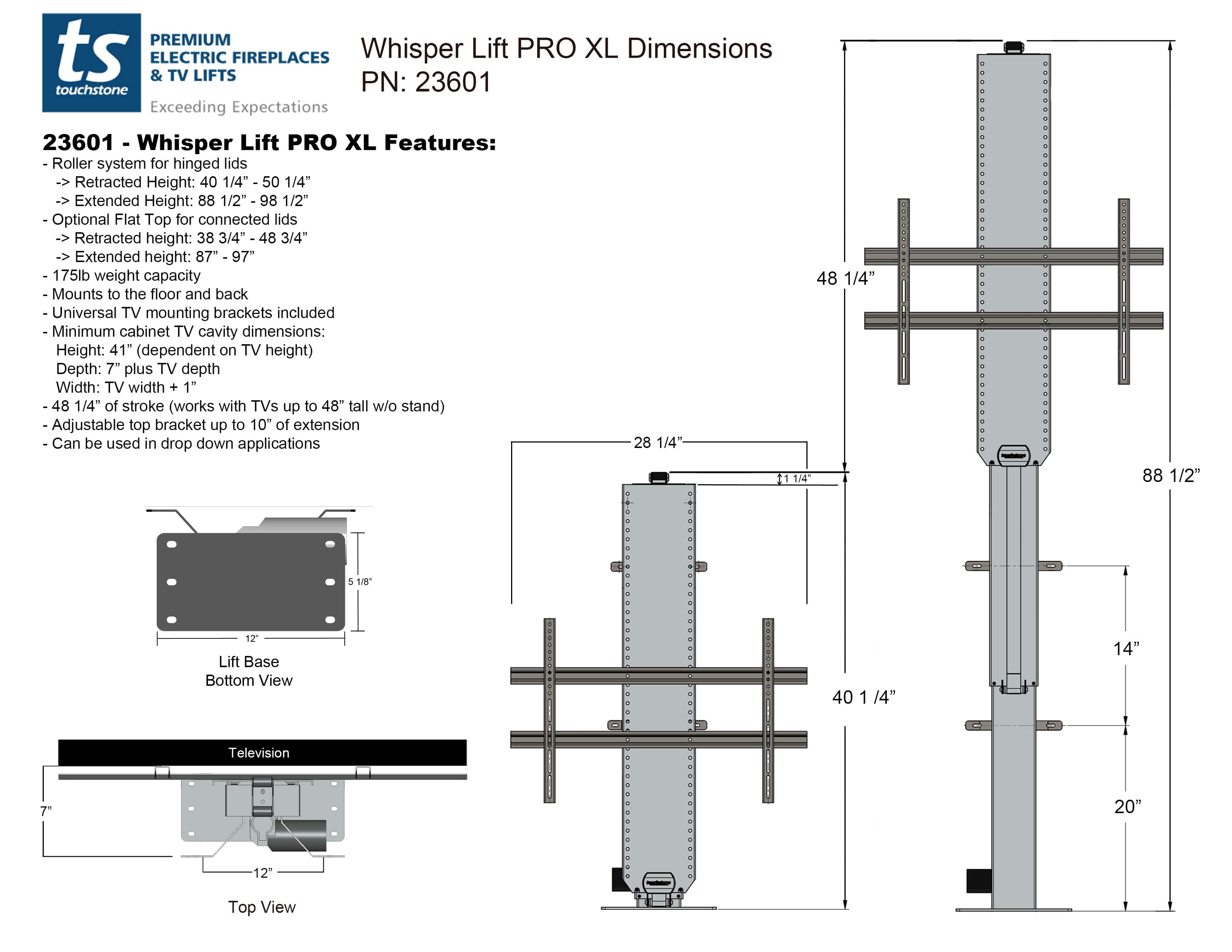

Dimensional Drawing

Documents

• 23601 - Whisper Lift PRO XL TV Lift Manual
• 23601 - Whisper Lift PRO XL Dimensional Drawing

Support Documents

• RF Wireless Remote Control Pairing Instructions

Delivery & Shipping

Touchstone's lift mechanisms are shipped via UPS and FedEx Ground service. If you would like priority shipping, please call us at 888-978-3531 to request a quote.

These deliveries are handled the same way as any UPS or FedEx Ground shipment, so they can be left when you are not home. Please be aware of any possible issues with a drop off delivery if you are not home, or if weather is an issue.

Touchstone™ sends you an email with your order shipment tracking information, so you can check with the shipping carrier directly to track your shipment.

Shopping in Canada?

For customers shopping in Canada, please click here for more information about delivery into Canada.

Return Policy

For more information regarding our return policy, please click here.

Product Protection

Touchstone Home Products™ offers our customers a 5 year standard manufacturers warranty.

Our warranty includes:

• Replacement of any non-functioning lift parts
• Toll-Free Customer Service & Support (English & Spanish speaking)
