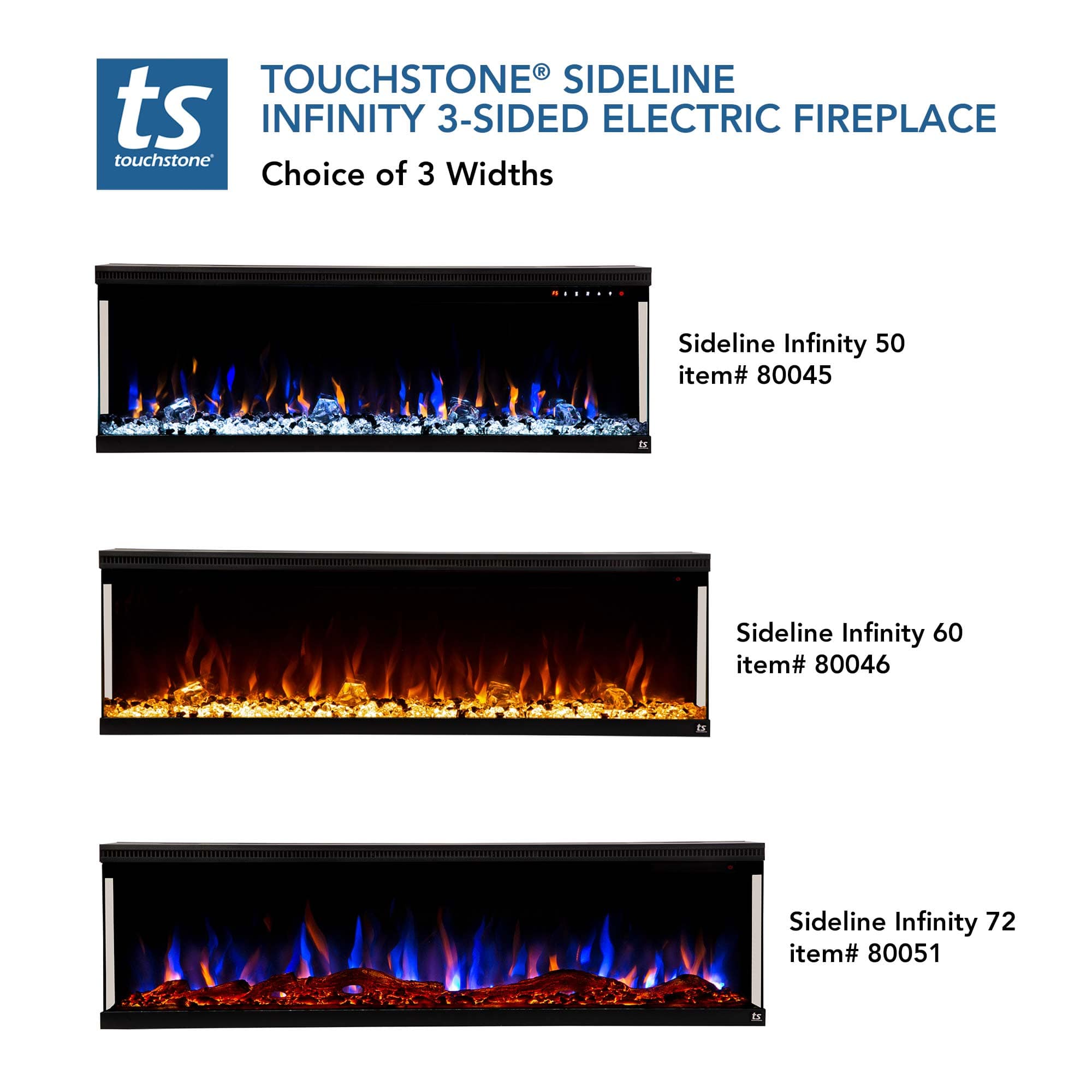

Sideline Infinity 60 Inch 3 Sided Recessed Smart Electric Fireplace 80046

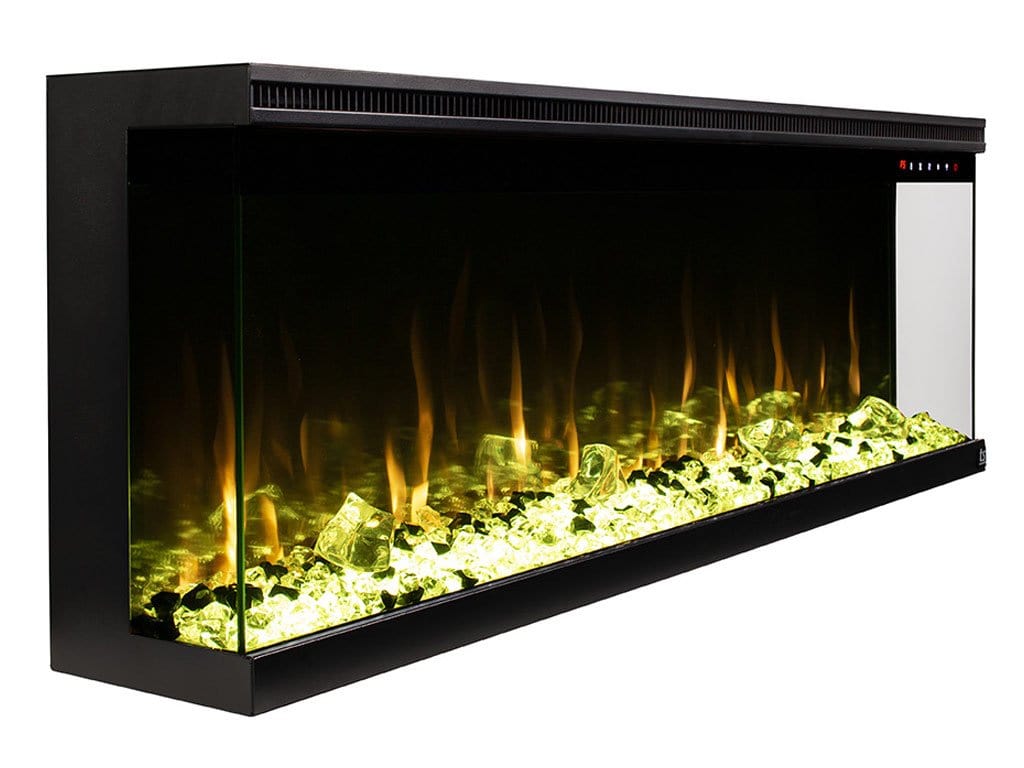

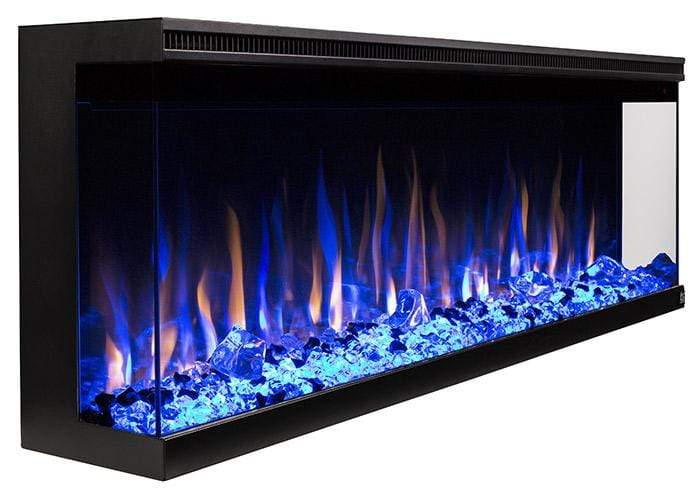

• 3-sided fireplace with see-through glass on the front and sides

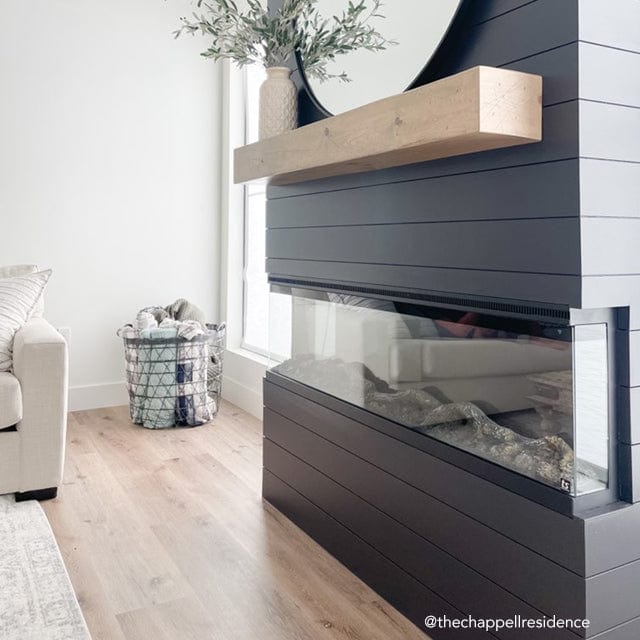

• 4 installation options: three glass sides, left side visible, right side visible or front only visible
• Can be plugged in or hardwired
• Turn on or off by using Amazon Alexa or Google Home

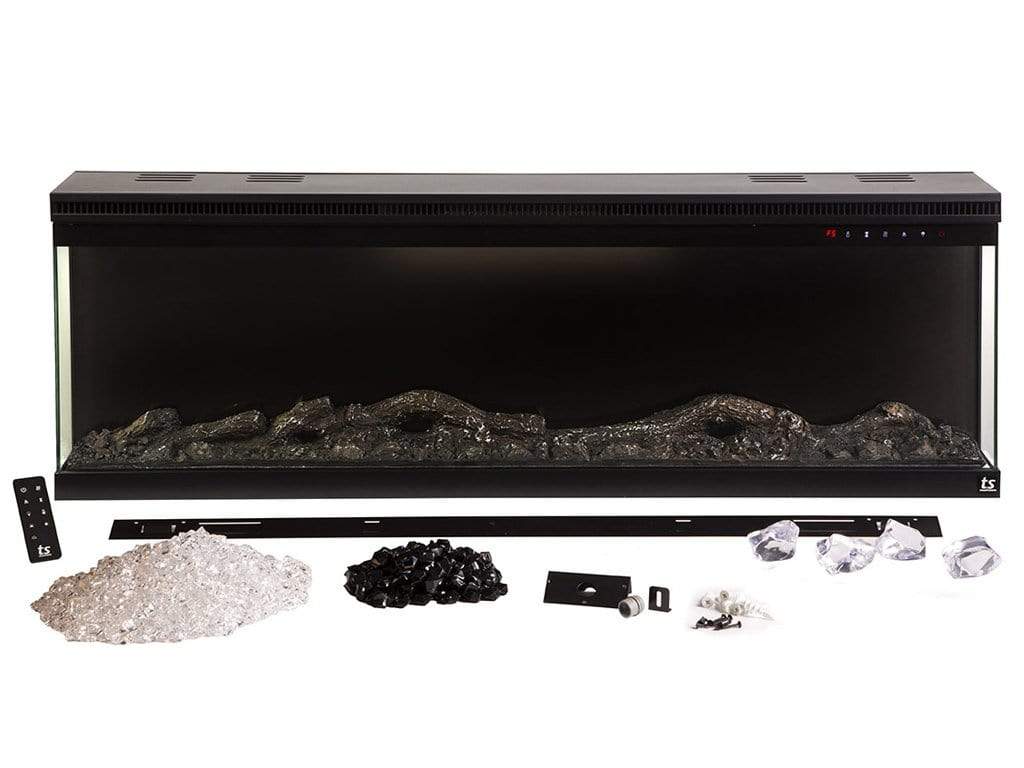

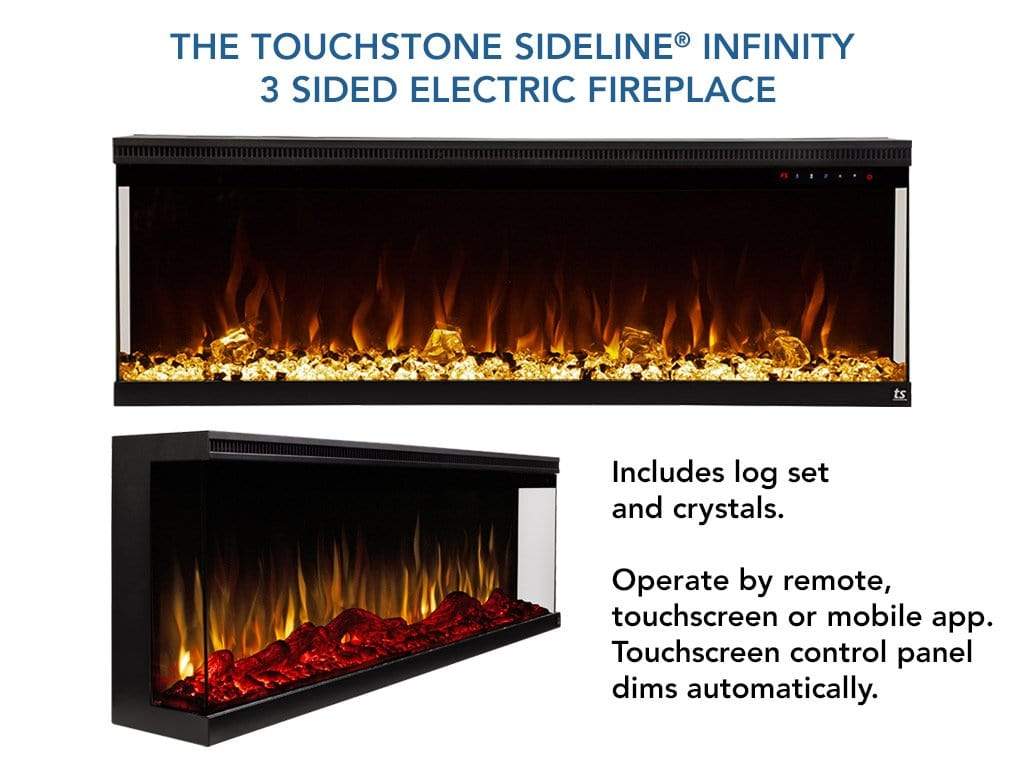

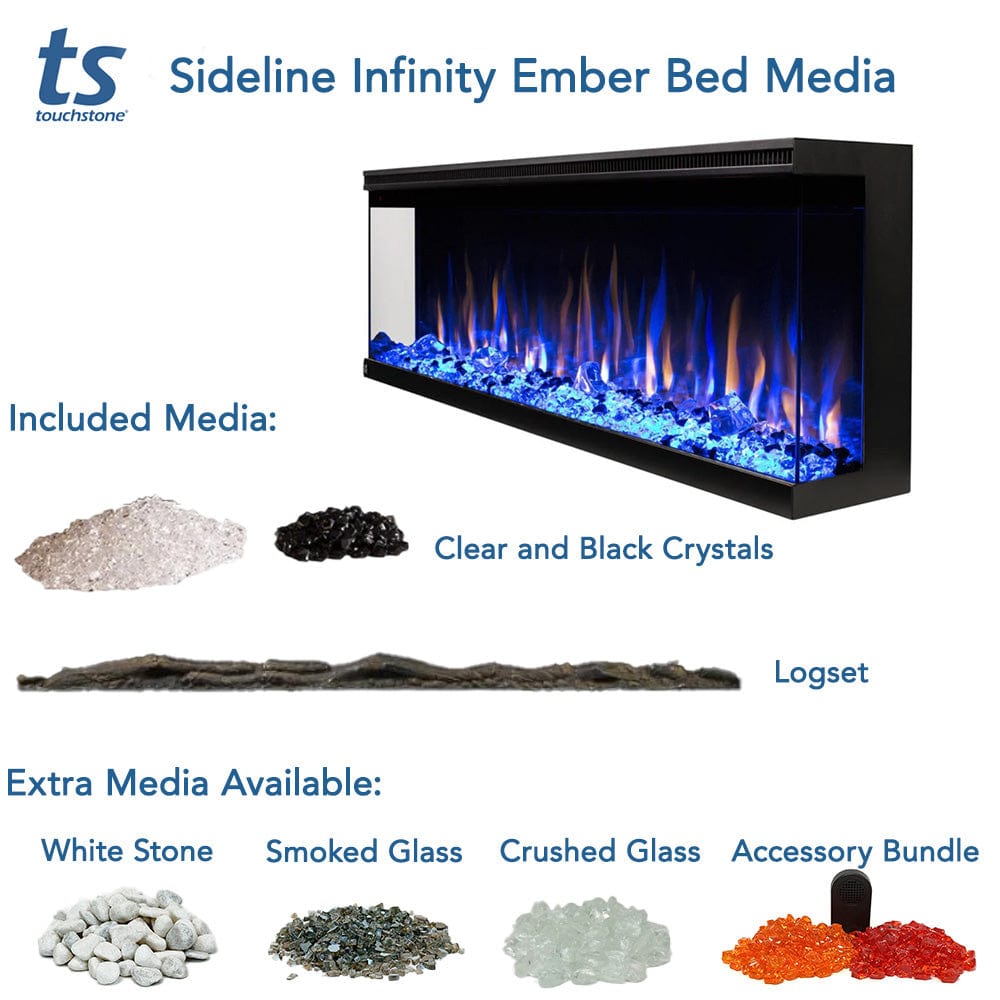

• Includes log set, clear and black crystals
• Touchscreen and remote control
• Enjoy the flames with or without heat

Product Features

• Wi-Fi enabled, Smartphone compatibility
• 2 heat settings: low and high (750W/1500W)
• Thermostat (68-88°F) or constant on
• Supplemental heat up to 400 sq feet.

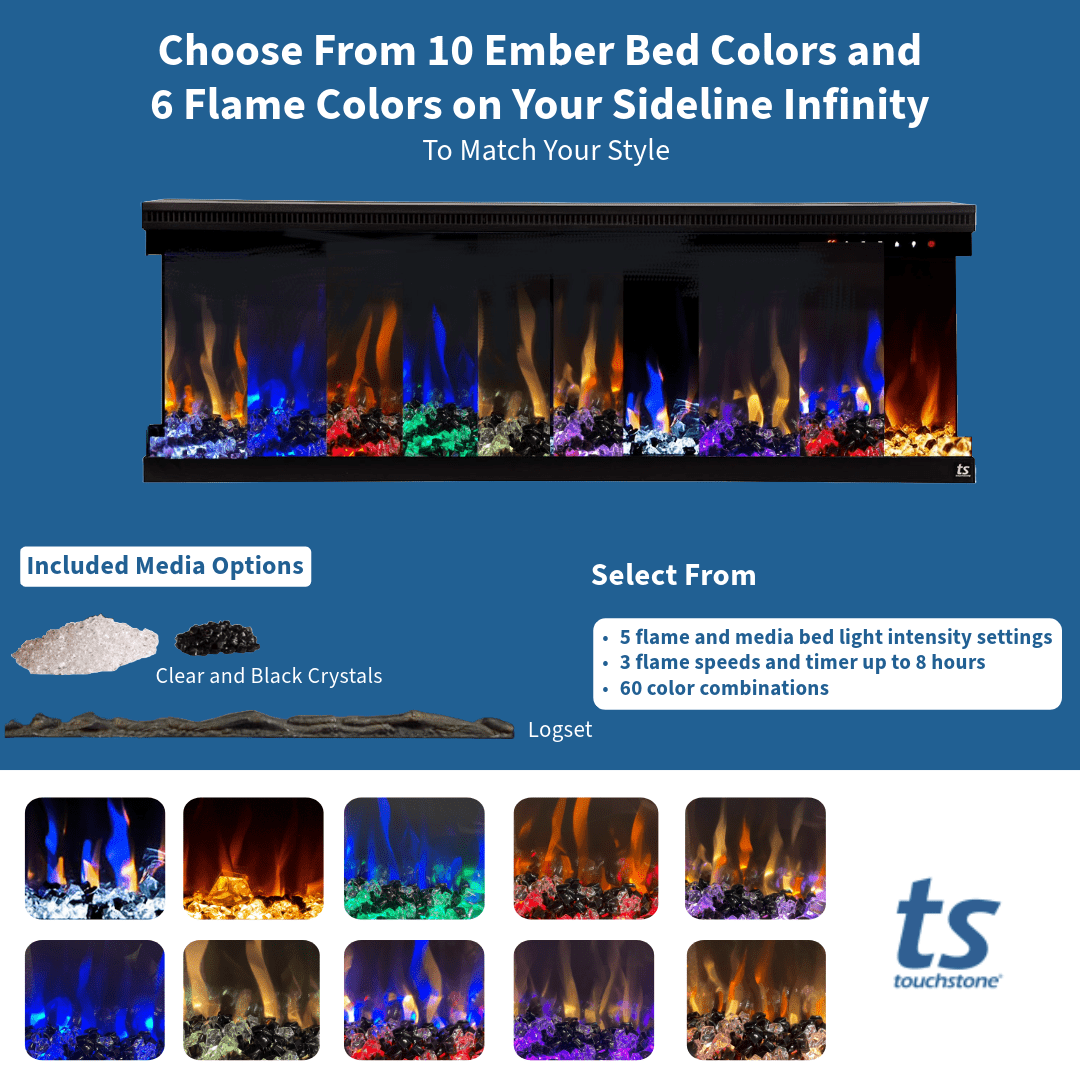

• 6 flame color options and 10 media bed color options
• 5 flame and media bed light intensity settings
• 3 flame speeds and timer up to 8 hours

Experience elegant flames from every angle with the Touchstone Sideline Infinity® 3-Sided Electric Fireplace. This versatile fireplace can be installed in four ways, providing a great view of the hearth from all over your room .The Infinity is an environmentally friendly option to a traditional wood-burning fireplace, ensuring a clean and odorless ambiance.

Realistic Flames

Enjoy the relaxing ambiance and authentic look of the premium LED flame display, reminiscent of a wood or gas burning fireplace. Easily adjust the colors and intensity of the flames and flame bed using the touchscreen, app, remote control or Alexa and Google Home. Equipped with 10 flame and 6 flame bed colors.

Cool to the Touch Glass

The Sideline Infinity’s glass front and sides remain cool to the touch, providing a safer alternative to a wood burning fire.

Easy, Versatile Installation

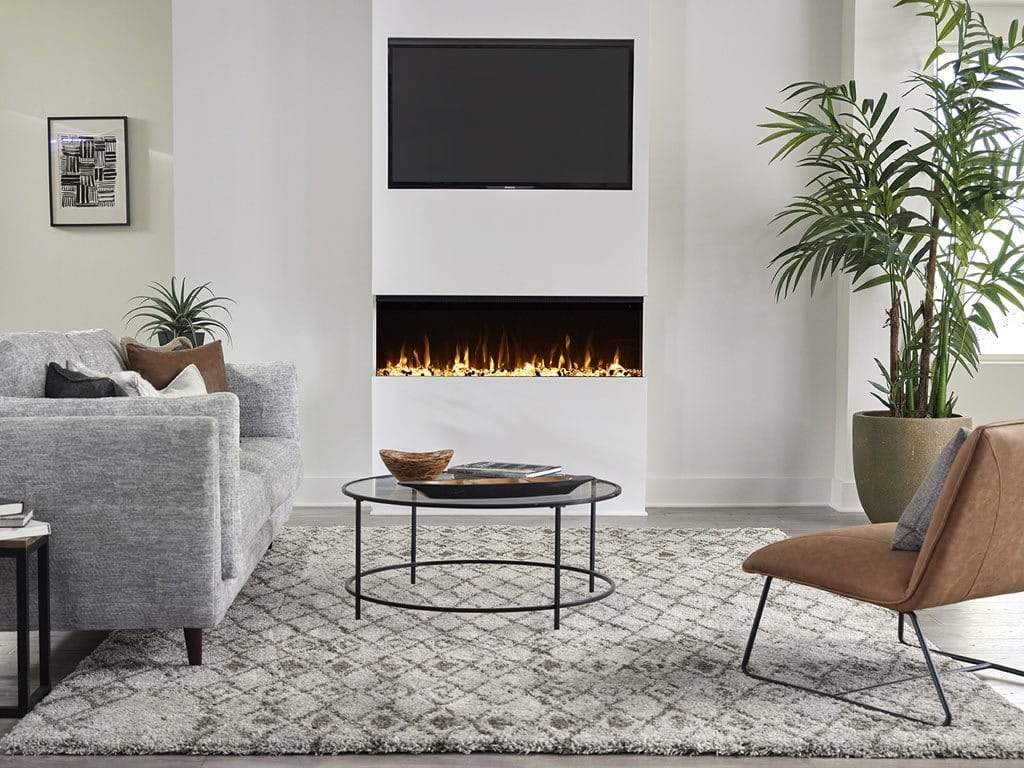

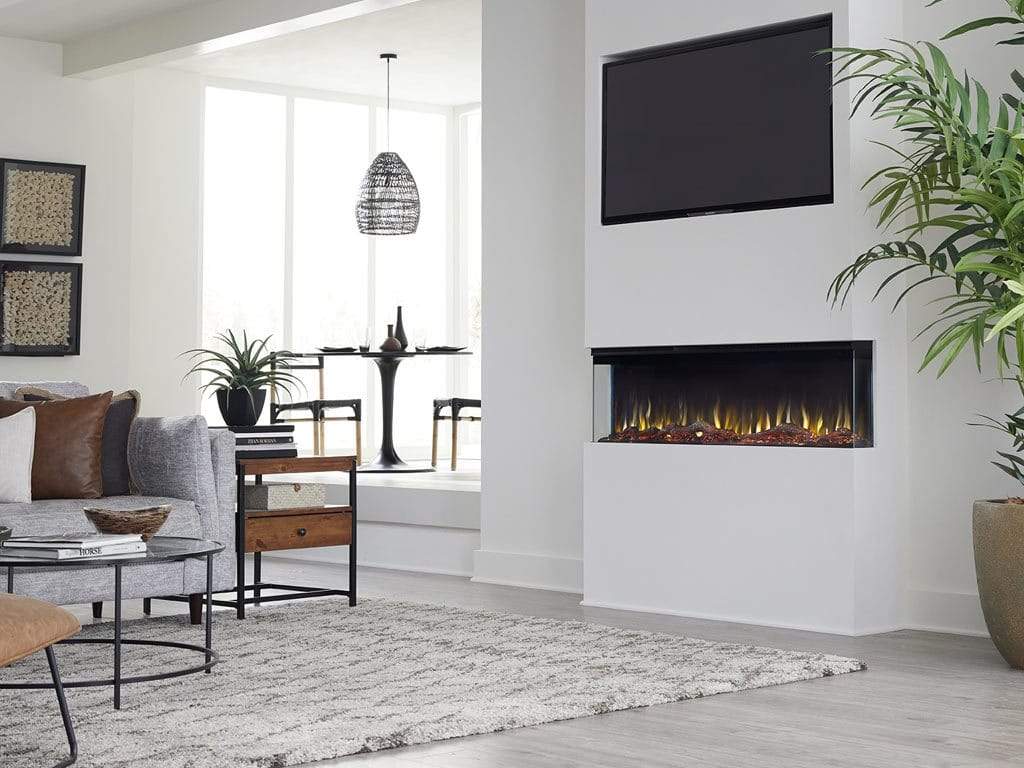

Enhance any room with the slim, low-profile, modern fireplace style of the Sideline Infinity. It can be plugged into an outlet or hardwired, and a mounting bracket is included. Choose from three installation options for the desired view. For safety, ensure a safe clearance from the fireplace heating vent by placing the Sideline Infinity at least 8 inches below the ceiling or a wall-mounted TV. We recommend placing the fireplace at least 6 inches from the floor.

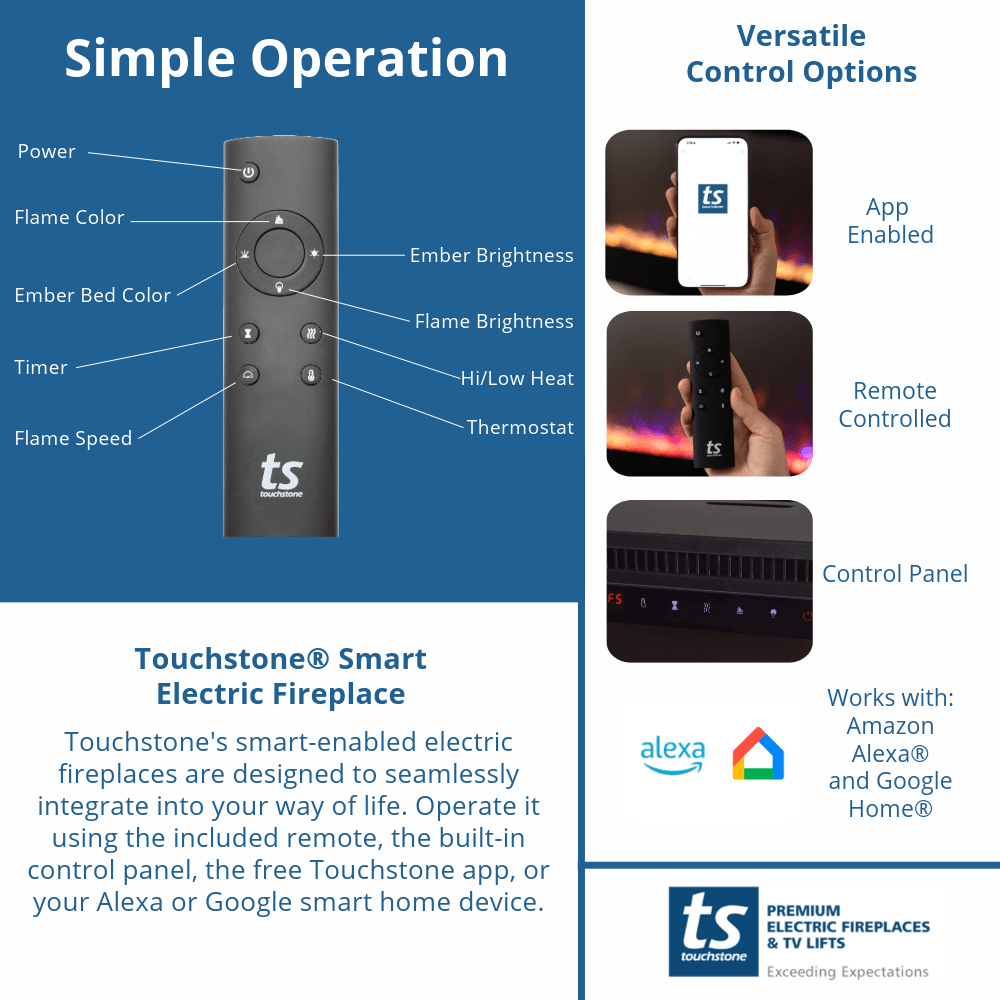

Easy Operation - WiFi Enabled

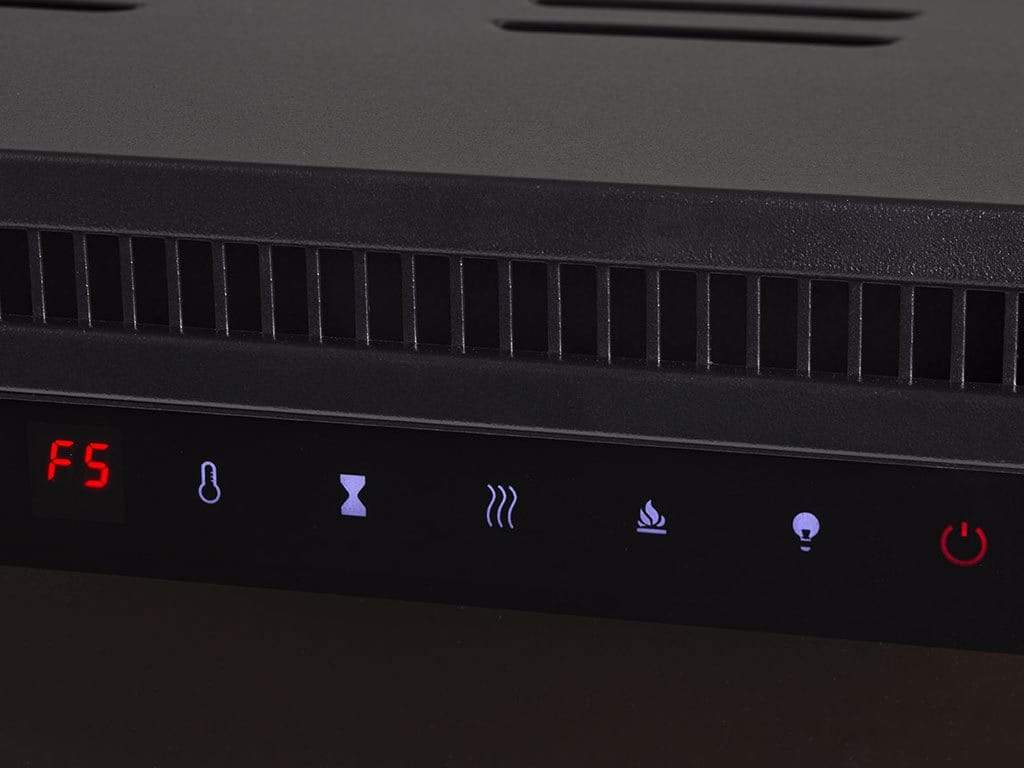

Adjust the flames, flame bed and heat settings by touchscreen, remote control or smartphone app. The touchscreen lights dim a few seconds after adjustment. See the WiFi Set Up Guide for more information.

The included remote control requires AAA batteries (not included).

Transform your space with ease using our add-on Encase Wood Mantel. Crafted from 100% real wood pine, this mantel requires no assembly with included hanging boards and hardware. Its solid wood construction provides a durable platform for display and storage, making it the ideal addition to your Touchstone fireplace.

All Touchstone mantels are designed for use with Touchstone Electric Fireplaces. If considering use with a different fireplace, we recommend consulting a professional installer for compatibility and safe installation.

Documents

• 80046 - Sideline Infinity® 60 Electric Fireplace Wi-Fi Setup Guide
• 80046 - Sideline Infinity® 60 Electric Fireplace Owners' Manual

• 80046 - Sideline Infinity® 60 Electric Fireplace Dimensional Drawing

Specifications

• Frame Color: Black
• Fireplace Dimensions: 60 inches wide x 17.25 inches high x 8 inches deep
• Firebox Dimensions: 60 inches wide x 17 inches high x 8 inches deep
• Rough Opening Dimensions: 60.25 inches wide x 17.5 inches high x 8 inches deep
• Shipping Carton Dimensions: 65 inches wide x  30 inches high x 20 inches deep
• Fire Dimensions: 60 inches wide x 12.4 inches tall
• Part number: 80046
• Heater type: Coil wire heater with blower
• Watts: 1,500
• BTU's: 5,118
• Room Coverage: 400 ft.
• Fireplace Weight: 110 pounds
• Shipping Weight: 130 pounds
• Voltage: 110v-120v
• Amperes: 12

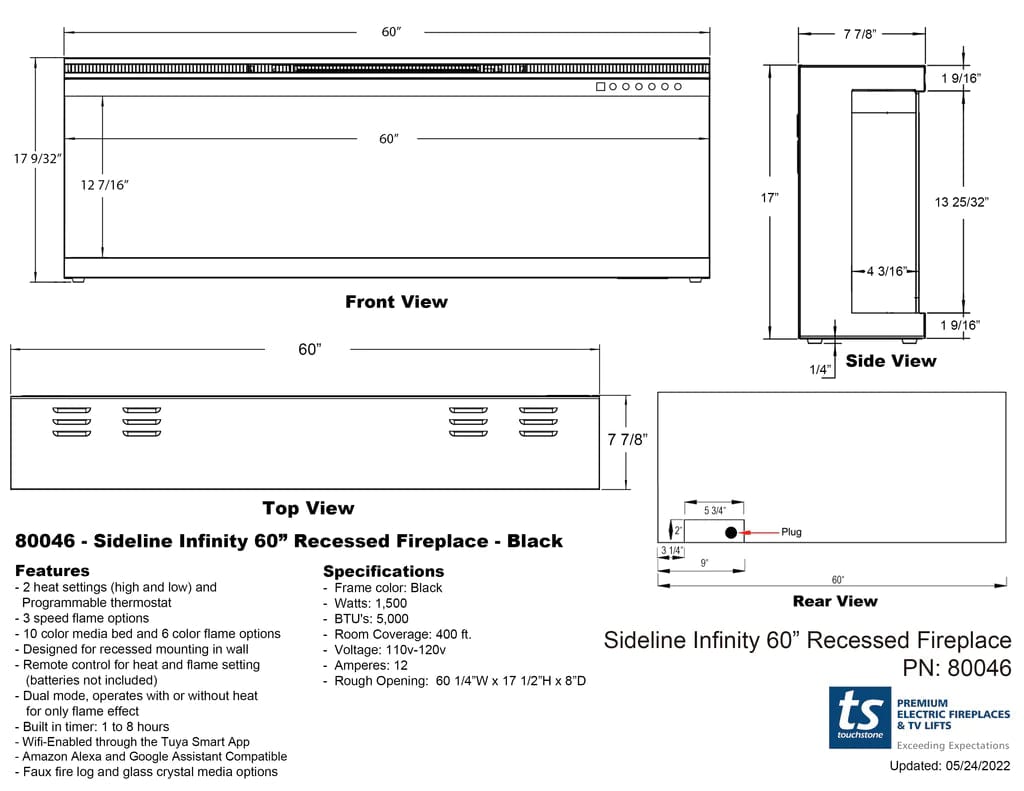

Dimensional Drawing
