SRV Smart Wifi 33920 Pro 360 Swivel TV Lift Mechanism for 70 Inch Flat screen TVs - Alexa® & Google Home® Compatible

5 reviews

Rolling Cart:

Sale price $899.00
Regular price $1,399.00

FOR 70-INCH TVs AND SMALLER. Manual swivel fully rotates for the best view. Pop up motorized lift has 39 inches of travel. 3 remotes (wired & wireless RF and IR). Optional rolling base cart adds easy mobility.
SKU: 33920
Product Details
  • Full 360-degree manual swivel
  • Alexa® & Google Home® Compatible
  • Use our app to control the lift from your phone via Smart Wifi connection
  • Holds up to 120 lb.
  • Soft start and stop for smooth operation
  • Safety stop and reverse for when the lift is running up or down to prevent damage or injury
  • Includes wired and wireless RF and IR remotes
  • 39 inches of vertical travel
  • Add the optional Rolling Cart base with wheels for a mobile rolling TV solution.
  • 5-year warranty
Overview

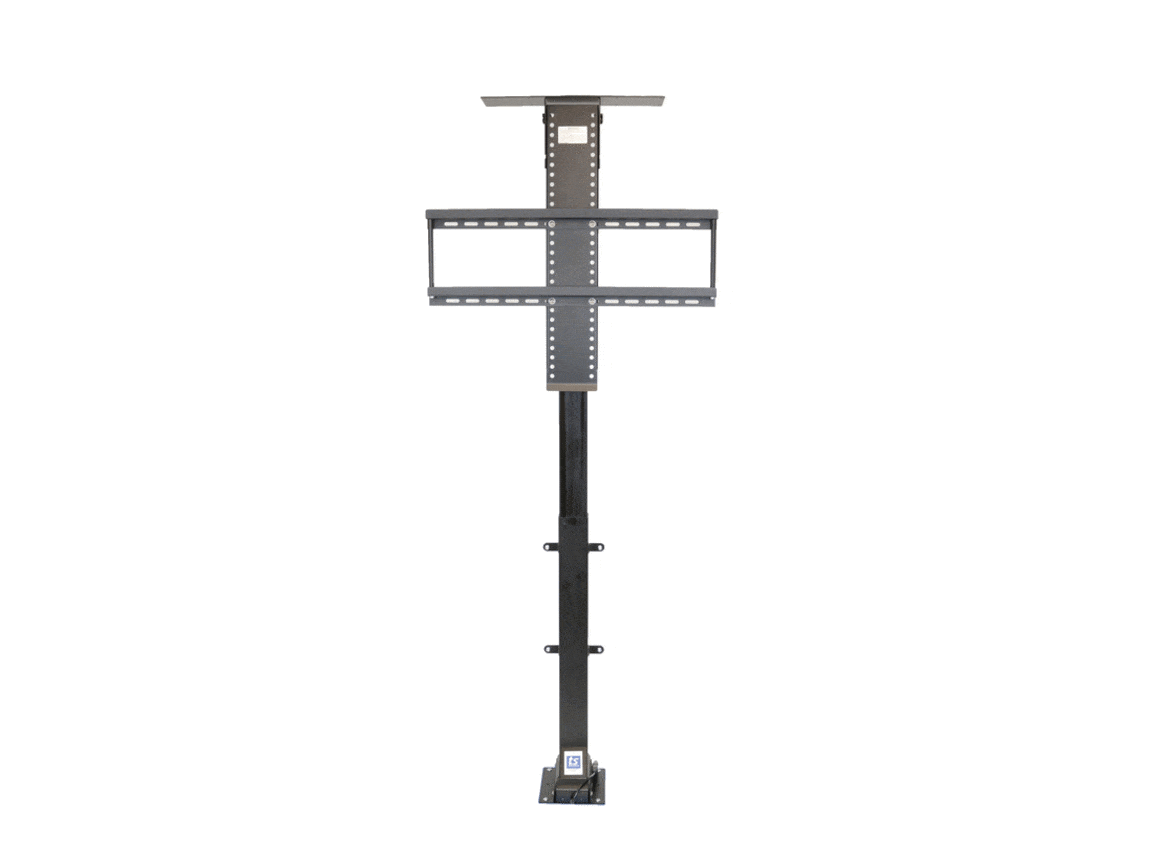

Designed for large flat screen TVs, the SRV Pro Swivel TV Lift gives you the flexibility to rotate the lift manually in a full 360-degree revolution. Mount the sturdy lift in a cabinet or the floor for a pop up hidden television. An IR remote adds advanced automation.

Alexa® & Google Home® Compatible

You can control your TV lift and memory heights direct from our app or via Alexa & Google Home voice commands.

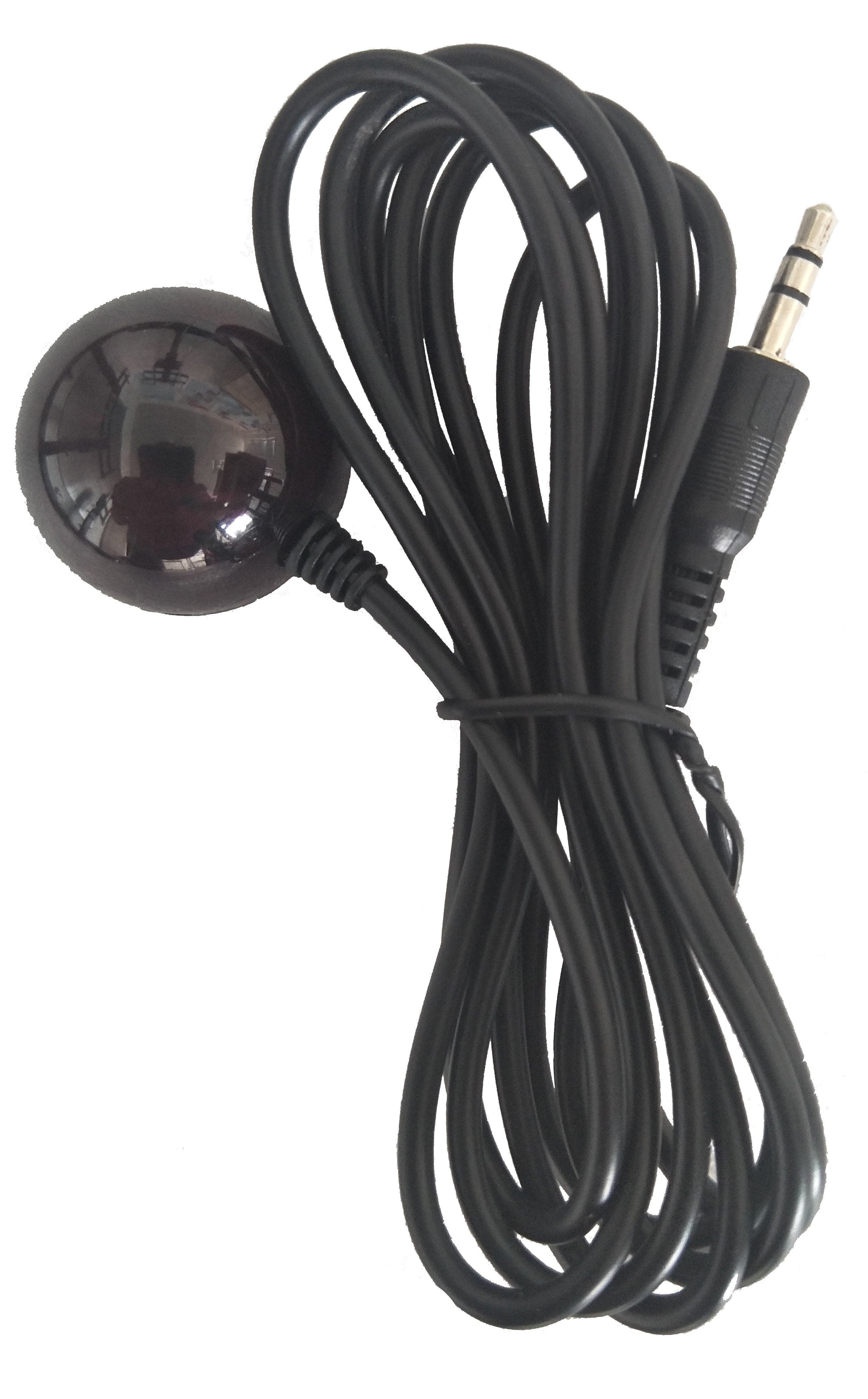

IR Remote For Easy Pairing With Universal Remotes

The IR remote allows you to pair the SRV TV Lift Mechanism with a third party universal remote, so you can control your TV and lift mechanism with the same remote control.

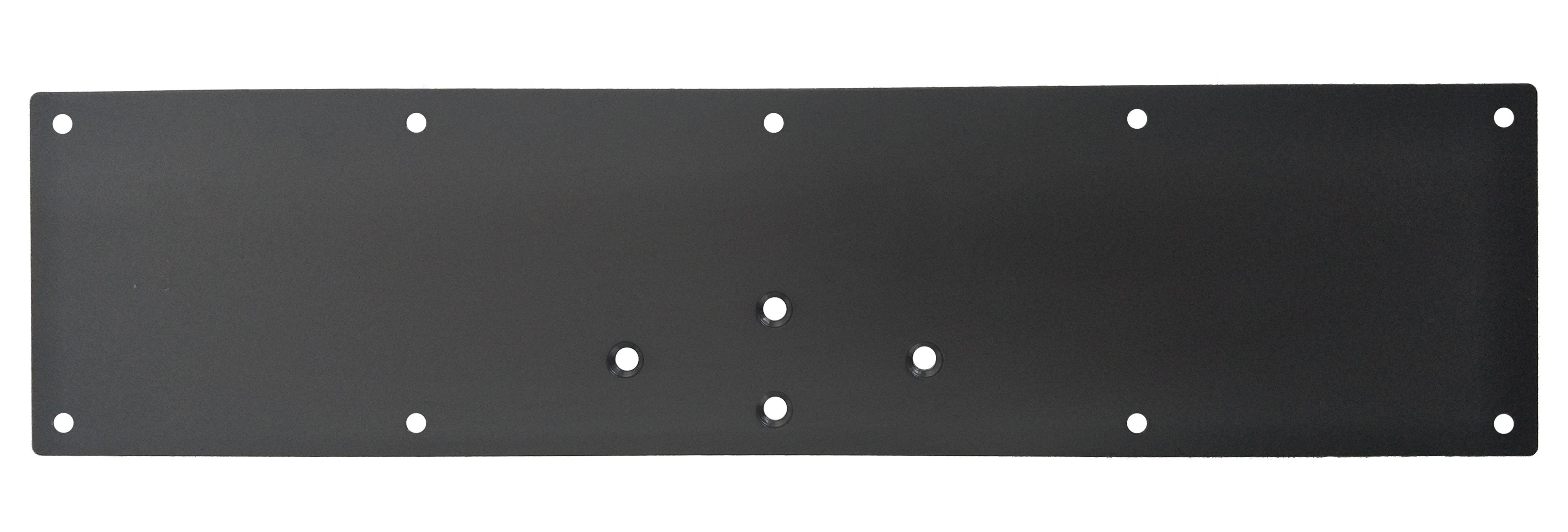

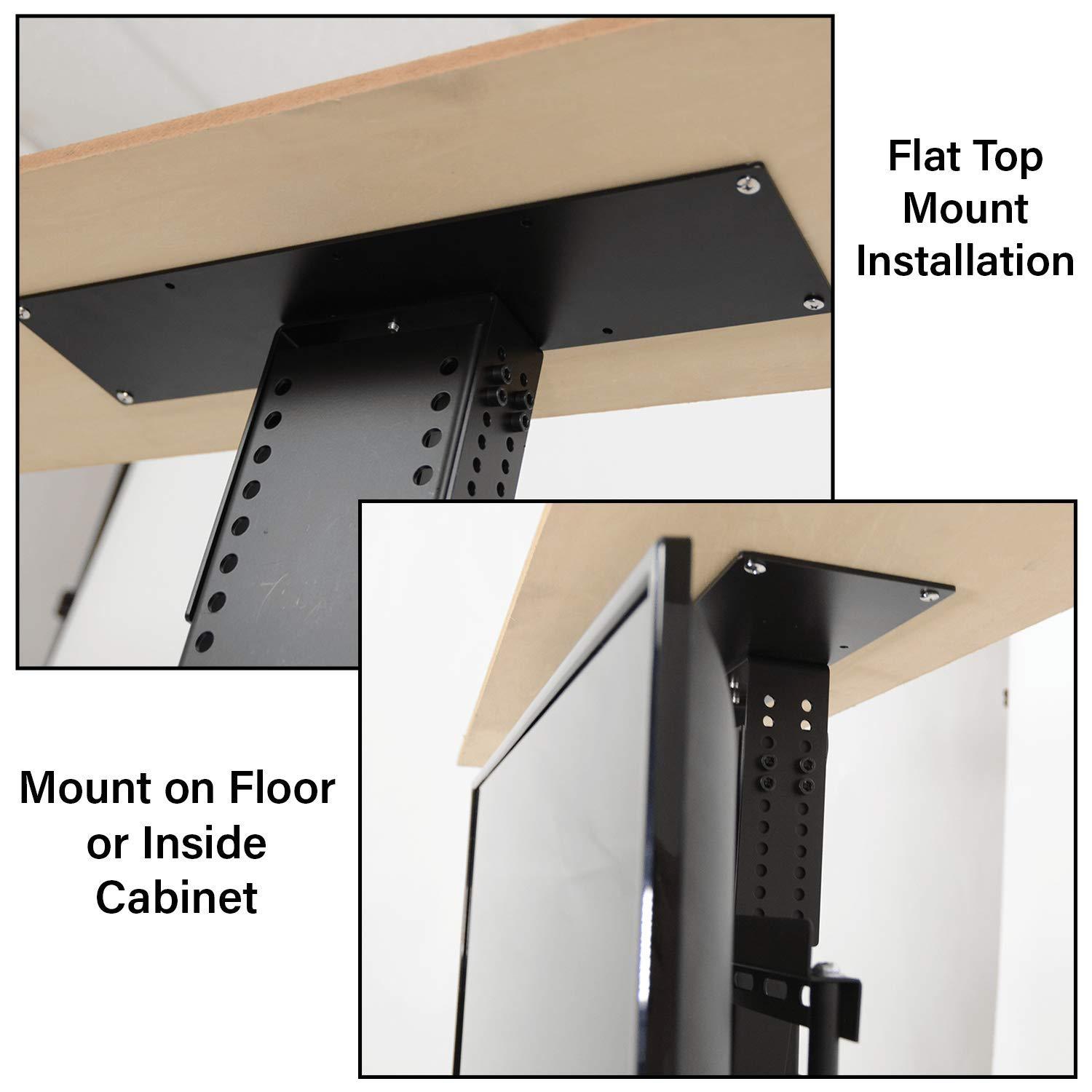

Includes Flat Top Mount For Easy Flush Lid

The flat top mount makes it easy to attach a lid for a clean, flush mount installation. Easily attach a matching wood or countertop to the flat top mount for a seamless custom built cabinet with a hidden TV inside. The included flat top lid mount is 17 3/4 x 4 5/16 inches.

Alexa® & Google Home® Compatible

You can control your TV lift and memory heights direct from our app or via Alexa & Google Home voice commands.

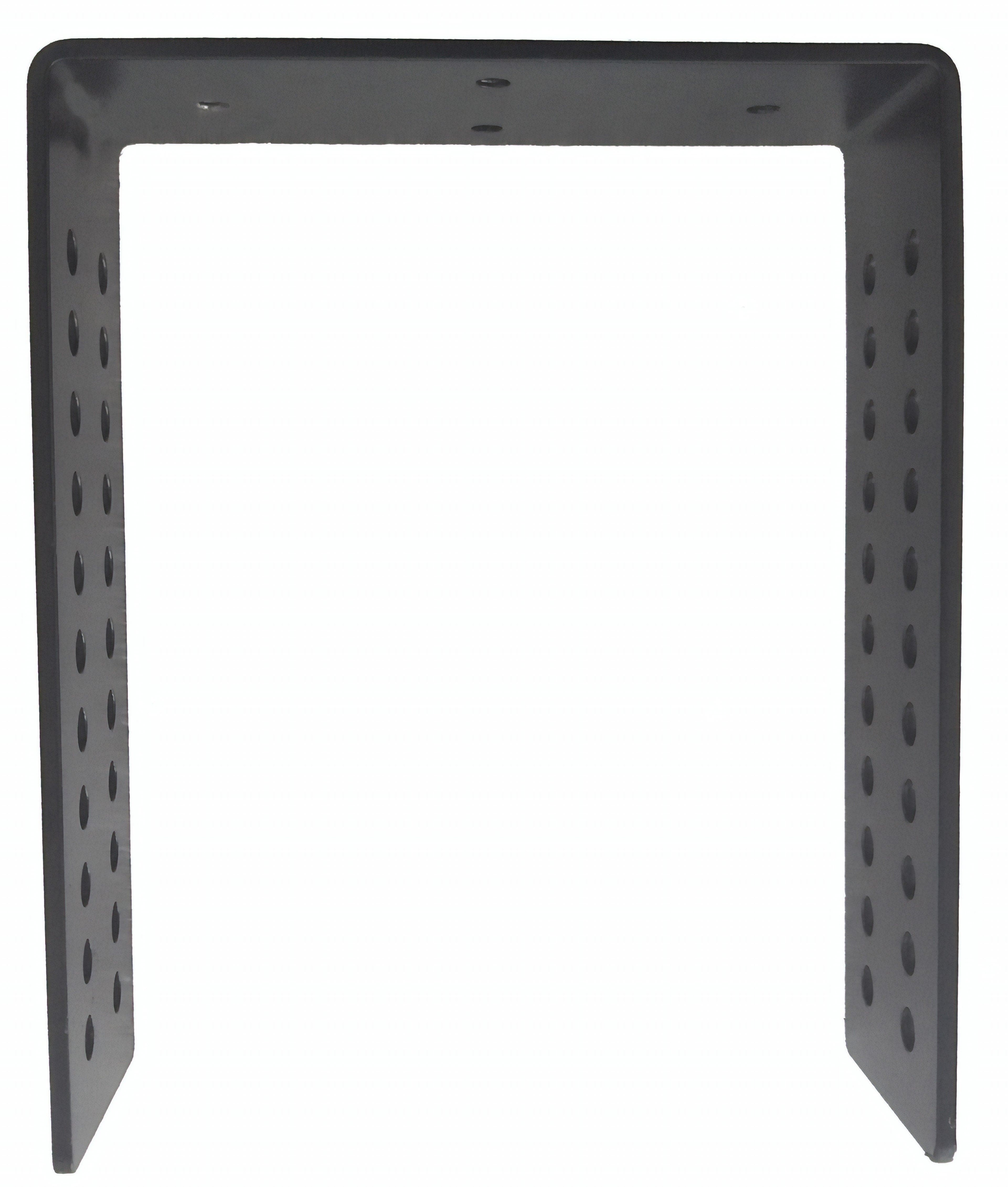

Unique "C" Bracket For Perfect Height

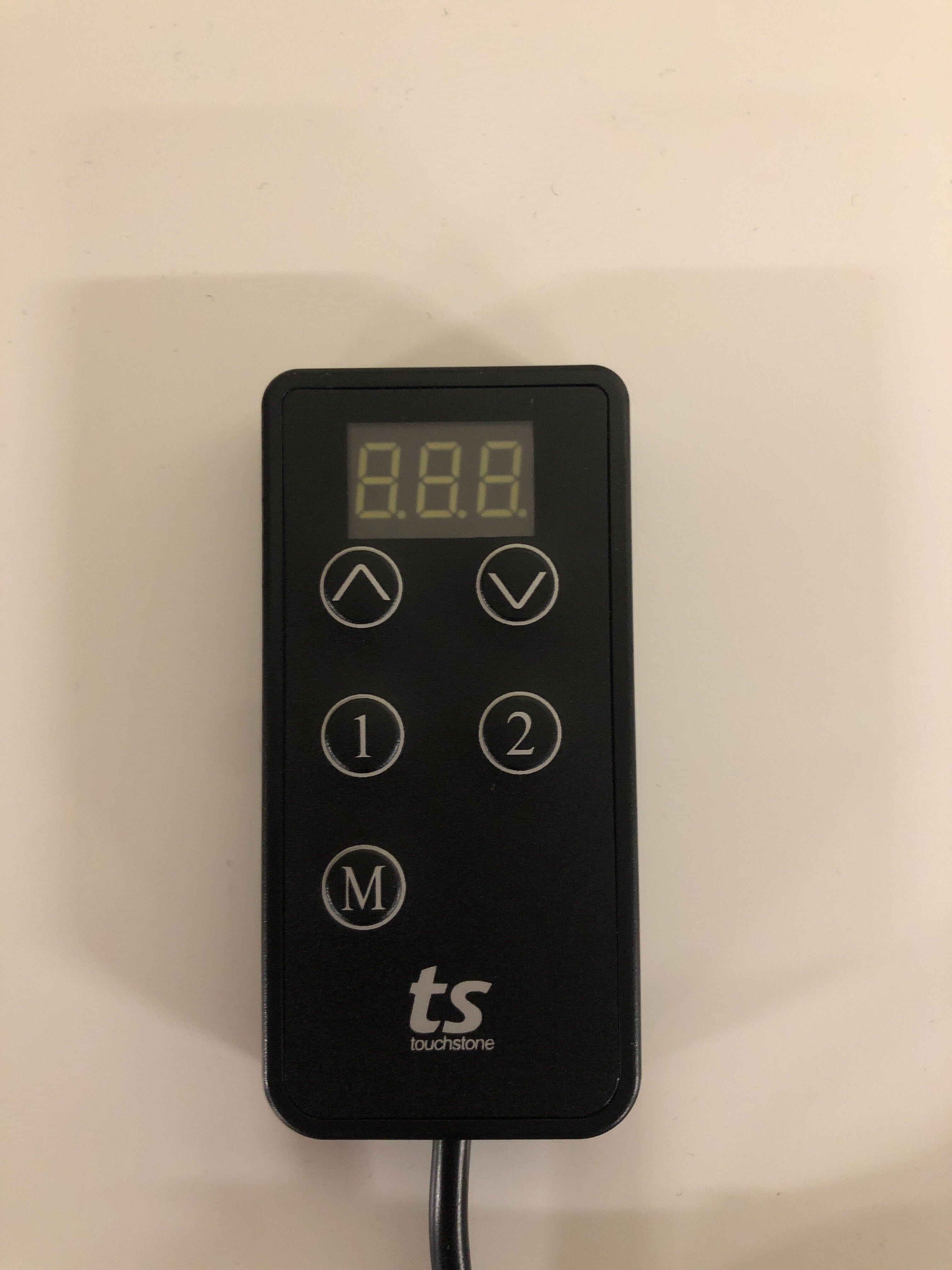

The SRV Pro Swivel TV Lift includes Touchstone’s unique “C” bracket for effortless flat screen TV height adjustment. The “C” bracket gives you an extra 5 inches of additional height adjustment between the top of the lift and the counter or cabinet top. The wired remote has a visual display so you know precisely how high the lift is raised.

Extra Protection with Soft Start/Stop and Safety Stop

The soft start and stop feature ensures smooth operation as the lift raises or lowers. The safety stop automatically reverses direction when change in force is detected during the lifting or lowering process to protect users and equipment.

Smooth Operation, Built to Last

The heavy duty 1.5mm steel SRV Pro Swivel TV Lift with a 24v motor lifts up to 120 lb. The SRV TV Lift includes a 5-year worry-free product warranty - the best warranty offered in this price range, compared to competitors.

Designed For 70-inch TVs and Smaller

The SRV Pro Swivel measures 31 7/8 inches H x 7 inches W x 7 inches D (including the brackets that connect to the back of the TV) and lifts to a full height of 70 7/8 inches in seconds with a lift capacity of 120 pounds. Designed to fit flat screen televisions and monitors up to 70 inches (diagonal measurement).

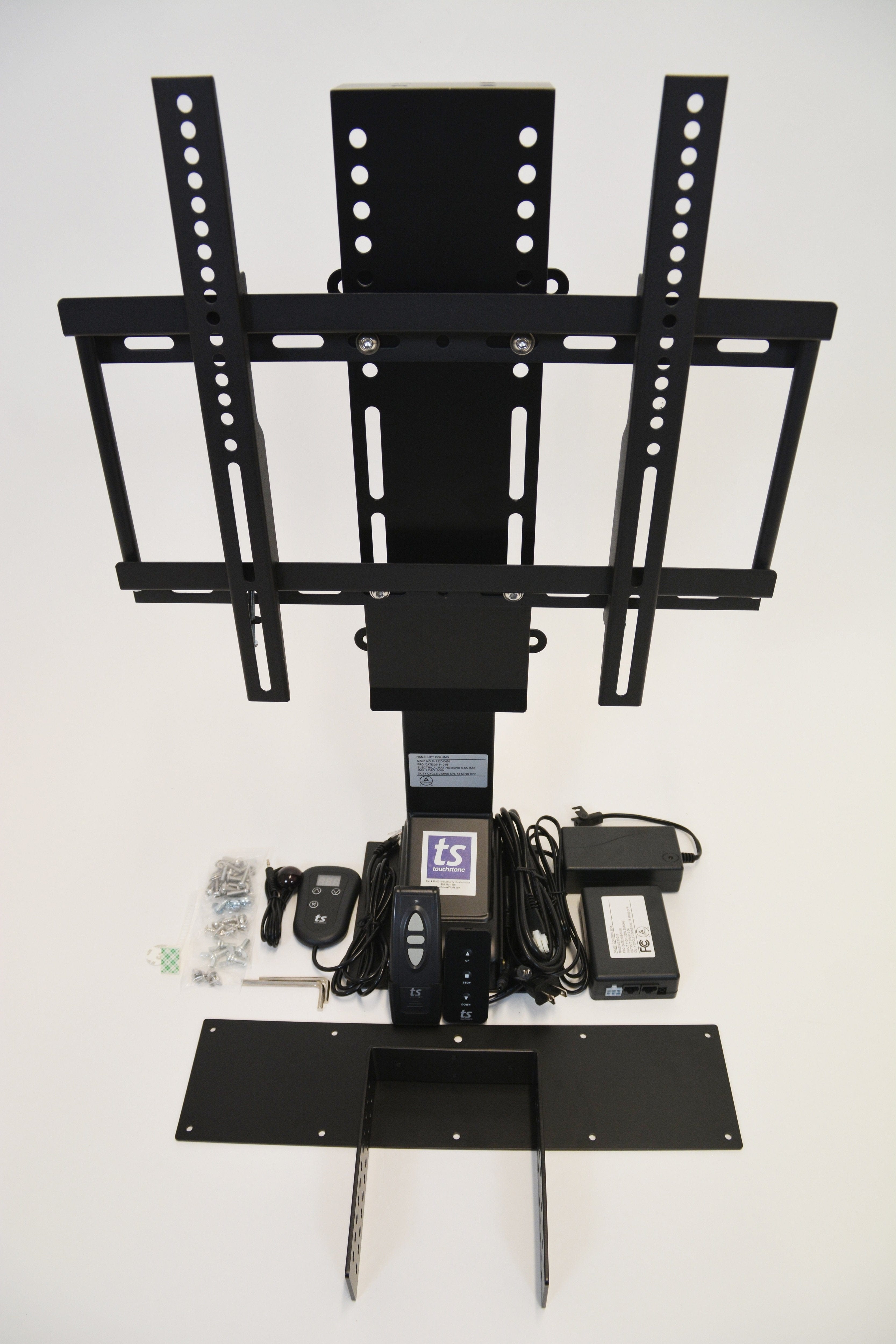

Universal Quick Connect System

The SRV Pro TV Lift includes Touchstone's Universal Quick Connect system. This universal hardware kit makes it easy to install any flat screen TV in minutes. The Touchstone Universal Quick Connect System includes compatible bolts and machine screws to fit most TV brands and models. With the right hardware for your TV, the SRV Pro TV mounting bracket securely locks your TV in place.

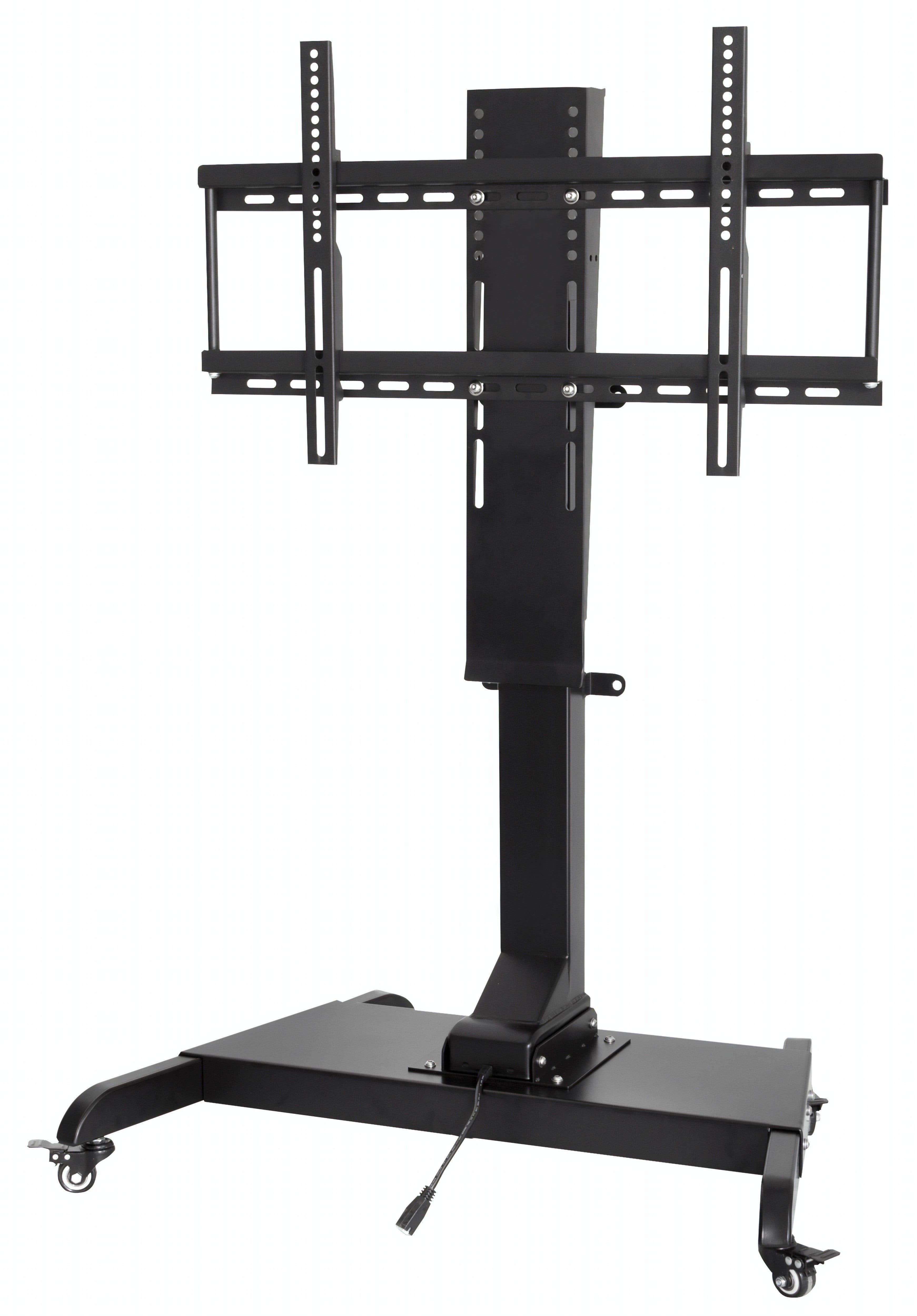

Optional Rolling Cart Base Adds Mobility

The SRV Rolling Cart option adds a rolling cart base to the SRV Pro TV lift, creating a movable and adjustable TV stand for conference rooms, classrooms and offices. For outdoor entertainment, the rolling cart base makes it easy to wheel your TV outside temporarily. The study heavy duty 1.5mm steel base includes four 360-degree swivel locking wheels and a digital display wired remote, which is a handy alternative to the remote control.

How the SRV Pro Swivel Compares to the Valueline TV Lift

Available exclusively at Amazon, the Touchstone Valueline 30010 TV Lift offers many of the same features as the SRV Pro Swivel 32920. The SRV series adds advanced technology including IR technology and a longer 5-year warranty.

Specifications

Specifications

Documents

Specifications

  • Lift raises to the full height of 70 7/8 inches
  • Fully depressed measures 31 7/8 inches H x 7 inches W x 7 inches D (Including TV mount brackets, does not include TV depth)
  • Holds televisions up to 120 lb.
  • Durable Steel Construction with 24 V Motor makes operation quiet and reliable
  • Universal Quick Connect system for mounting TV to lift is easy to use and install
  • Hardware kit includes all necessary bolts and screws and is compatible with most flat panel TV in the market today
  • Includes wireless RF and IR remote control and a wired handset control
  • Supports TVs with VESA mounting patterns up to 600mm wide by 400mm high
  • Safety stop while raising and lowering
  • Soft start and stop
  • Lift not designed for drop down use

Dimensions

  • Lift Dimensions: 31 7/8 inches H x 7 inches D

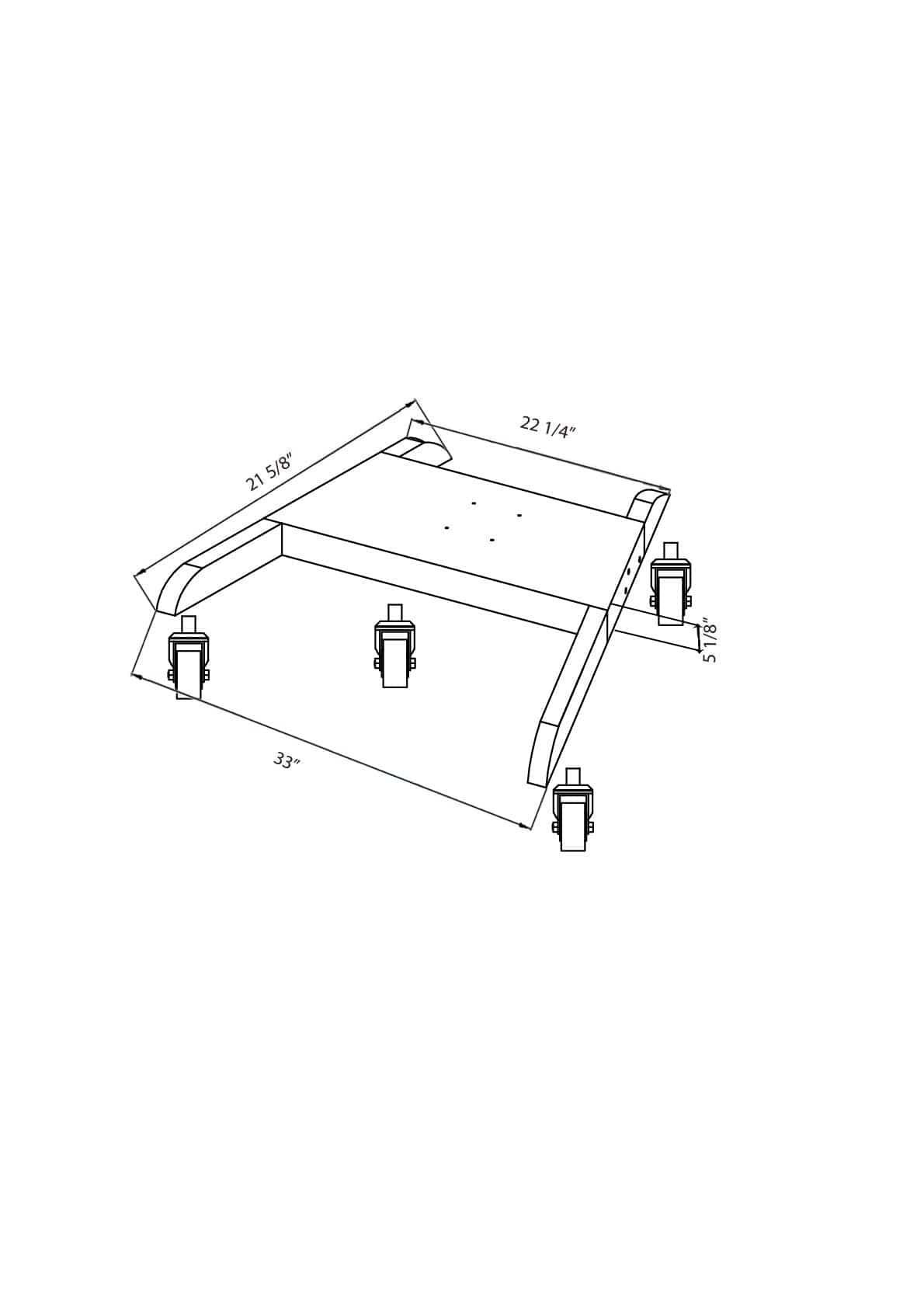

Optional Add On SRV Rolling Cart Specifications:

  • Product weight: 22 lb.
  • Shipping weight: 25 lb.
  • Product Dimensions: 21.6 x 22.25 x 33.0 x 5.1 inches

Dimensional Drawing

Touchstone SRV Pro 33920 360-Degree Swivel TV Lift Product Dimensional Drawing
